2024 Fives Cinetic RapidCharge Coolant Fluid Fill Machine NEW SPECS UPON REQUEST

Documentation available: We have a 10-page Fives/Digitek specification and electrical layout document for this unit. Key pages include panel layout drawings, terminal block references, and a component/part list. Due to eBay link policy, external document links are not included in the listing, but additional spec sheet documents can be provided through eBay messages upon request.

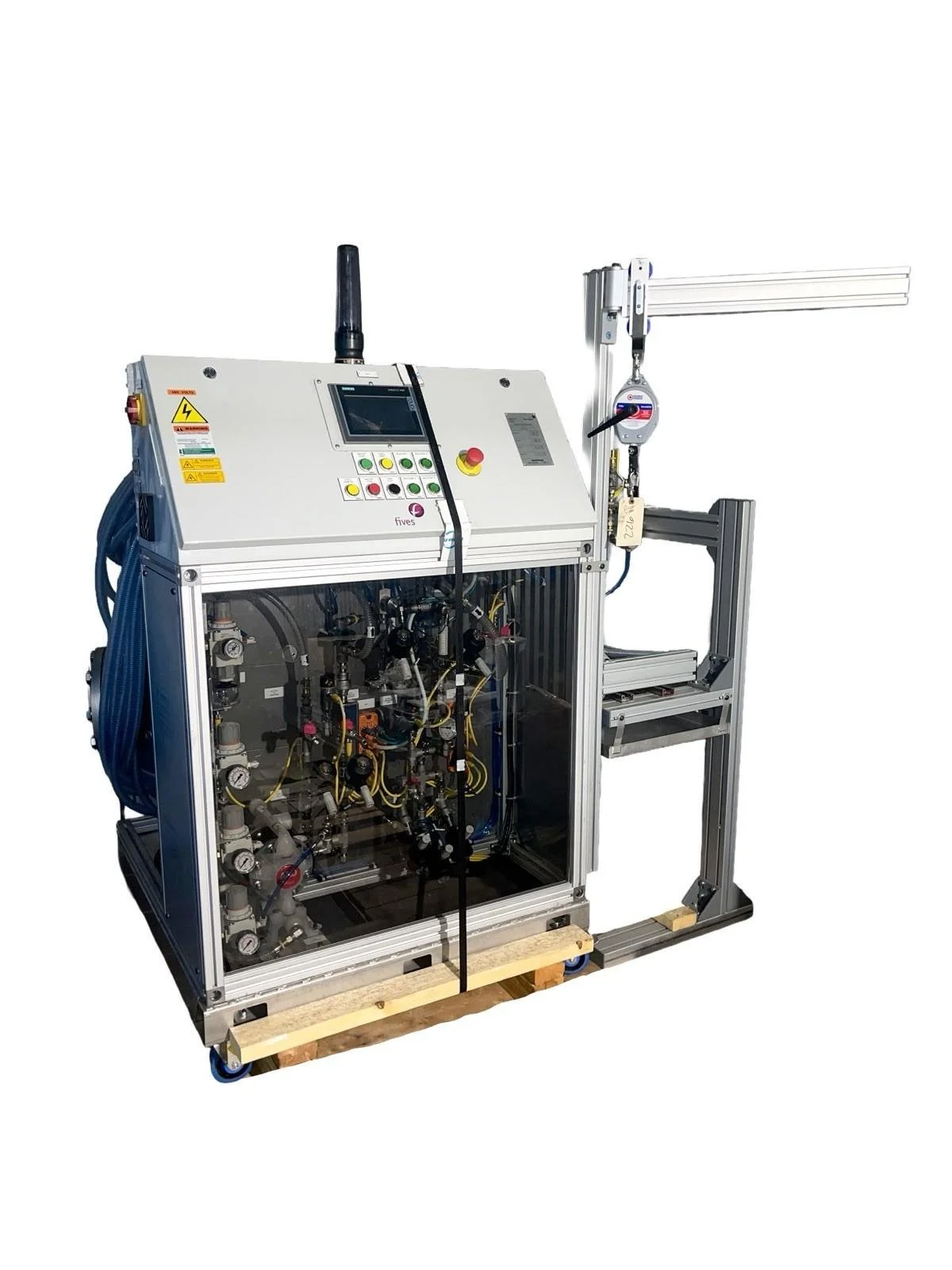

Offered for sale is a 2024 Fives Cinetic RapidCharge coolant fluid fill machine manufactured by Fives Filling & Sealing (Farmington Hills, MI). According to the source, this unit was factory-tested by Fives but never placed into production, making it an excellent example of unused OEM surplus equipment.

This system is designed for vacuum evacuation and coolant charging of automotive cooling systems, removing air and moisture before filling coolant to ensure bubble-free, accurate system fills. These machines are commonly used on automotive assembly lines, engine test facilities, and industrial fluid handling systems.

⸻

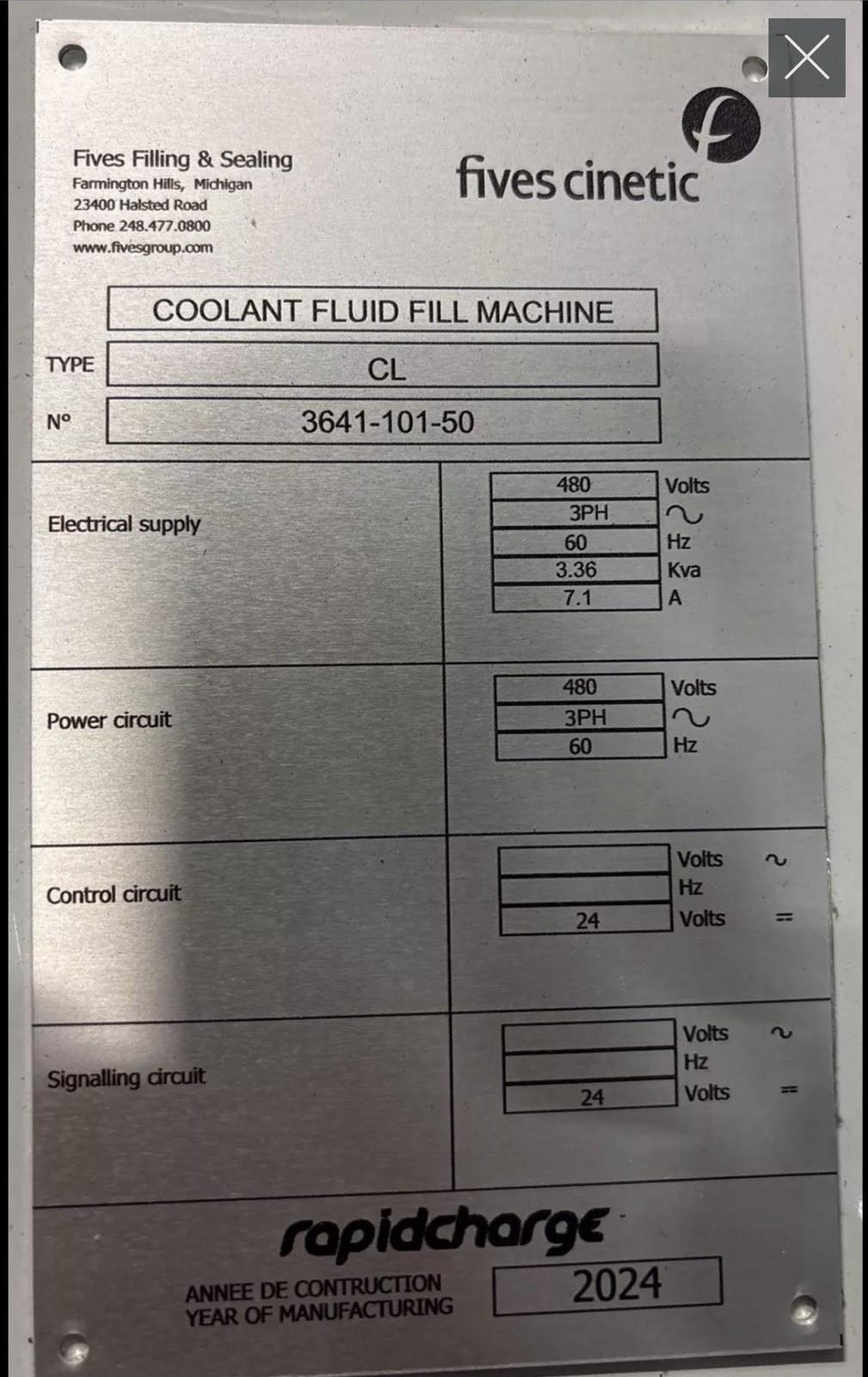

Manufacturer Information

Manufacturer: Fives Filling & Sealing (Fives Cinetic)

Model: RapidCharge Coolant Fill Machine

Type: CL

Serial Number: 3641-101-50

Year of Manufacture: 2024

Manufactured in: Farmington Hills, Michigan, USA

⸻

Electrical Specifications

Voltage: 480V

Phase: 3 Phase

Frequency: 60 Hz

Power Consumption: 3.36 kVA

Current Draw: 7.1 A

Control / signaling circuits: 24V

Power circuit: 480V, 3PH, 60 Hz

⸻

Major Components

Vacuum System

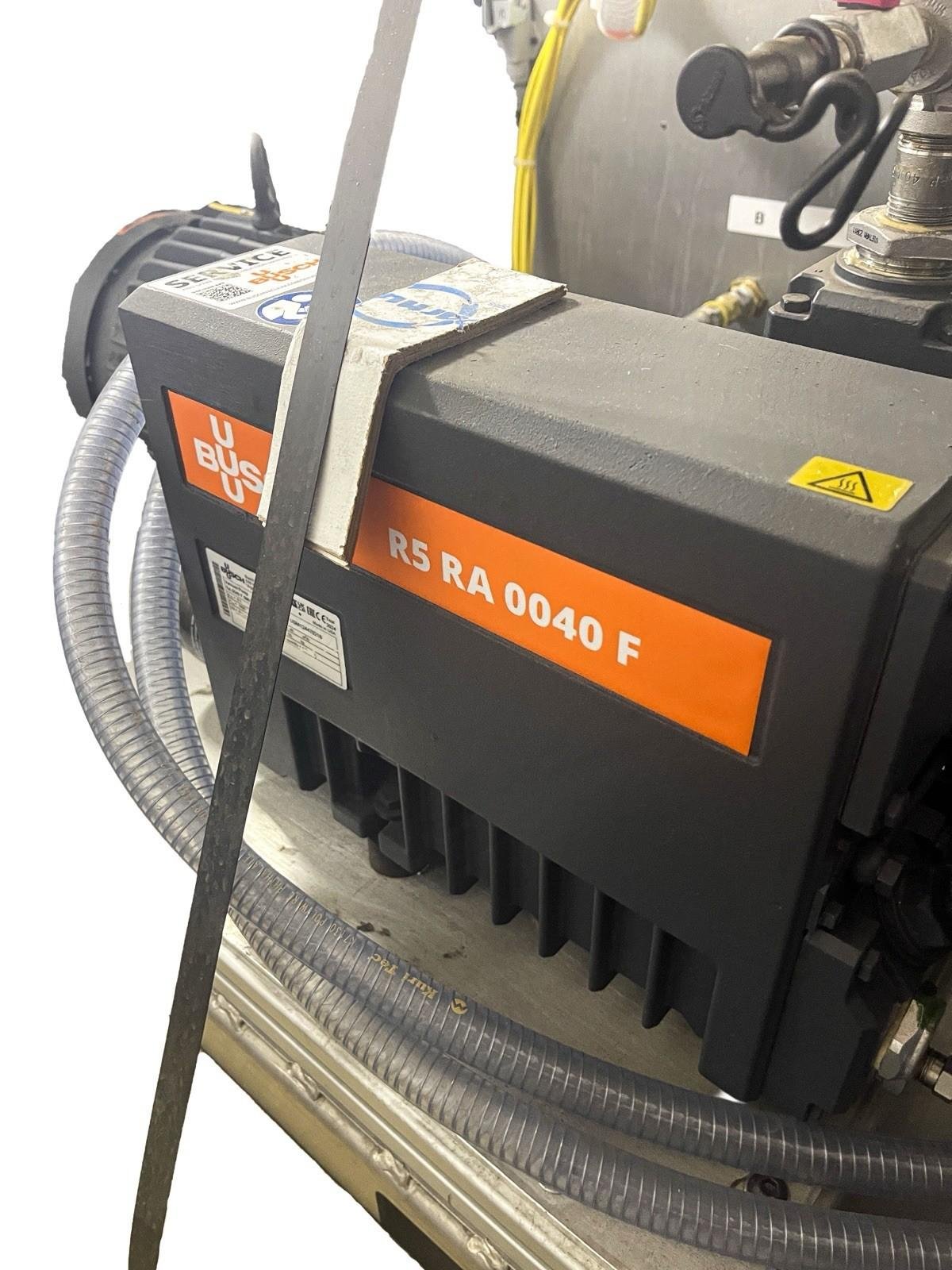

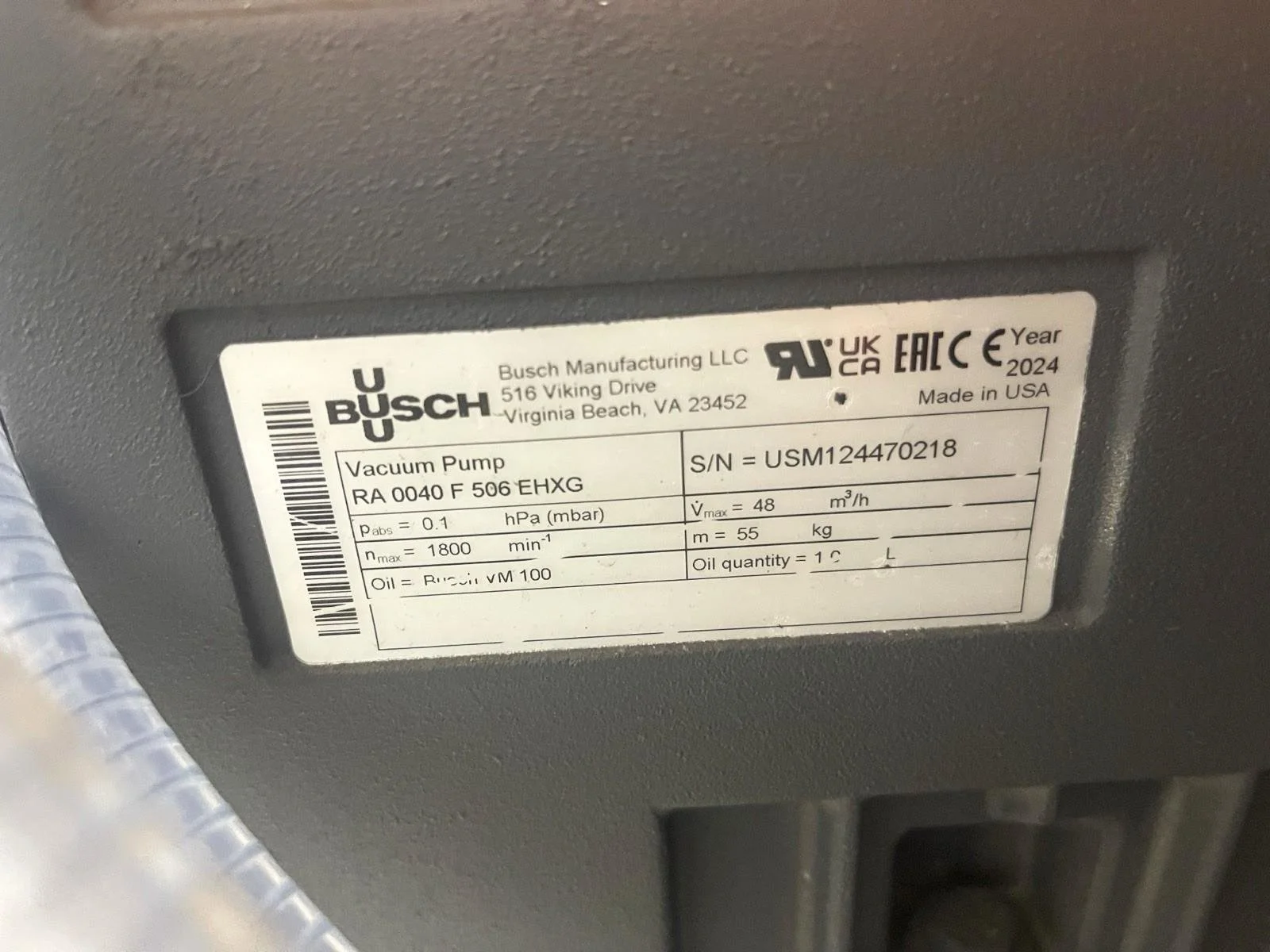

• Busch R5 RA 0040 F 506 EHXG rotary vane vacuum pump

• 48 m³/h vacuum capacity

• Ultimate pressure: 0.1 hPa

• Max speed: 1800 RPM

• Oil-lubricated (Busch VM100 oil)

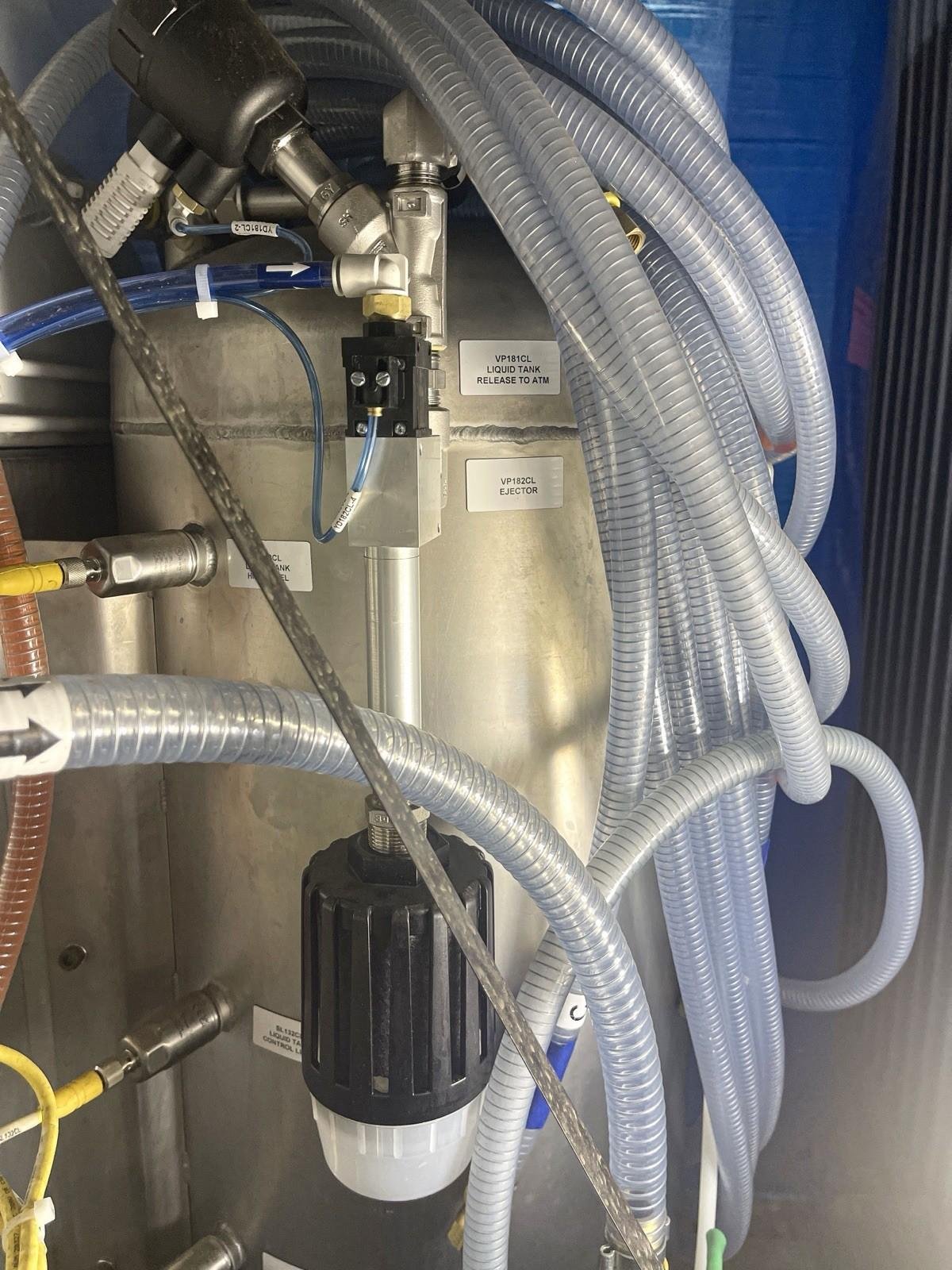

Additional vacuum components include:

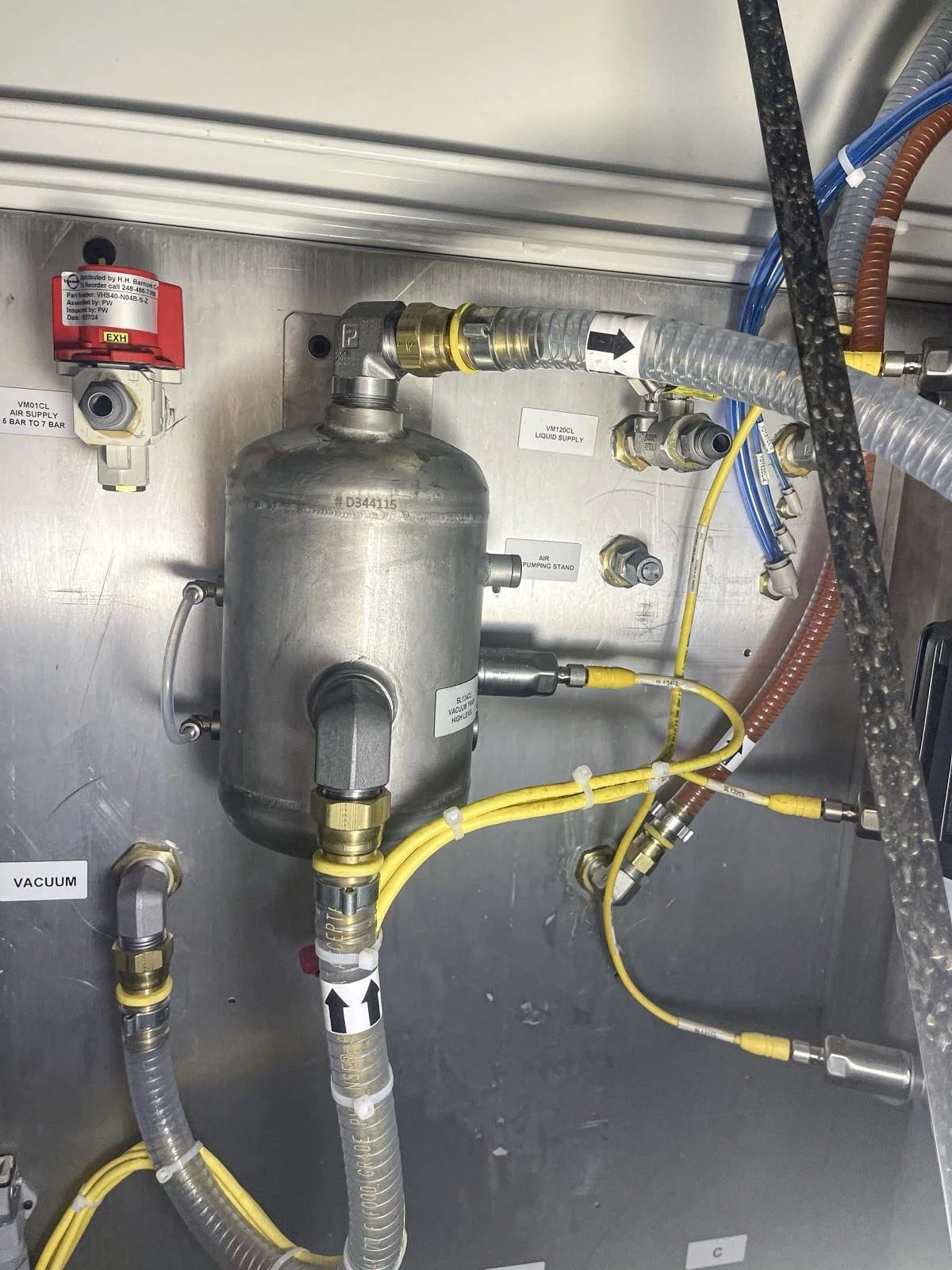

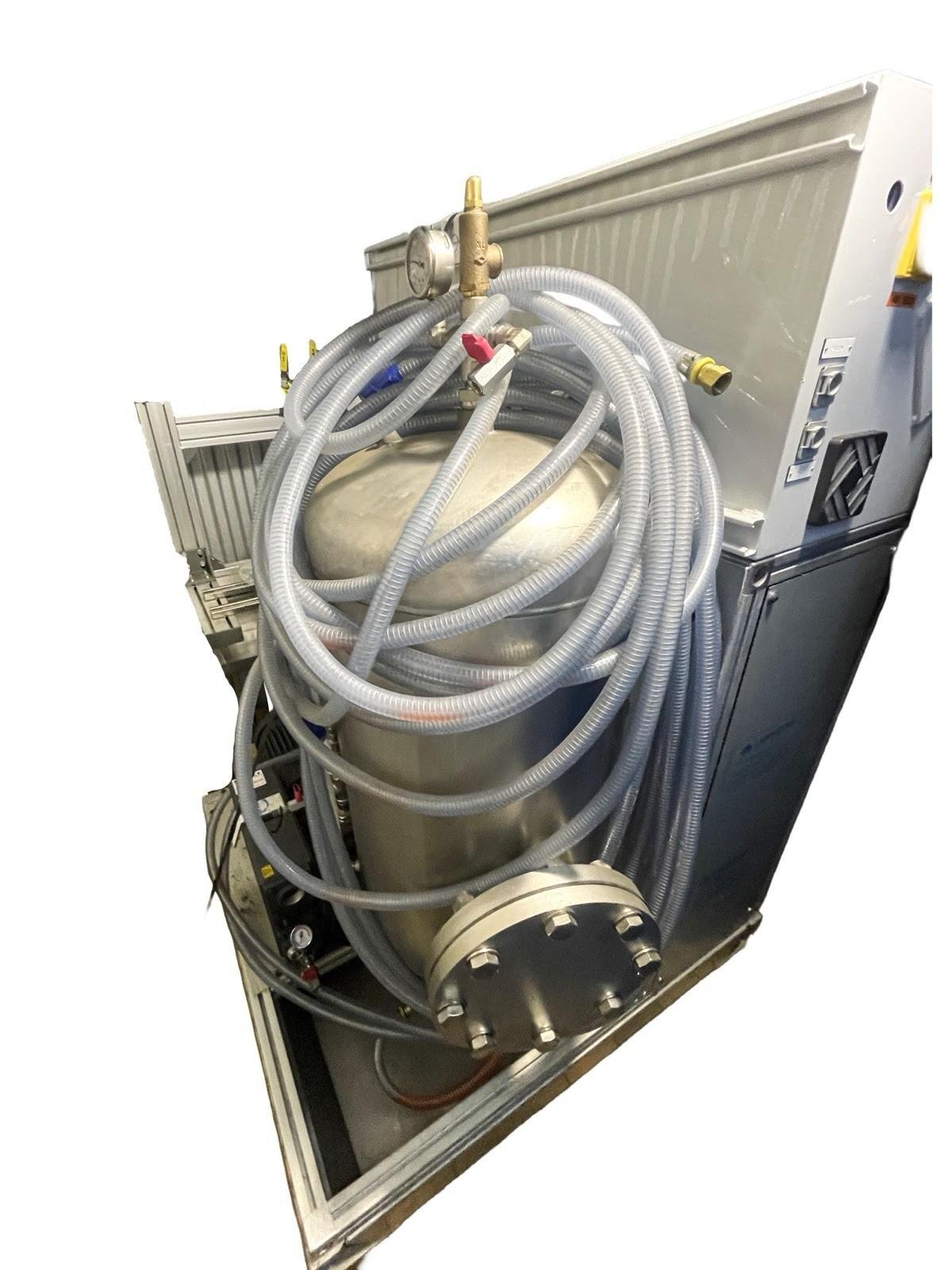

• Stainless vacuum tank

• Vacuum ejector assembly

• Liquid release valve system

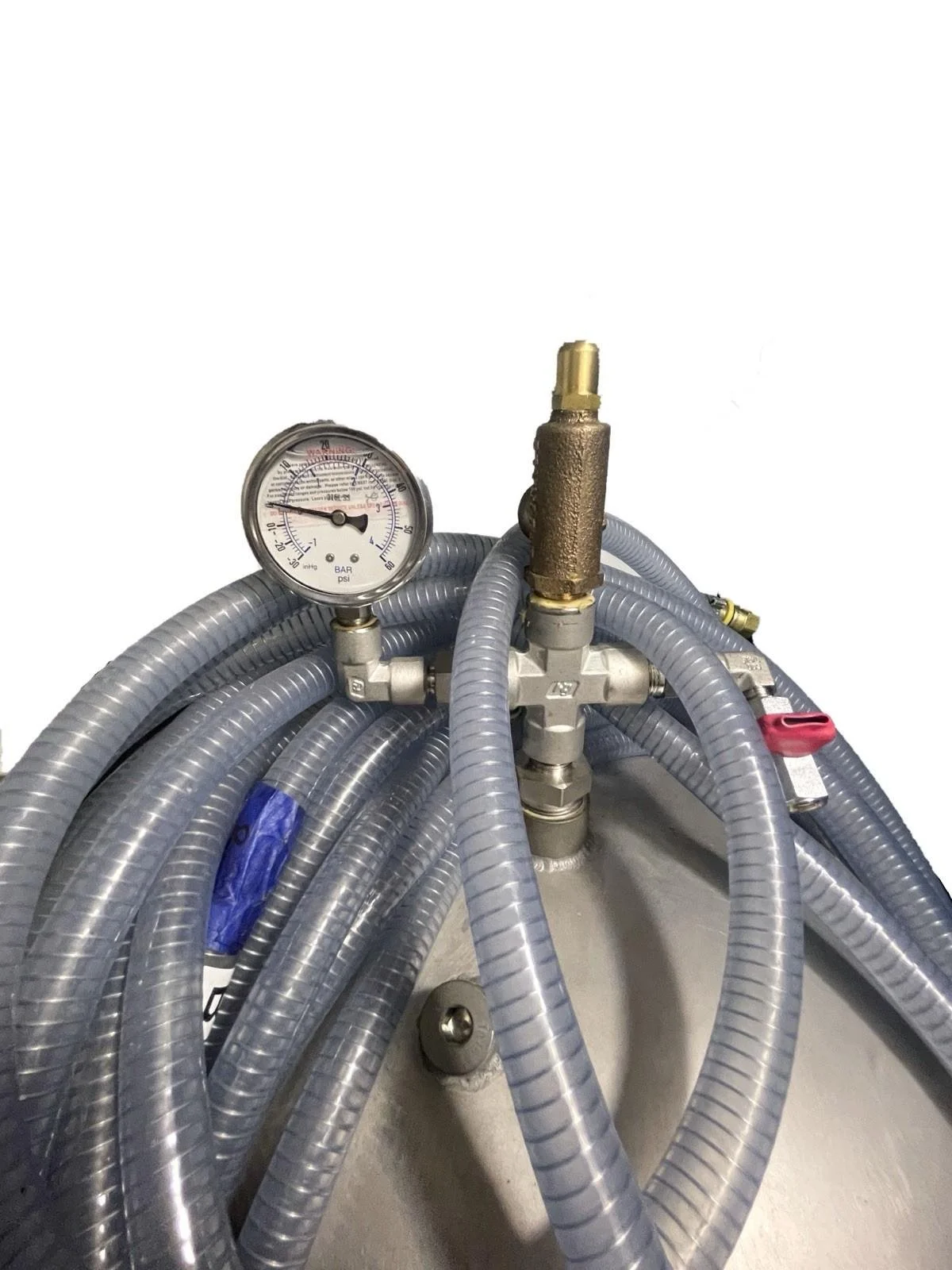

• Pressure gauges and regulators

• Pneumatic control valves

⸻

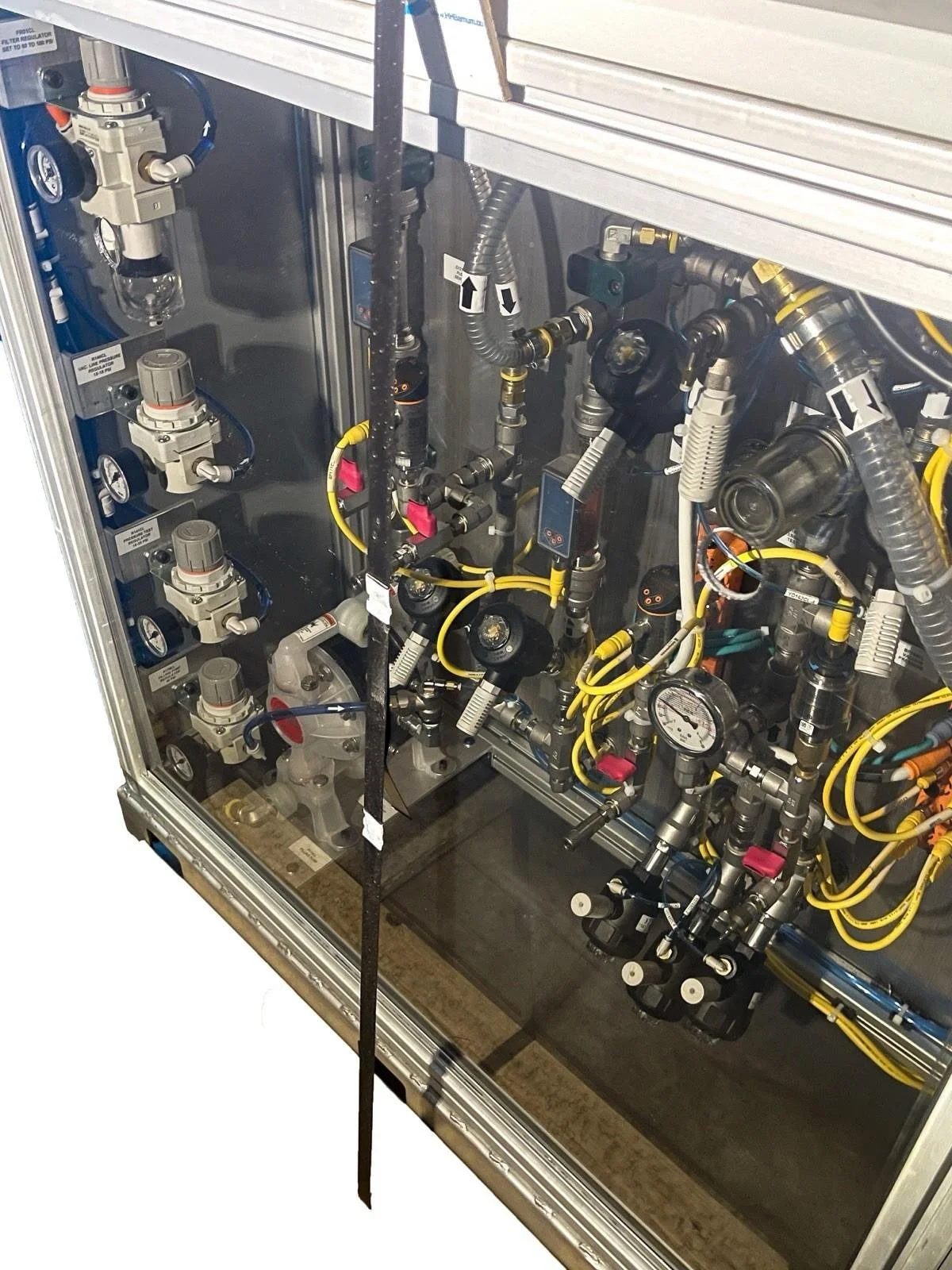

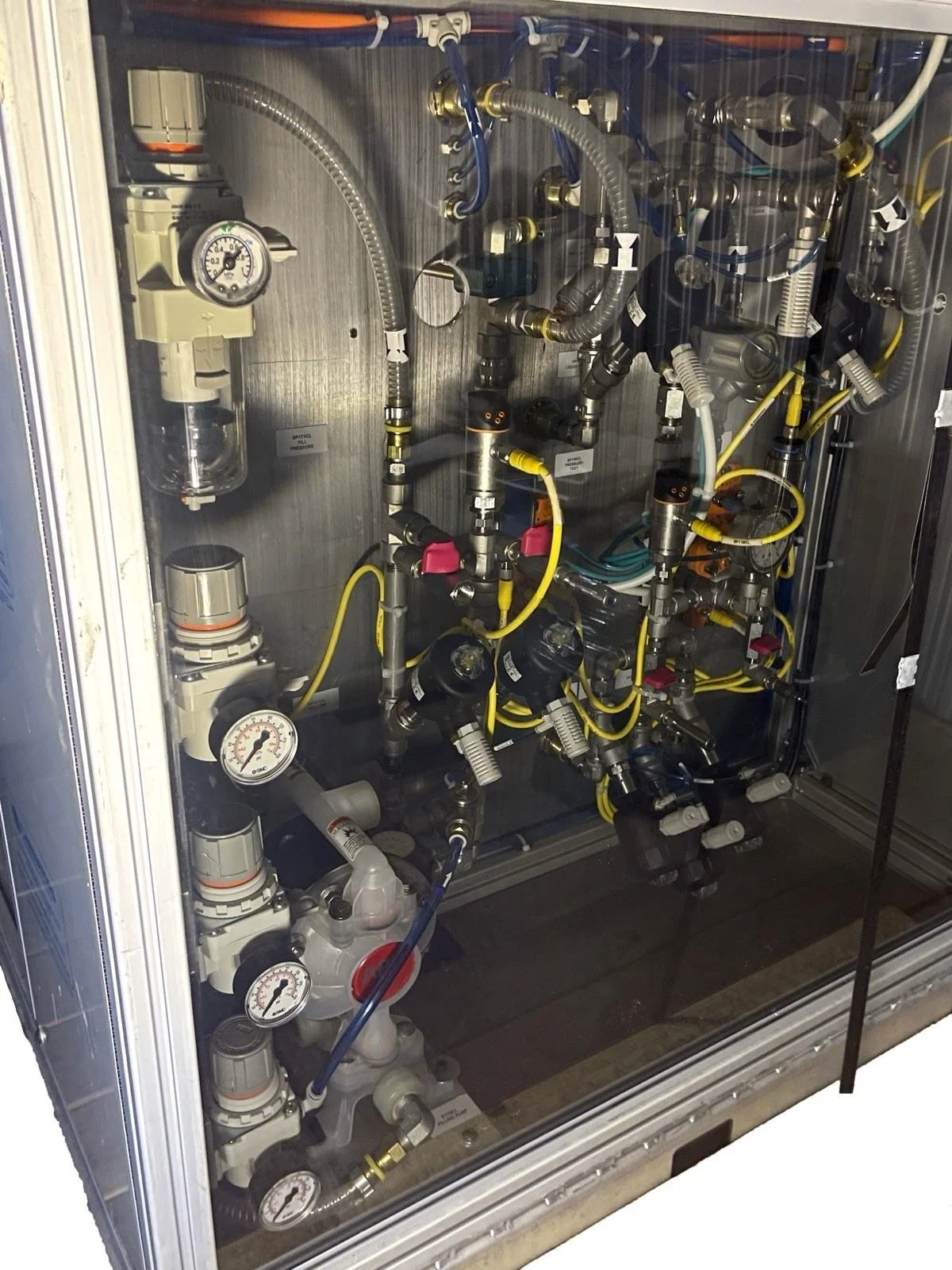

Fluid Handling System

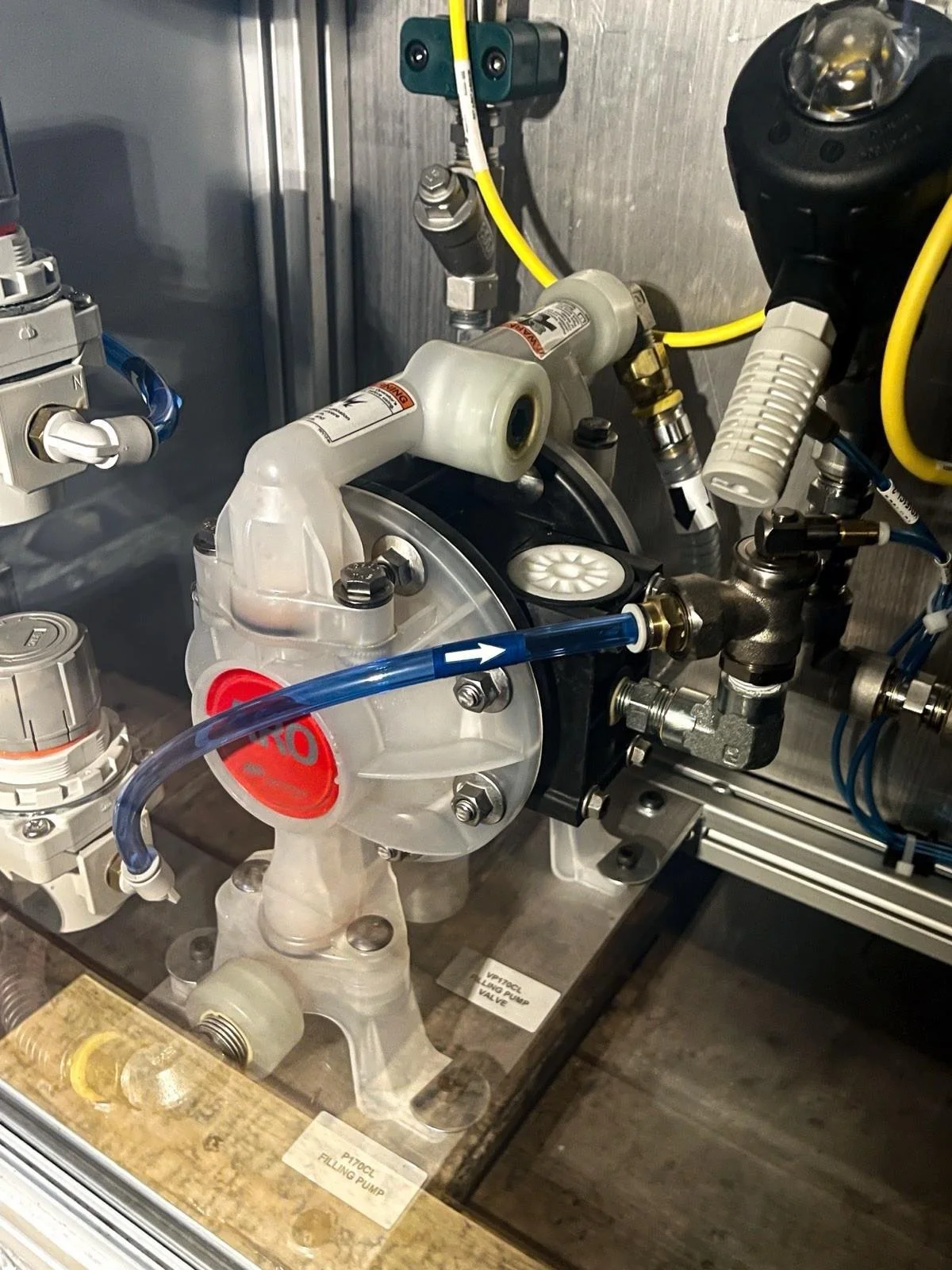

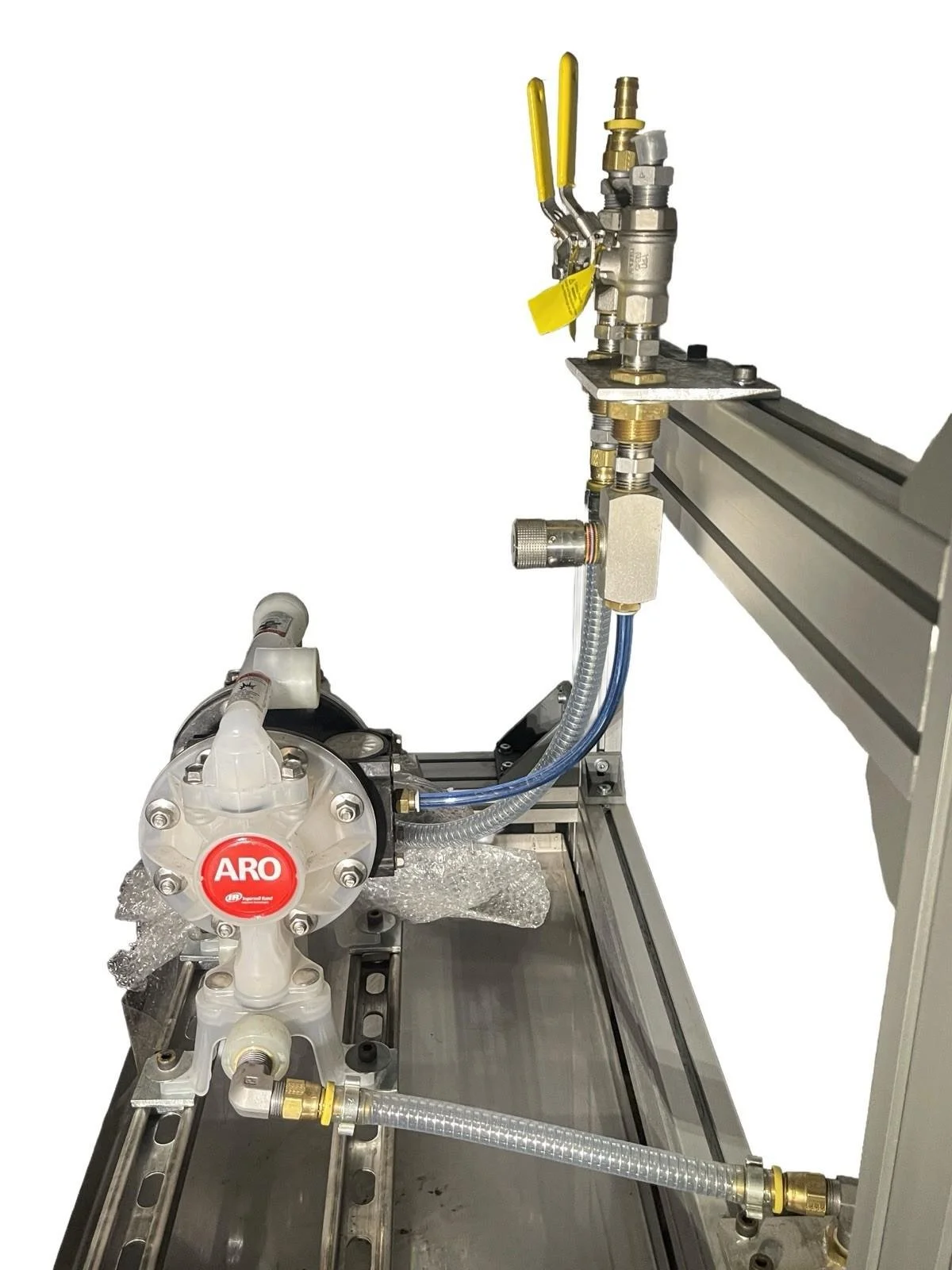

• (2) ARO pneumatic diaphragm pumps (Ingersoll Rand)

• Stainless steel coolant reservoir

• Clear fluid tubing and fittings

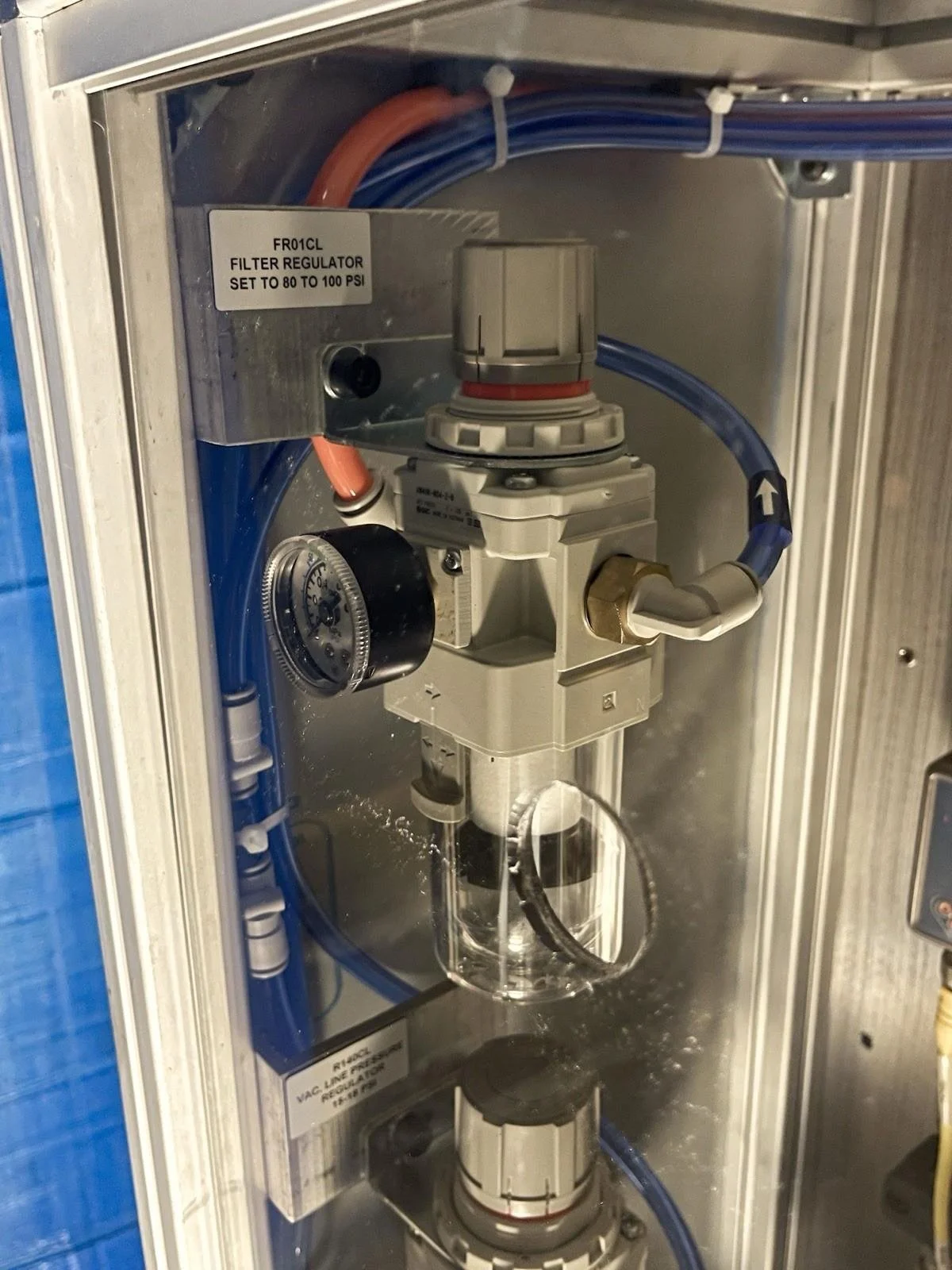

• Pneumatic regulators and filters

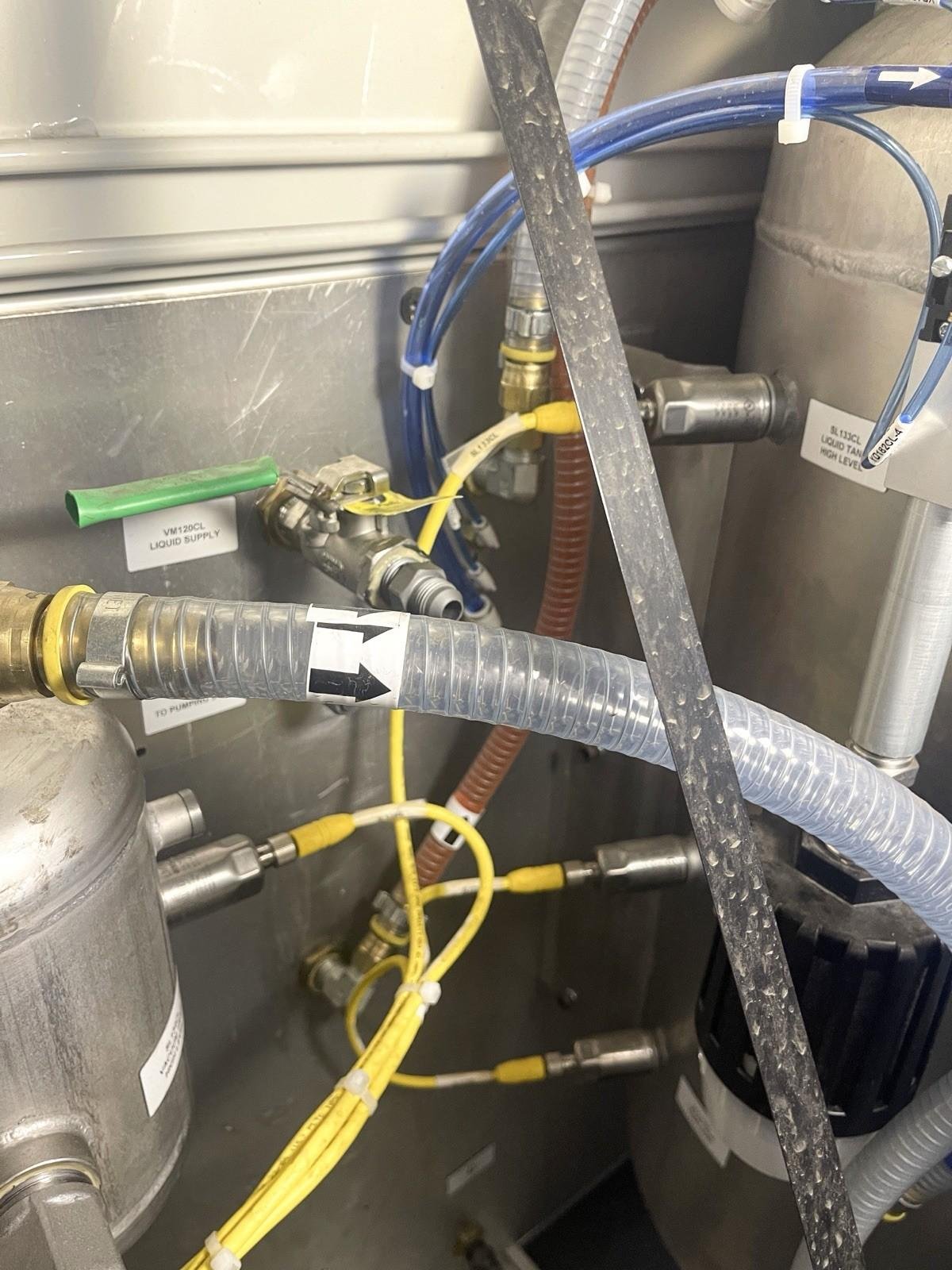

• Apollo ball valves

• Air supply regulators (5–7 bar)

⸻

Motor Drive

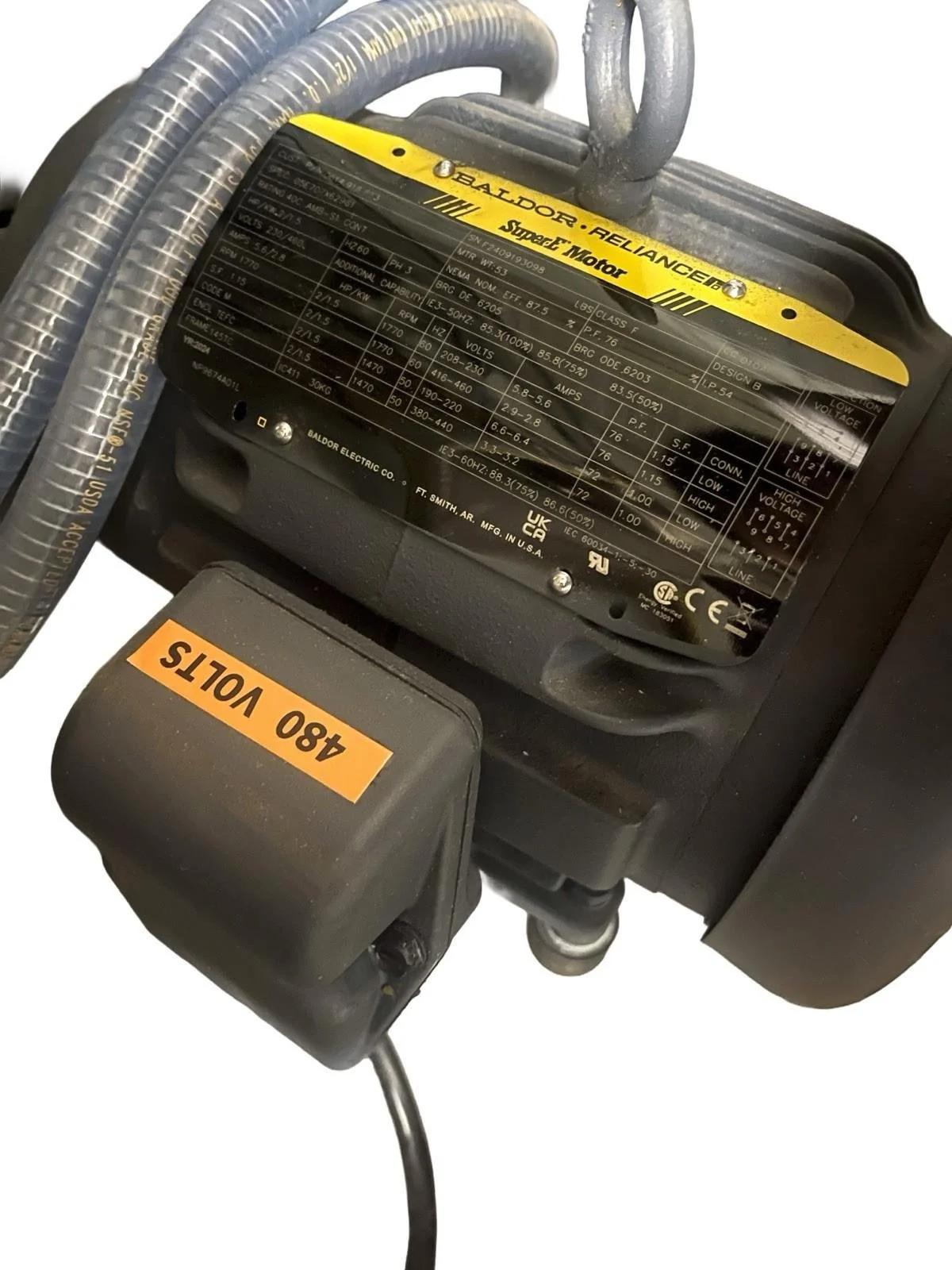

Baldor Reliance Super-E Motor

• 2 / 1.5 HP

• 1770 / 1470 RPM

• 230 / 460V adaptable

• 3 Phase

• TEFC enclosure

⸻

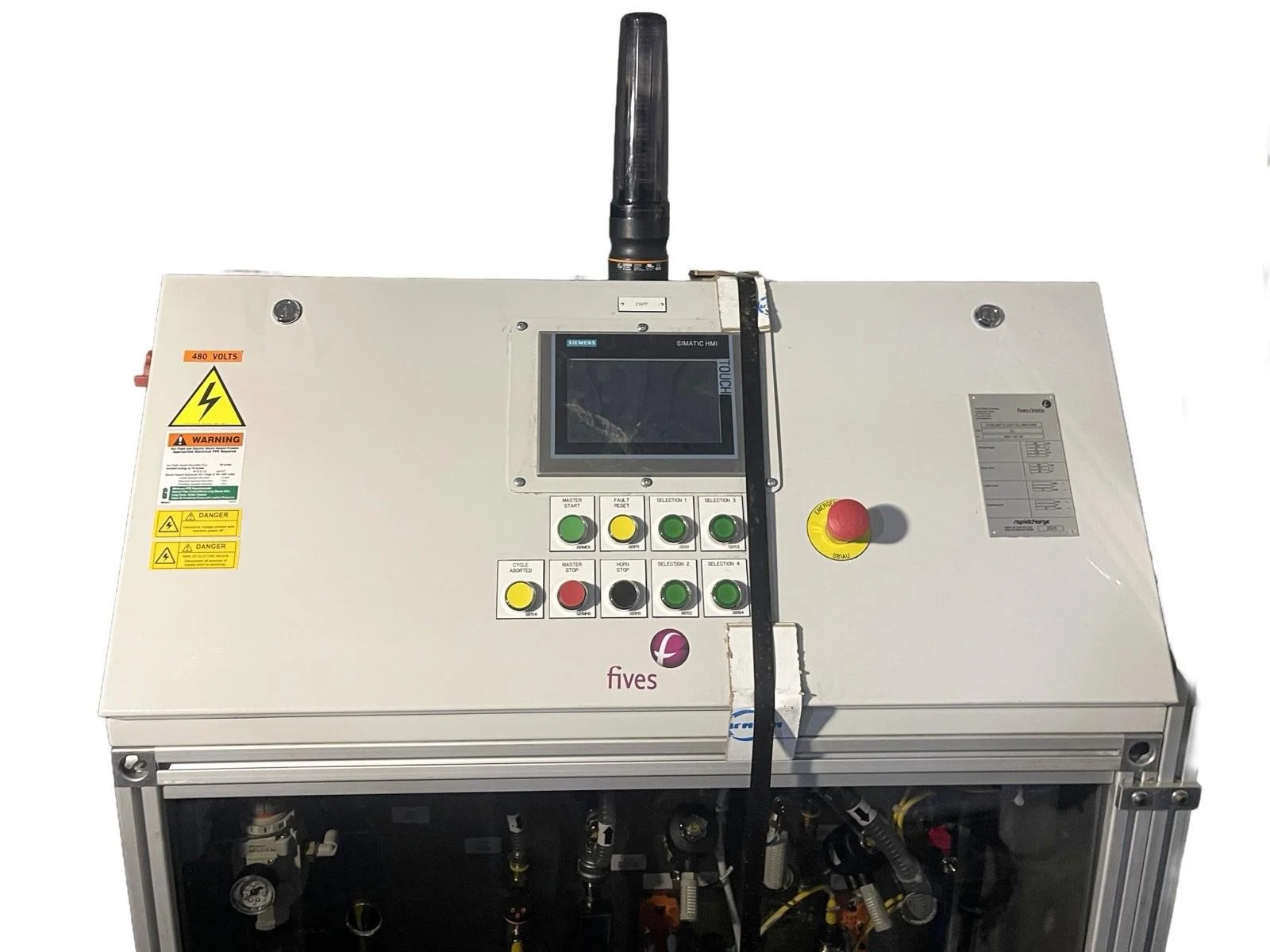

Controls & Automation

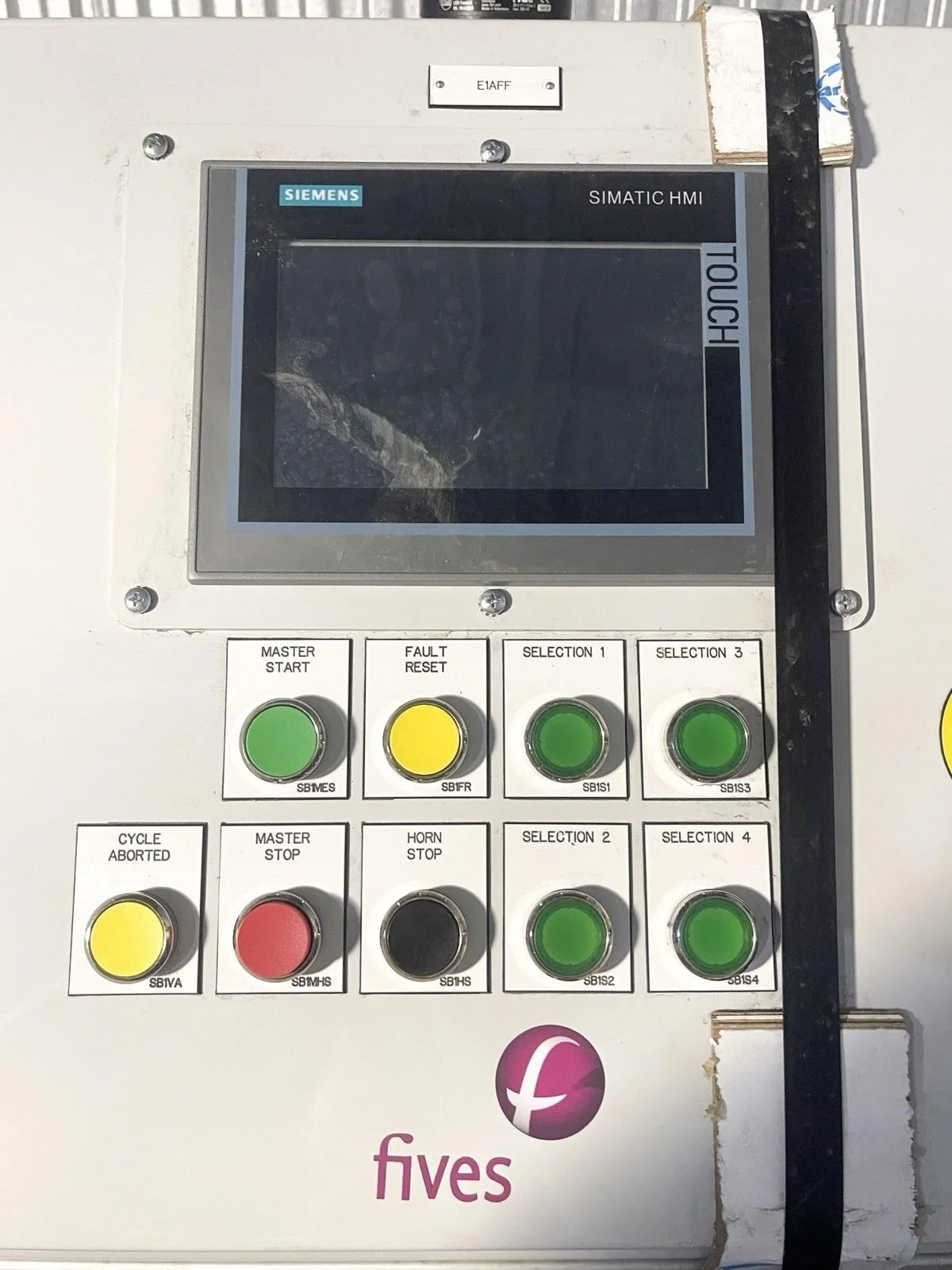

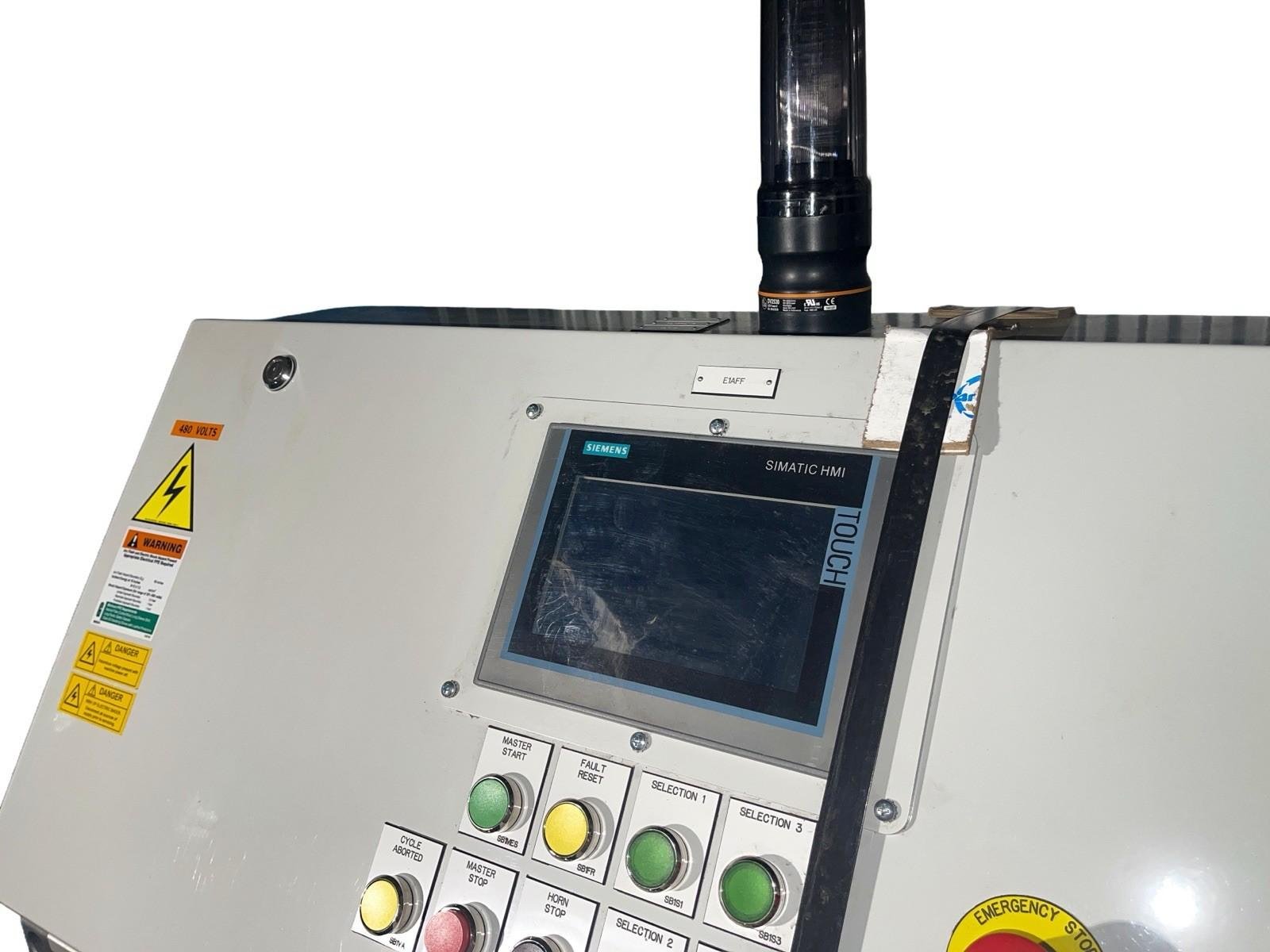

• Siemens SIMATIC HMI touchscreen control panel

• Master Start / Stop controls

• Cycle Abort

• Fault Reset

• Horn Stop

• Selection modes 1–4

• Emergency stop button

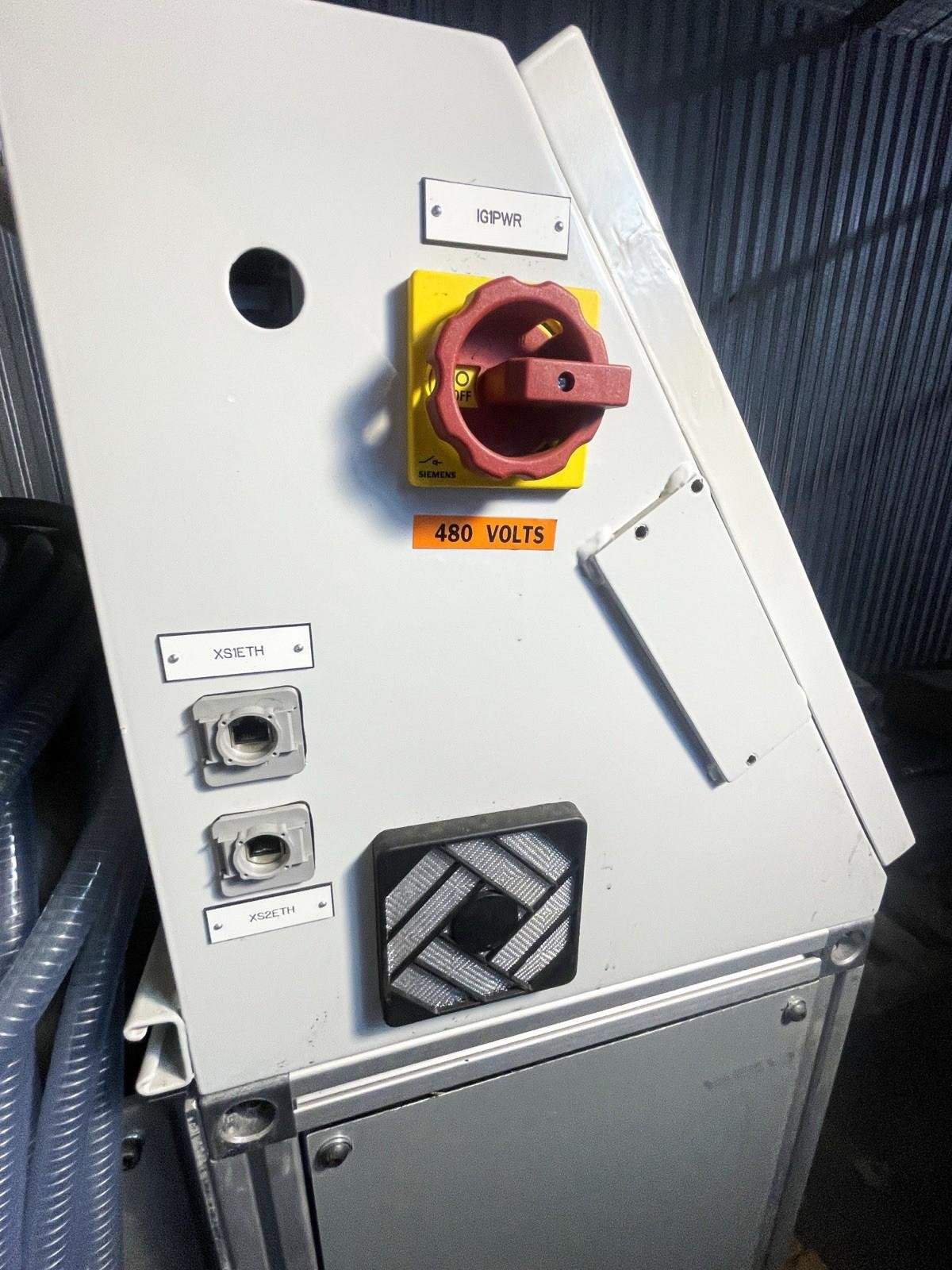

Connectivity:

• Ethernet ports for integration

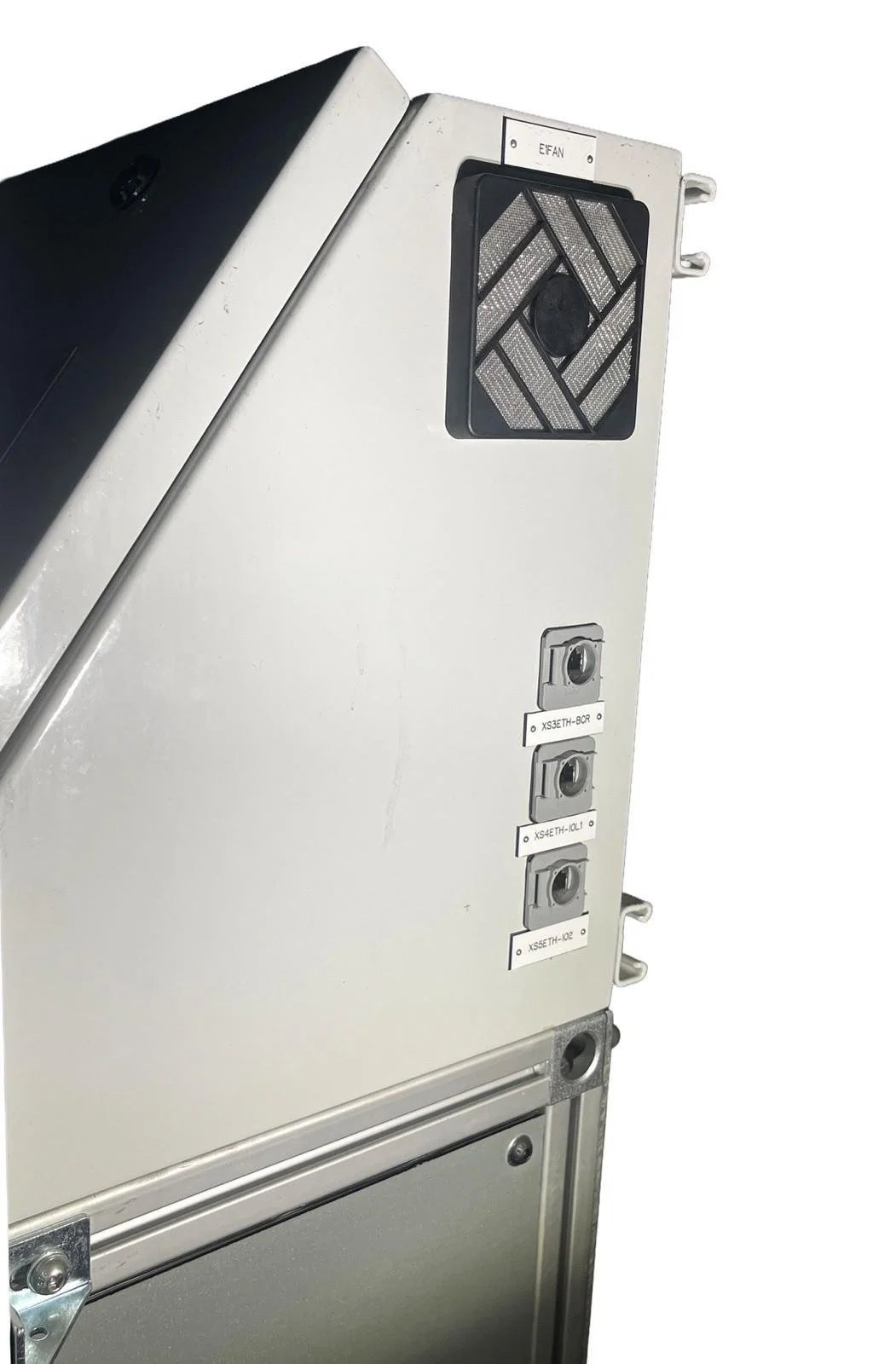

• Industrial control cabinet with ventilation

⸻

Additional Equipment

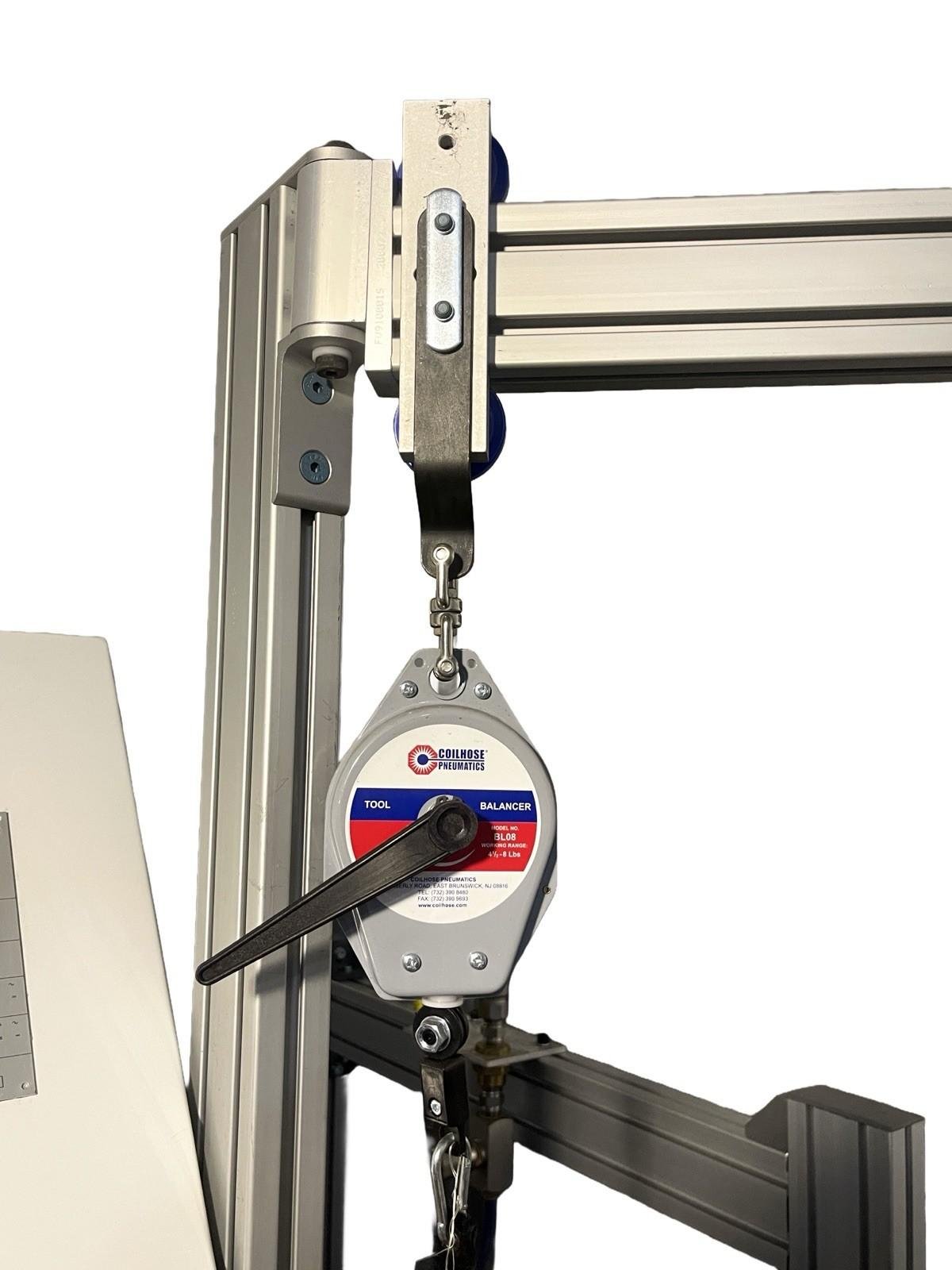

• CoilHose Pneumatics tool balancer (Model BLO8 – 4 to 8 lb range)

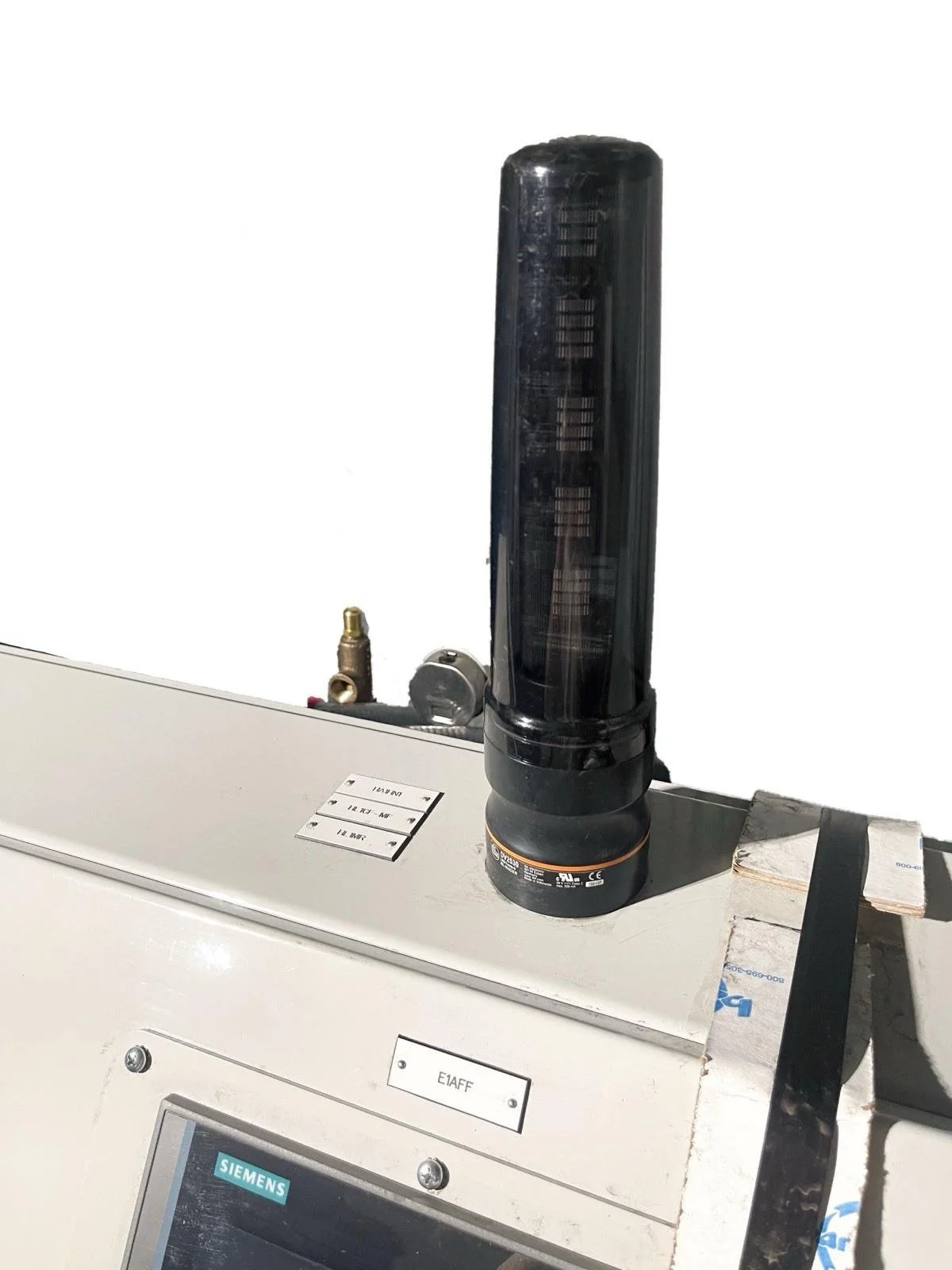

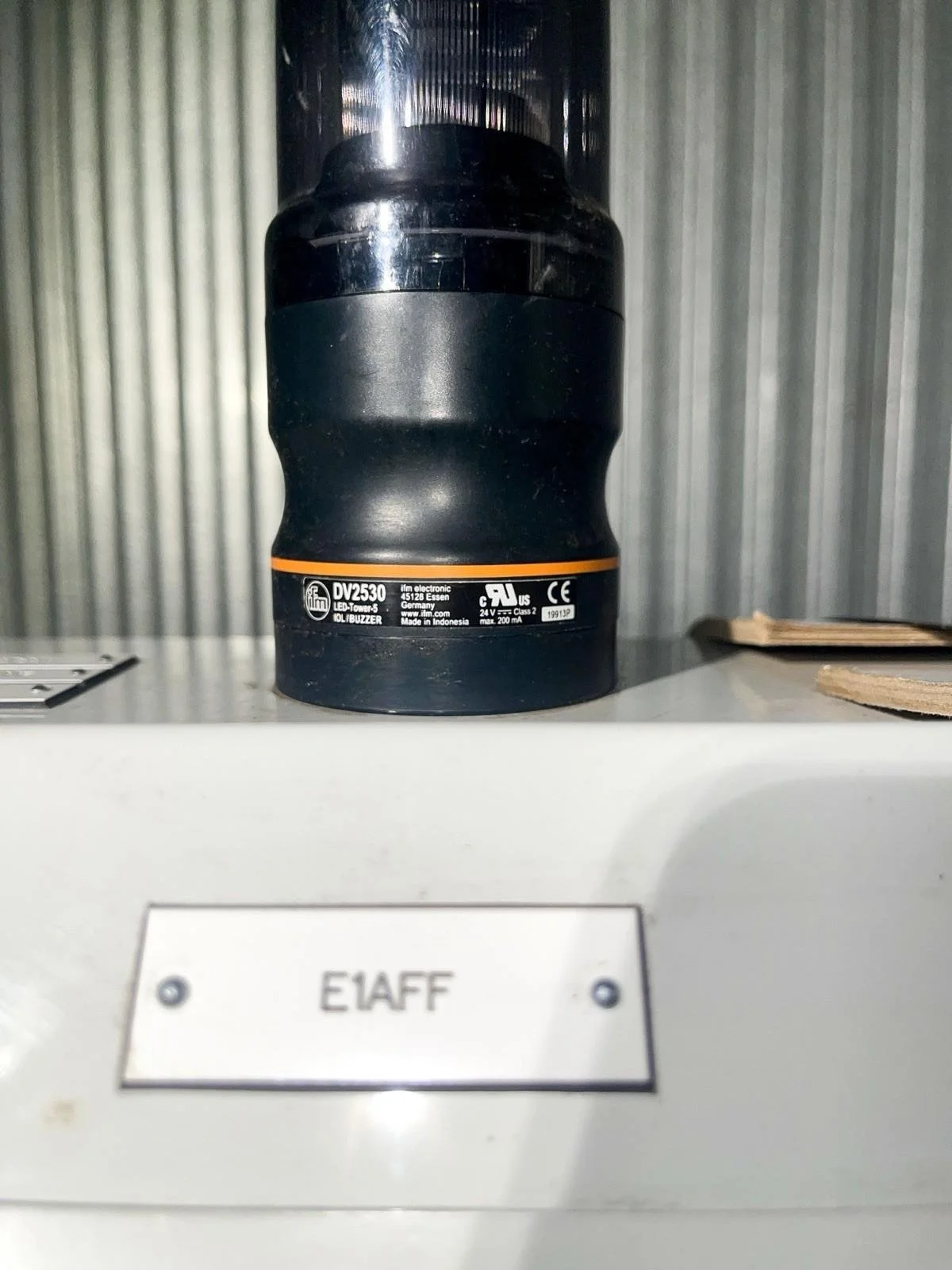

• DV2530 LED tower light / status beacon

• Pneumatic regulators and gauges

• Aluminum frame enclosure

• Industrial casters for mobility

⸻

Applications

This system is suitable for:

• Automotive coolant filling stations

• Engine cooling system evacuation and charge

• Radiator manufacturing lines

• Industrial liquid filling and dosing systems

• Cooling system service operations

• Automated production line fluid handling

⸻

Condition

This unit appears unused and extremely clean.

• Reportedly factory tested only

• Never installed into production

• Components show minimal to no wear

All equipment shown in photos is included.

Unit is sold as surplus industrial equipment and may require installation and commissioning by buyer.

⸻

Shipping

Machine is palletized and ready for freight shipment.

Local pickup available in Chicago, Illinois.

Freight shipping available upon request.

⸻
