This is an Eaton Cutler-Hammer 10250T/91000T heavy-duty selector switch assembly, consisting of a 30.5mm oiltight/watertight operator with a 3-position maintained rotary selector and an integrated contact block. It is designed for use in industrial control applications where reliable switching is required.
Zinc die-cast housing with silver contacts including reliability nibs for performance in dry, dusty, or vibrating conditions; includes drainage holes to prevent liquid accumulation in freezing environments.
3-position maintained rotary operation.
2NO contact arrangement with screw terminals.
Rated for IP65 and suitable for NEMA 1, 3R, 4, 4X, 12, 13 enclosures.
Brand: Eaton (formerly Cutler-Hammer)
Model/Catalog No.: 10250T/91000T
Type: Selector Switch with Contact Block
Operator Size: 30.5 mm (1-3/16")
Positions: 3-Position (Maintained)
Knob Style: Black Wing Lever
Contact Type: 2NO (Double Pole)
Voltage Rating: AC: A600 (10A @ 120V, 5A @ 240V, 2A @ 600V); DC: P600 (1.2A @ 125V, 0.22A @ 600V)
Terminal Type: Screw Clamp (Accepts 14-22 AWG wire)
Mounting: Panel Mount (Requires 30.5mm hole)
Operating Temperature: -25°C to 60°C (-13°F to 140°F)
Dimensions: Approximately 2.5" L x 1.9" W x 2.2" H (including operator and block)
Weight: About 0.2 lbs
Standards: UL Listed, CSA Certified, CE Marked, IEC 60947-5-1 Compliant

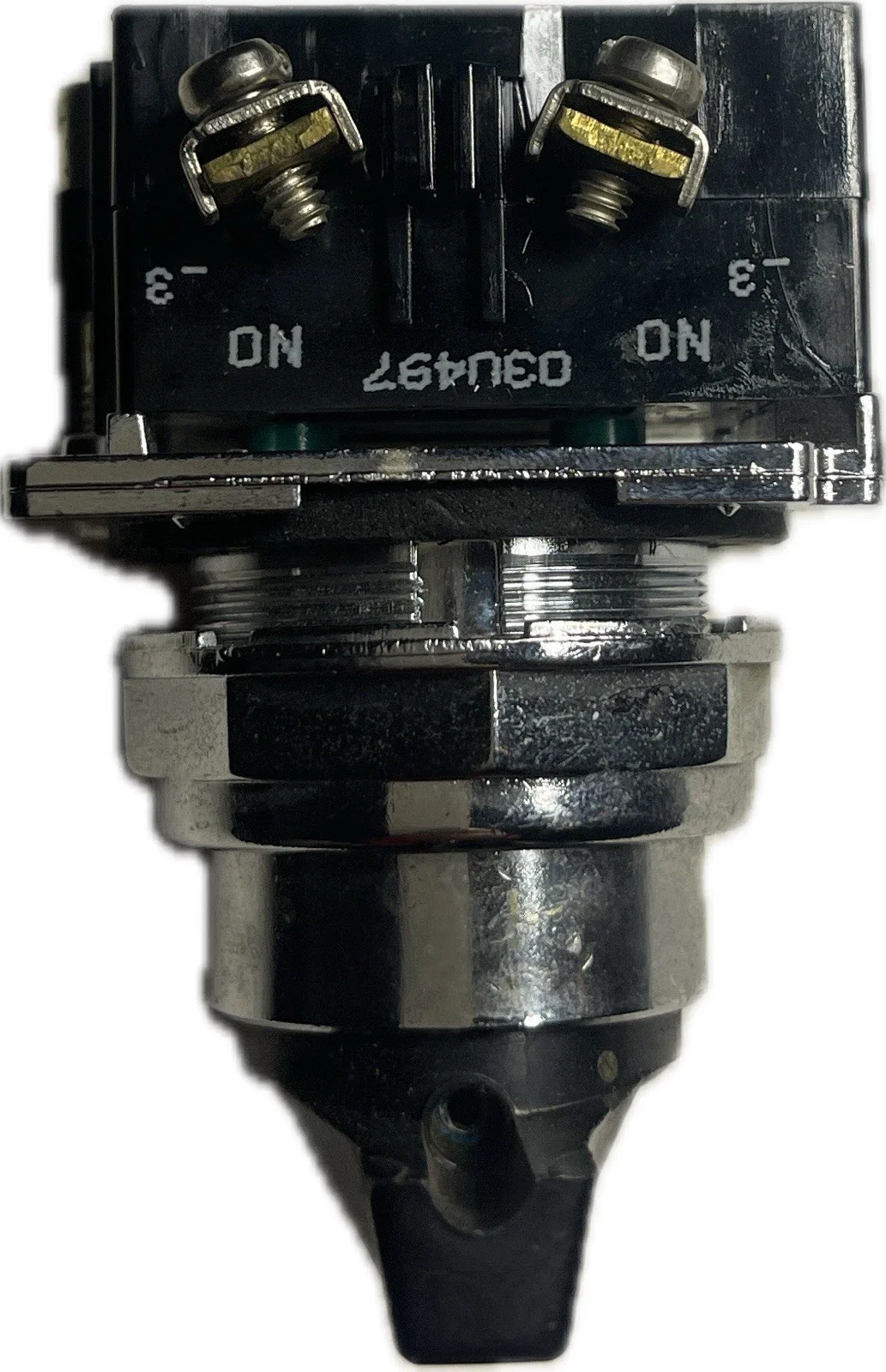

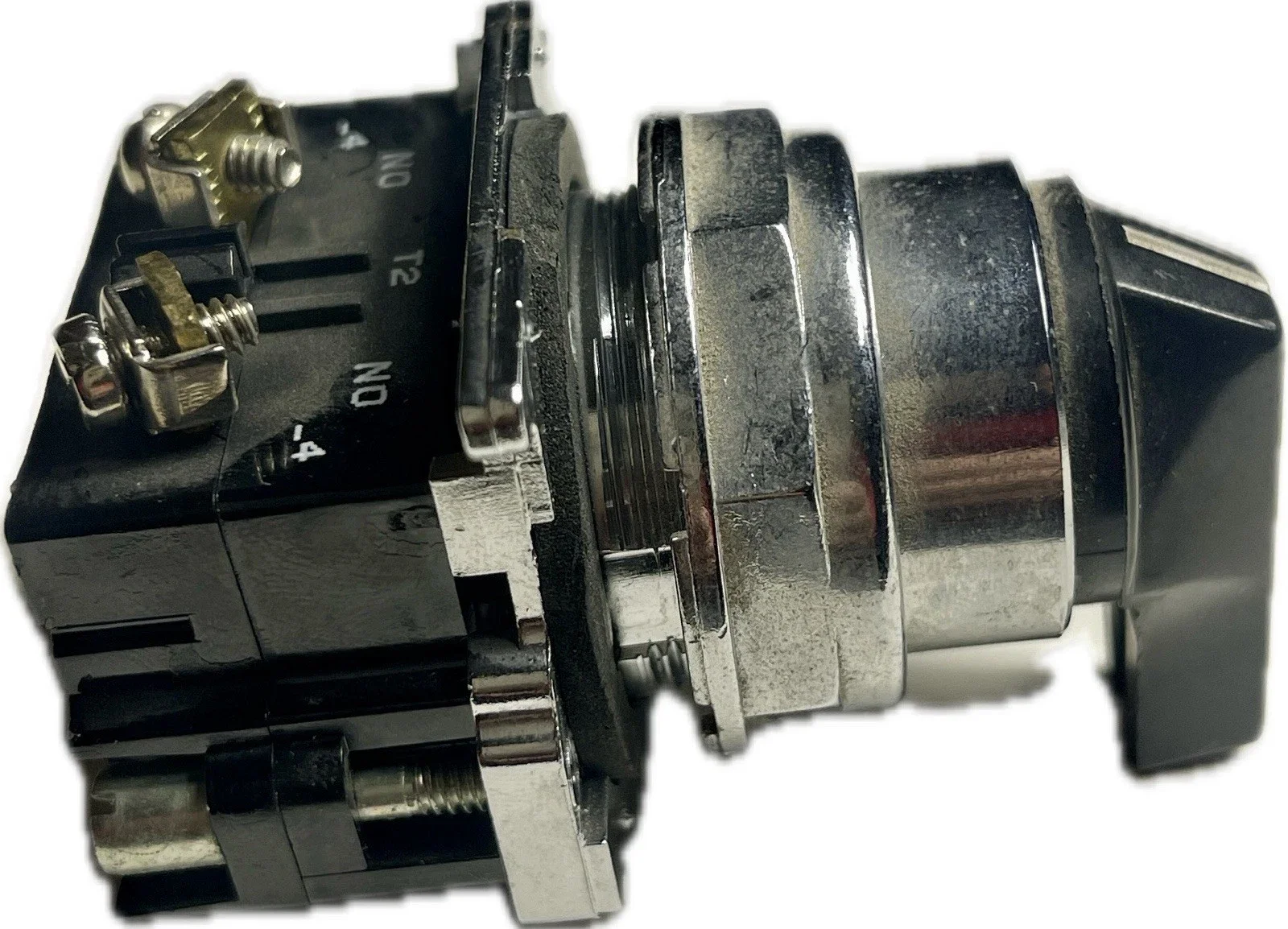

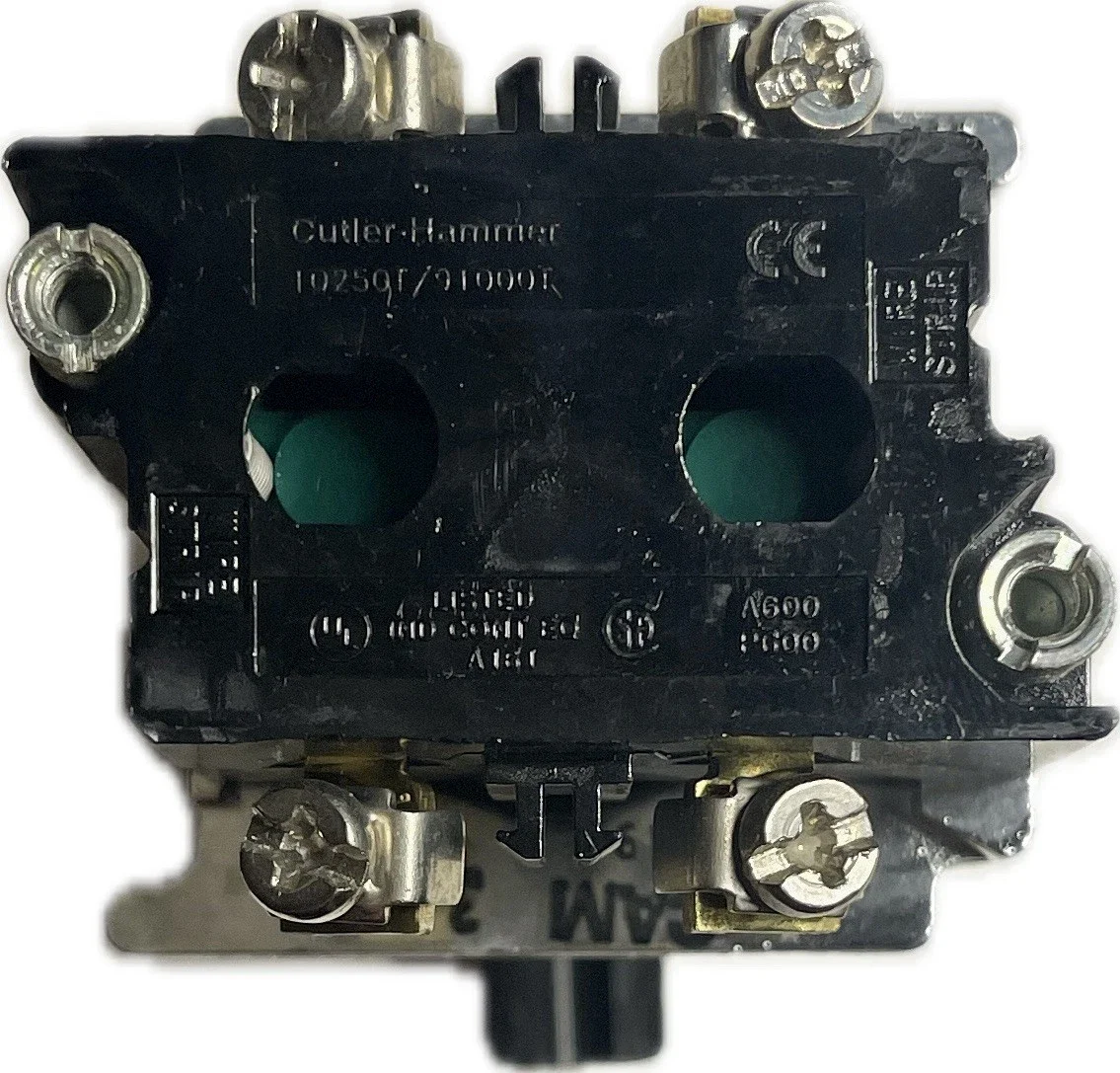

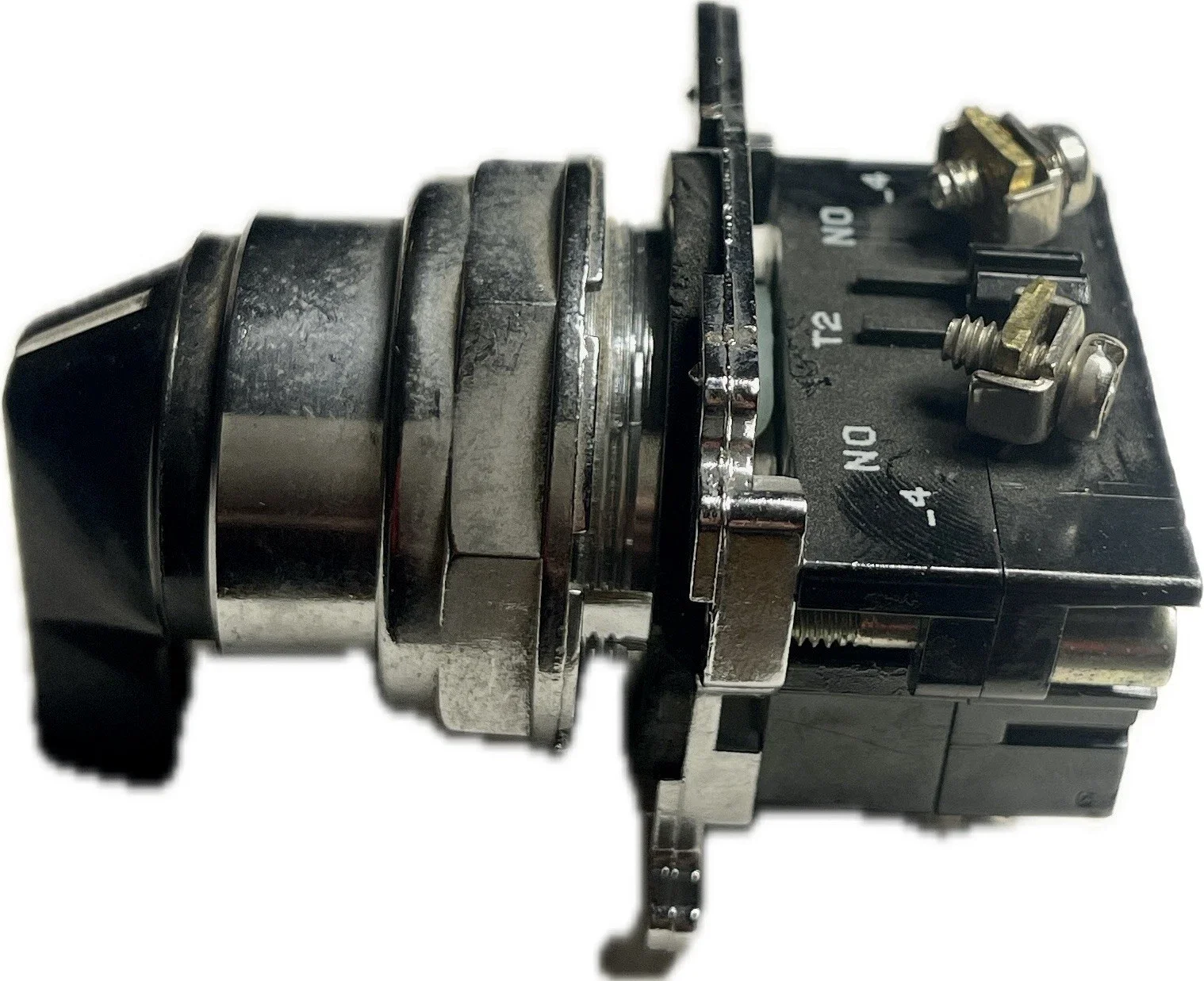

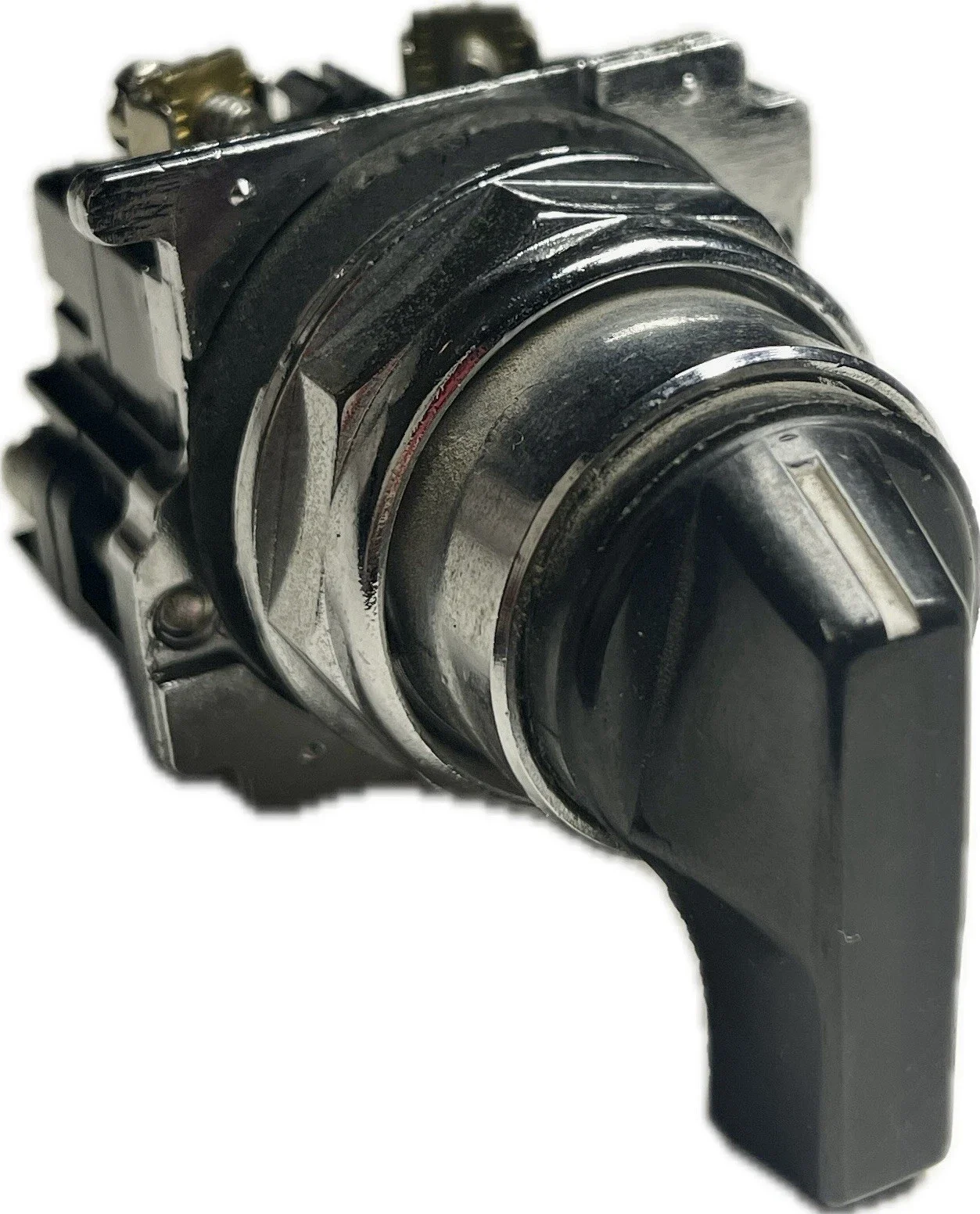

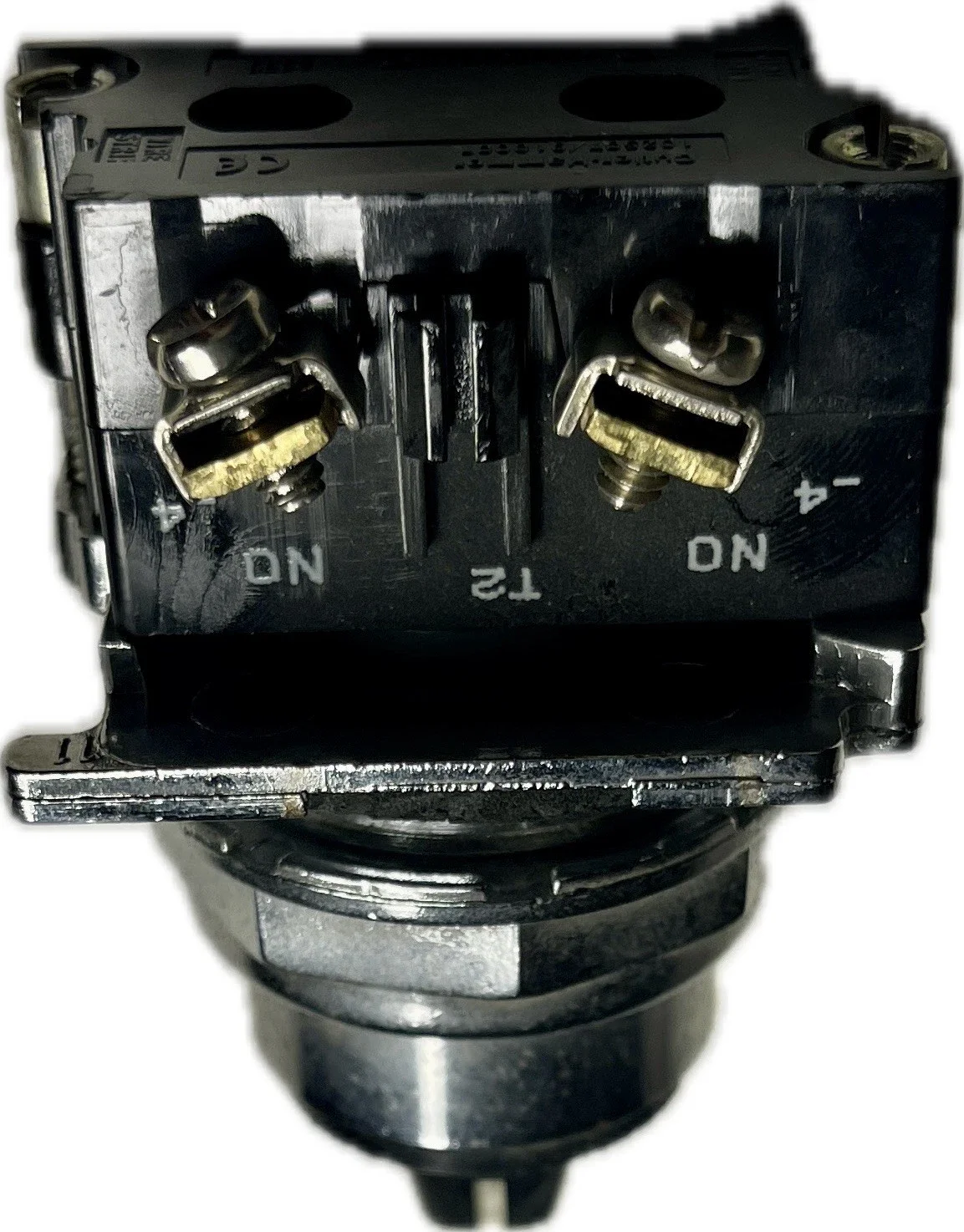

New surplus, unused, in open box condition with the assembled operator and contact block. No original packaging, but no signs of prior use. Untested by us; recommend verification by a qualified technician prior to installation. Includes only what is shown in photos.
Suitable for control panels, machine tools, conveyor systems, HVAC equipment, or similar setups needing manual switching. Compatible with Eaton 10250T series components.
Shipped in protective packaging.
