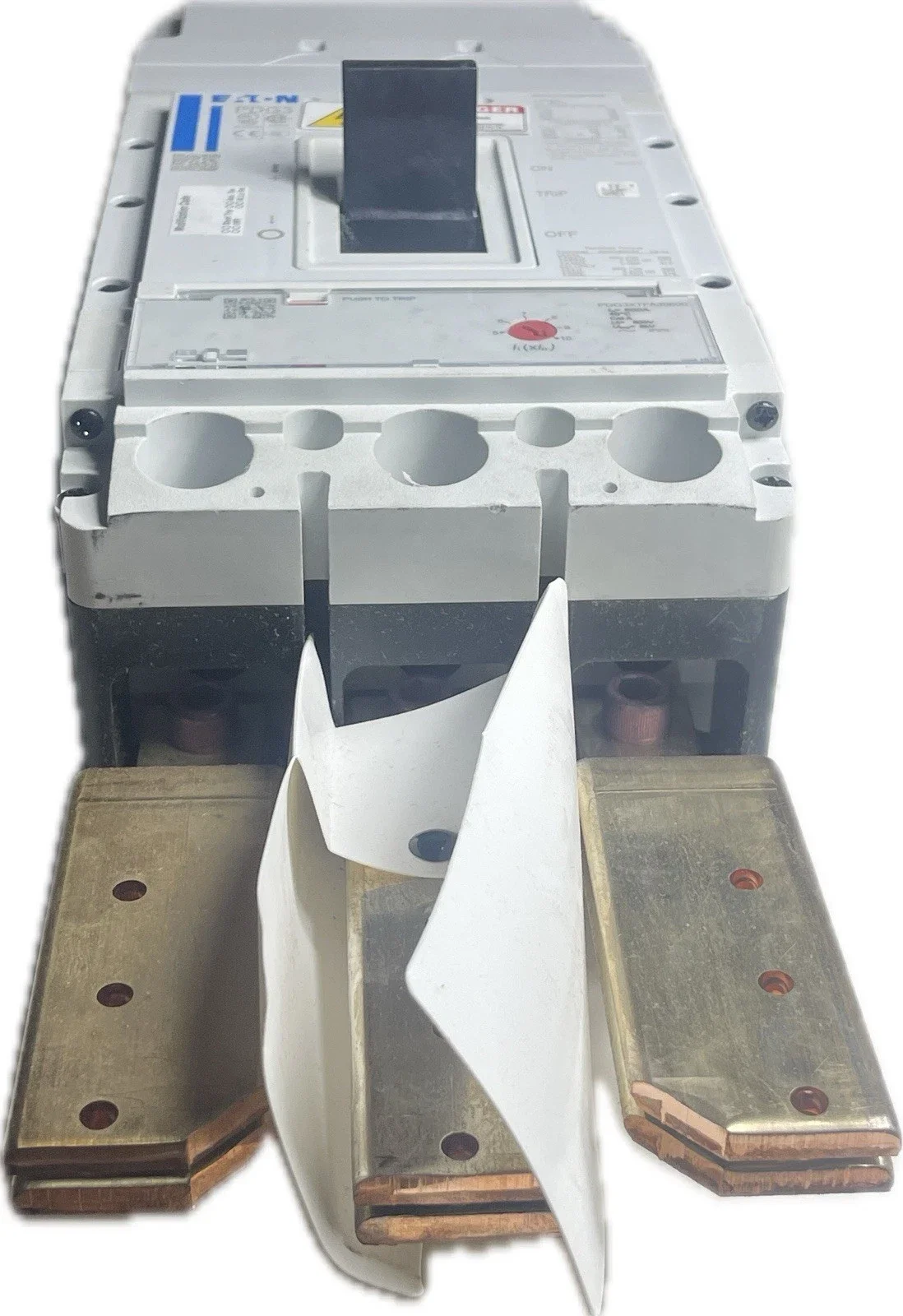

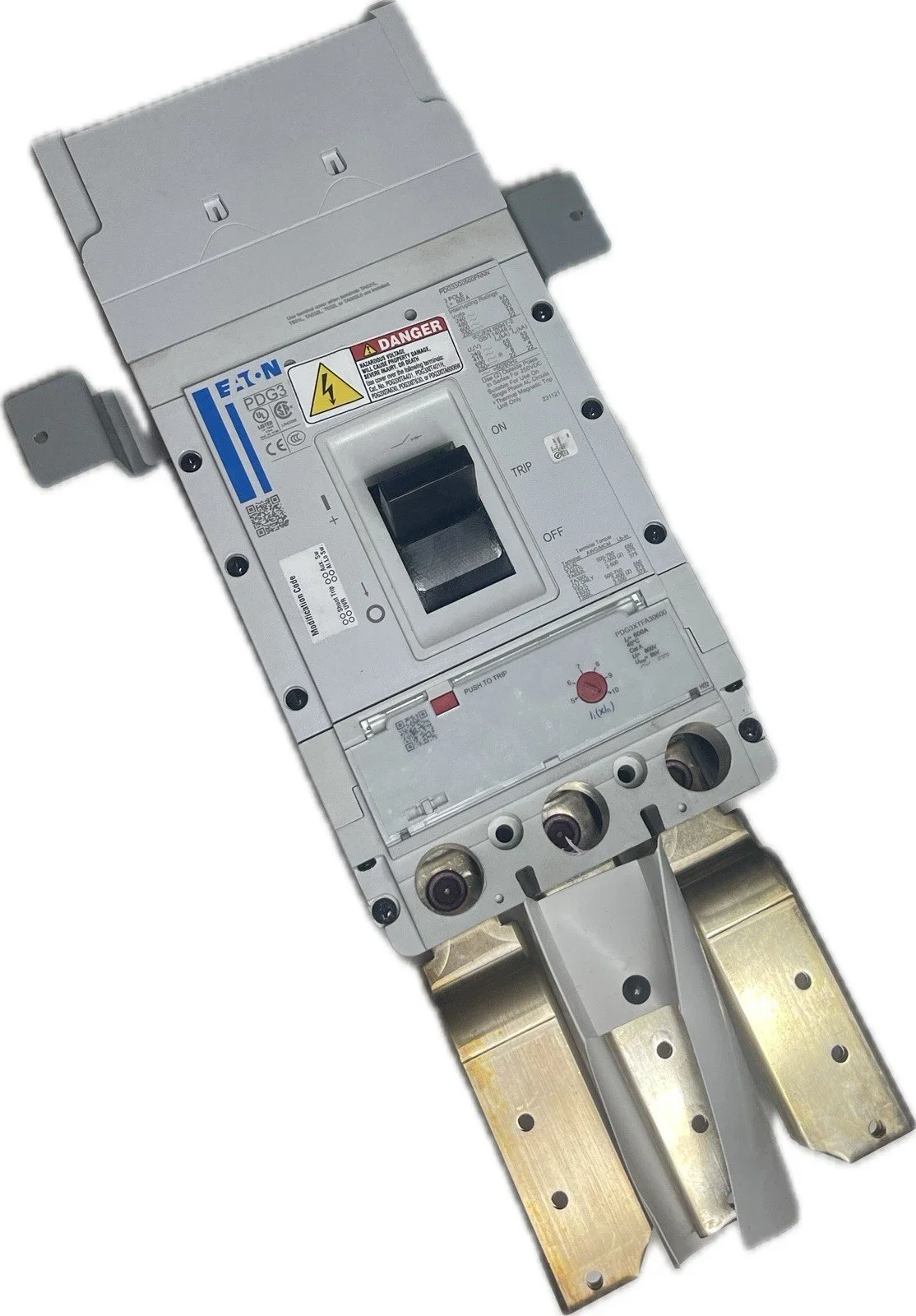

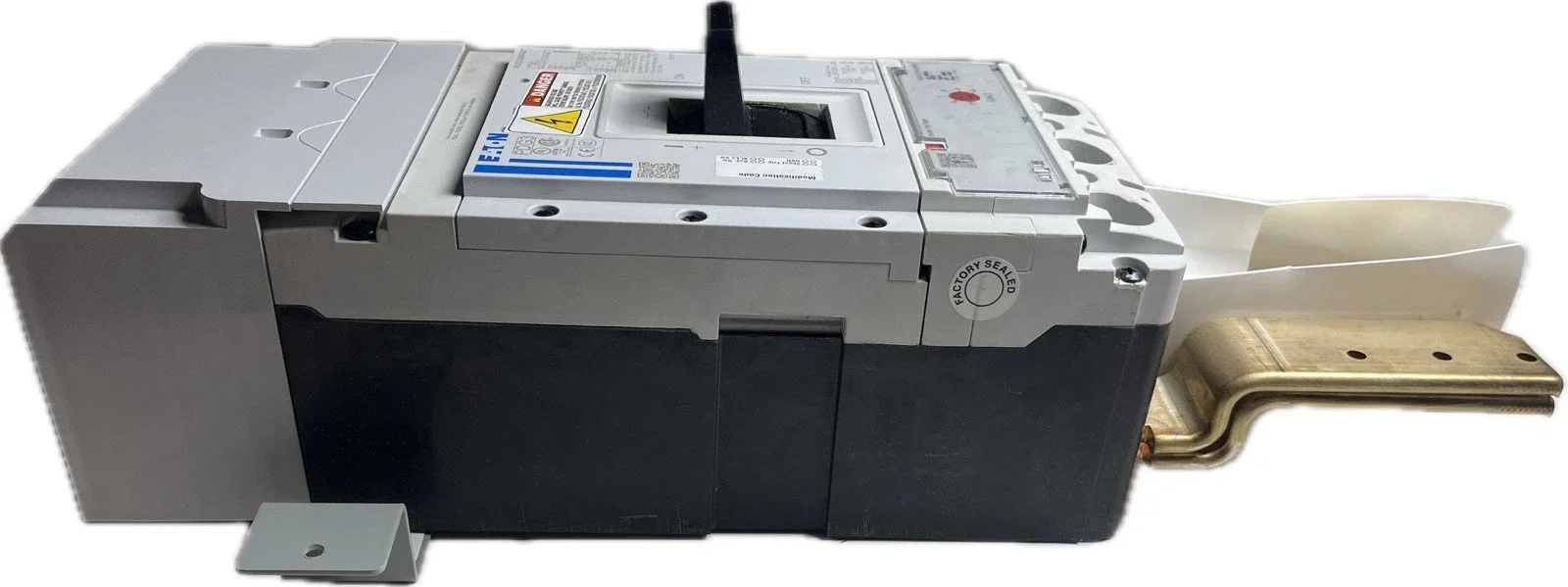

Overview This listing is for a genuine Eaton PDG33G0600FNNN Power Defense 3-pole molded case circuit breaker (MCCB) with thermal-magnetic trip unit. Engineered for high-performance overcurrent and short-circuit protection in industrial power distribution systems (UL/IEC rated). Compact, globally compliant design with adjustable magnetic settings; new surplus — pristine and unused, never installed/energized, includes original hardware/instructions packet (minor storage marks only).
Key Features
Manufacturer: Eaton (Cutler-Hammer)
Series / Frame: Power Defense (PDG3 / PD3 Global, Frame 3)
Model / Catalog No.: PDG33G0600FNNN (3-pole, G interrupting level)
Amperage Rating: 600 A (In = 600 A; adjustable magnetic pickup 5–10x In)
Poles: 3-Pole
Voltage Rating: 600 VAC (50/60 Hz); suitable for 240/480/600 V systems; 250 VDC (series poles)
Interrupt Rating (AIC / Icu): 65 kA at 240 VAC / 35 kA at 480 VAC / 18 kA at 600 VAC (IEC: 22 kA Icu / 11 kA Ics at 415 V; additional global ratings on label)
Trip Unit: Fixed thermal-magnetic (thermal for overloads, adjustable magnetic for short-circuits; dial for I_m 5–10x In)

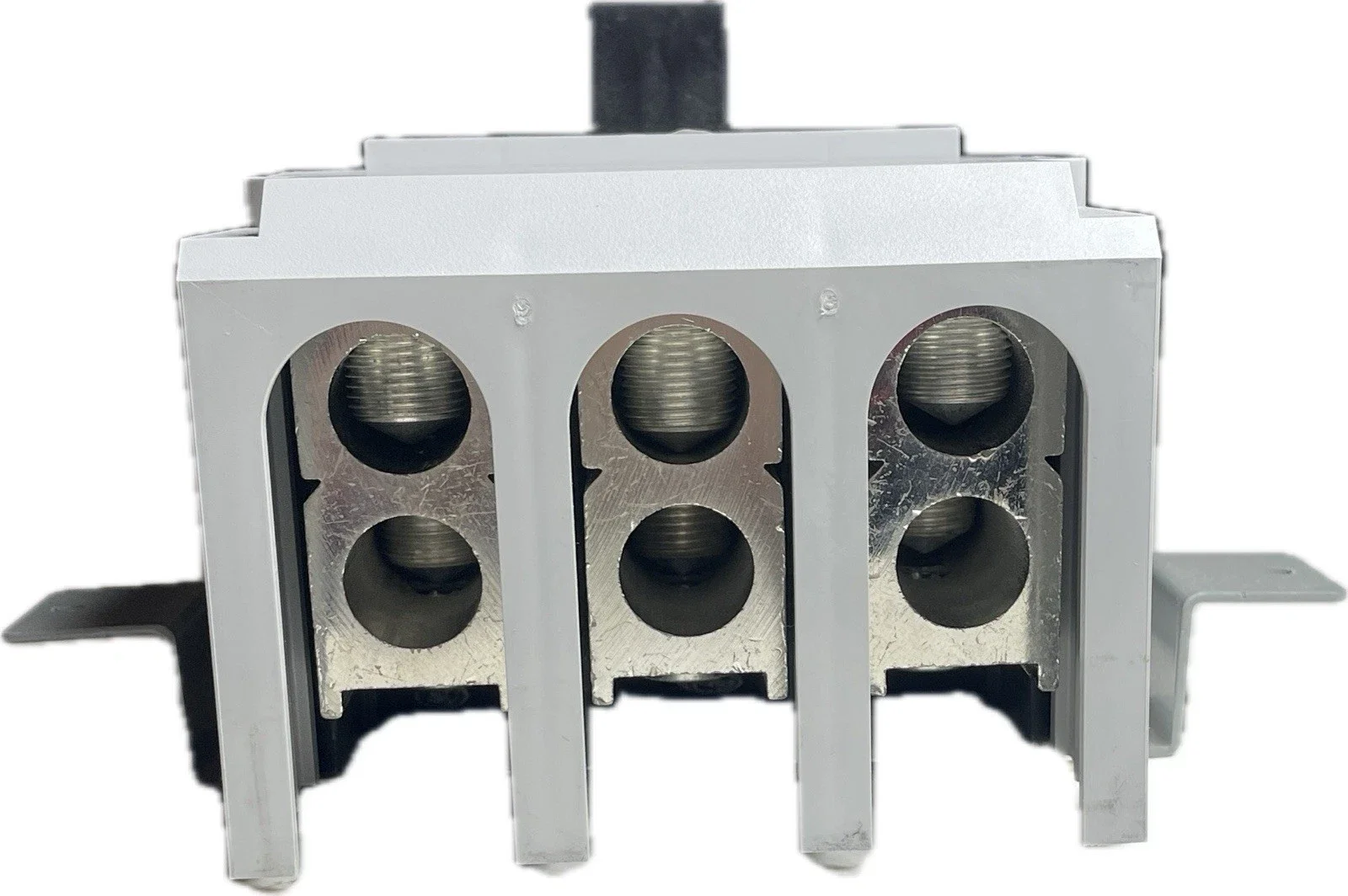

Mounting / Terminals: Unit-mount or plug-in (line/load lugs included; Cu/Al compatible, torque specs on label: e.g., 500–750 lb-in for TA631L / 2-500 kcmil wire)
Dimensions (approx.): ~10.5" H x 5.5" W x 4.1" D (standard Frame 3 size)
Weight (approx.): 12–15 lbs
Standards / Certifications: UL Listed (UL 489), CSA, IEC/EN 60947-2, CE marked, CCC, RoHS compliant
Additional Ratings: 40°C calibrated, Ui 800 V / Uimp 8 kV withstand, suitable for reverse feed, HACR rated, terminal covers recommended (not included)

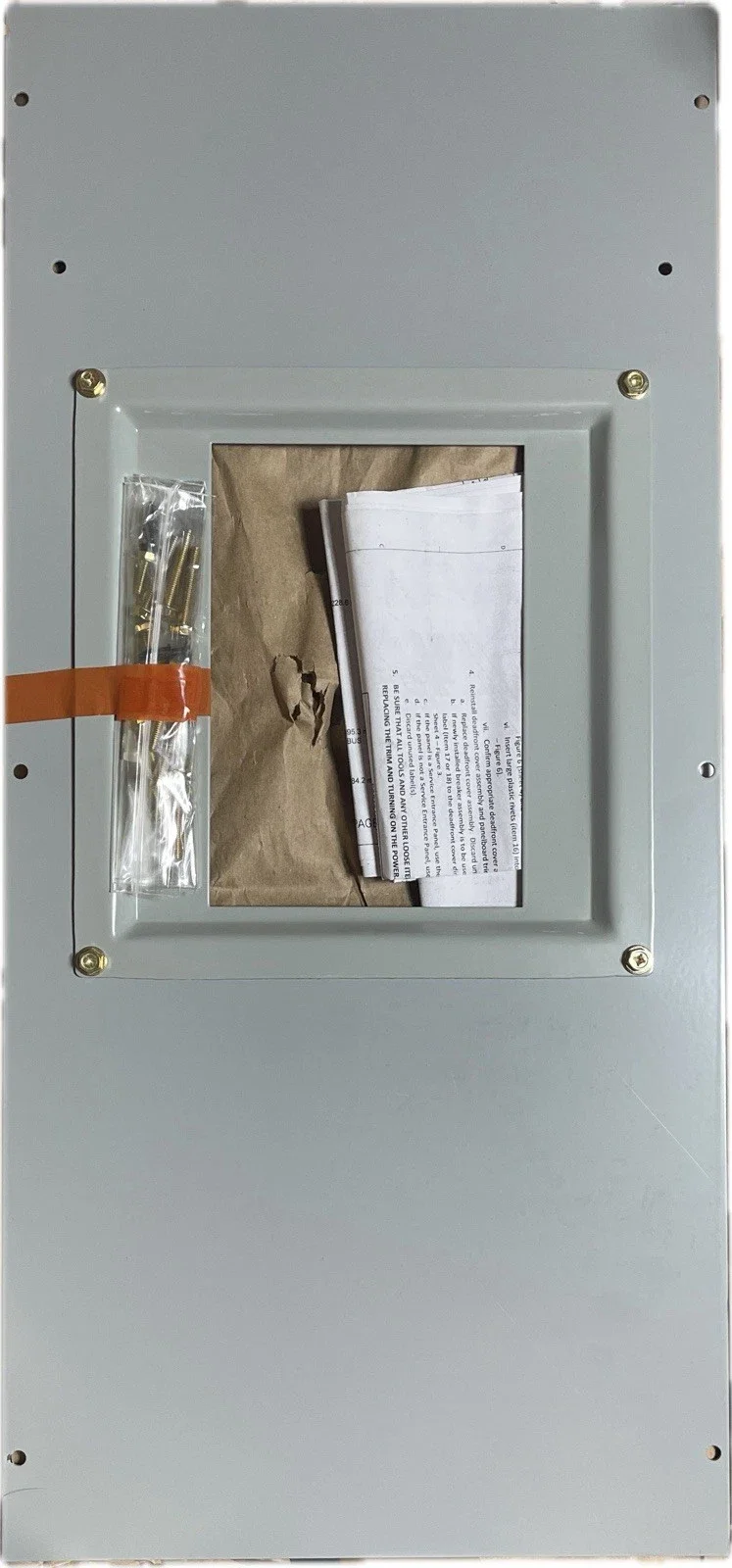

Condition: New surplus / unused (pristine cosmetics, original protective elements and hardware packet with screws/manual; functional and ready for install — verify torque on connections)
Applications
Feeder or branch protection in switchboards, panelboards, or MCCs
Industrial motor circuits, transformers, generators, or heavy loads
Commercial facilities requiring high AIC (e.g., manufacturing, data centers)
Global installations needing UL/IEC dual ratings
MRO upgrades or replacements in 480/600 V systems
Shipping & Handling
Ships 1 business day from Chicago, IL
