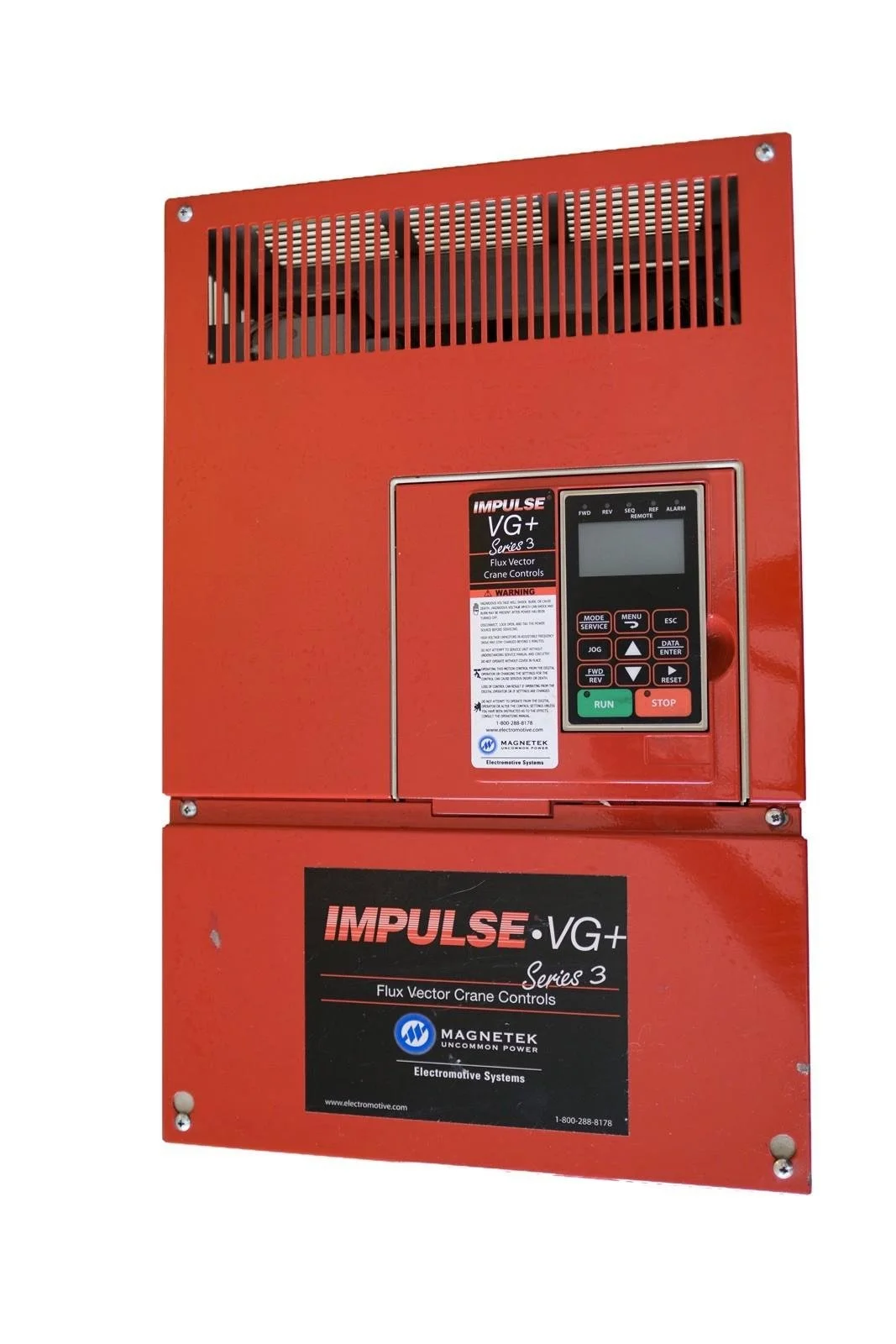

For sale is a Magnetek IMPULSE VG+ Series 3 Flux Vector Crane Control Drive, model 4075-FVG+S3. This is a high-performance adjustable frequency drive (VFD) purpose-built for overhead cranes, hoists, trolleys, and industrial material handling systems. It uses advanced closed-loop flux vector technology to deliver precise speed regulation, excellent low-speed torque, and reliable load handling – exactly what crane operators need for smooth, safe operation.
The complete unit includes the integrated digital operator panel, power section, large DC bus capacitors, and cooling fans, all housed in a rugged red/beige industrial enclosure. Ready to install or use as a spare/replacement drive.
Technical Details:

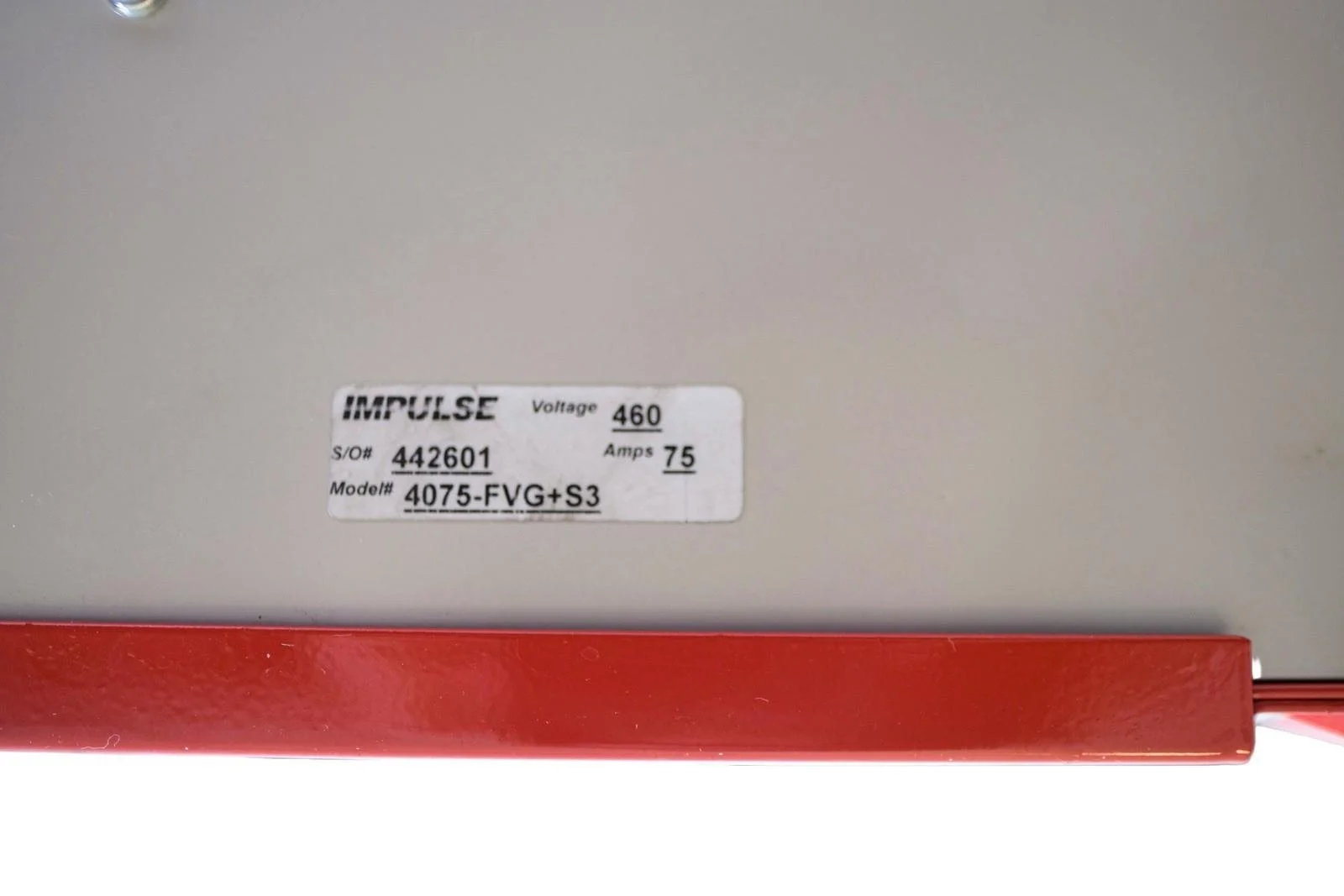

• Model: 4075-FVG+S3
• Series: IMPULSE VG+ Series 3
• Input Voltage: 460 VAC
• Rated Amps: 75A FLA
• Horsepower: 50 HP (nominal rating)
• Serial Number: 442601
• Control Type: Flux Vector (closed-loop capable with encoder feedback)
• Manufacturer: Magnetek / Electromotive Systems
Key Features:

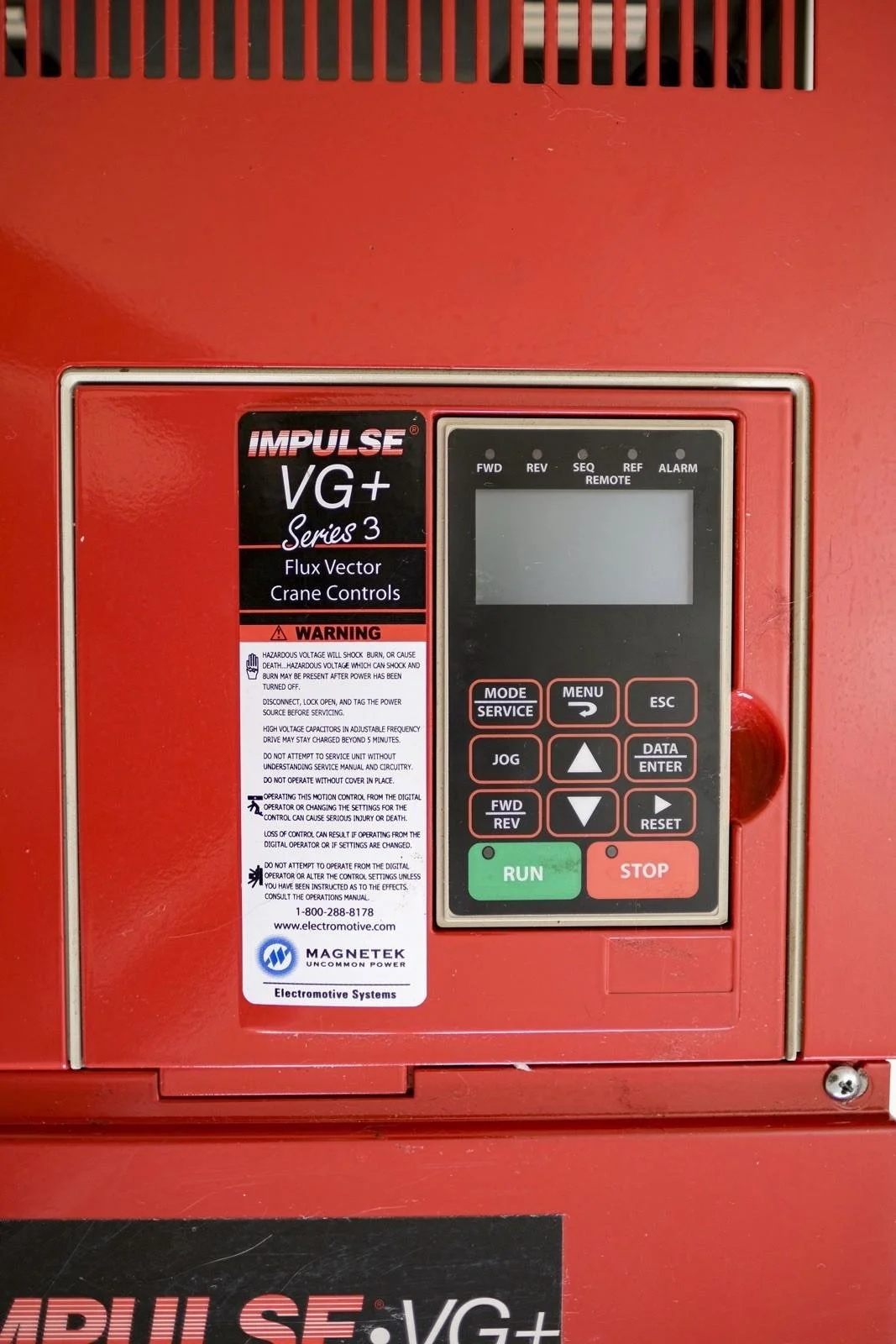

• Full digital operator interface with LCD display, RUN/STOP buttons, JOG, FWD/REV, MODE/SERVICE, MENU, DATA ENTER, and navigation keys

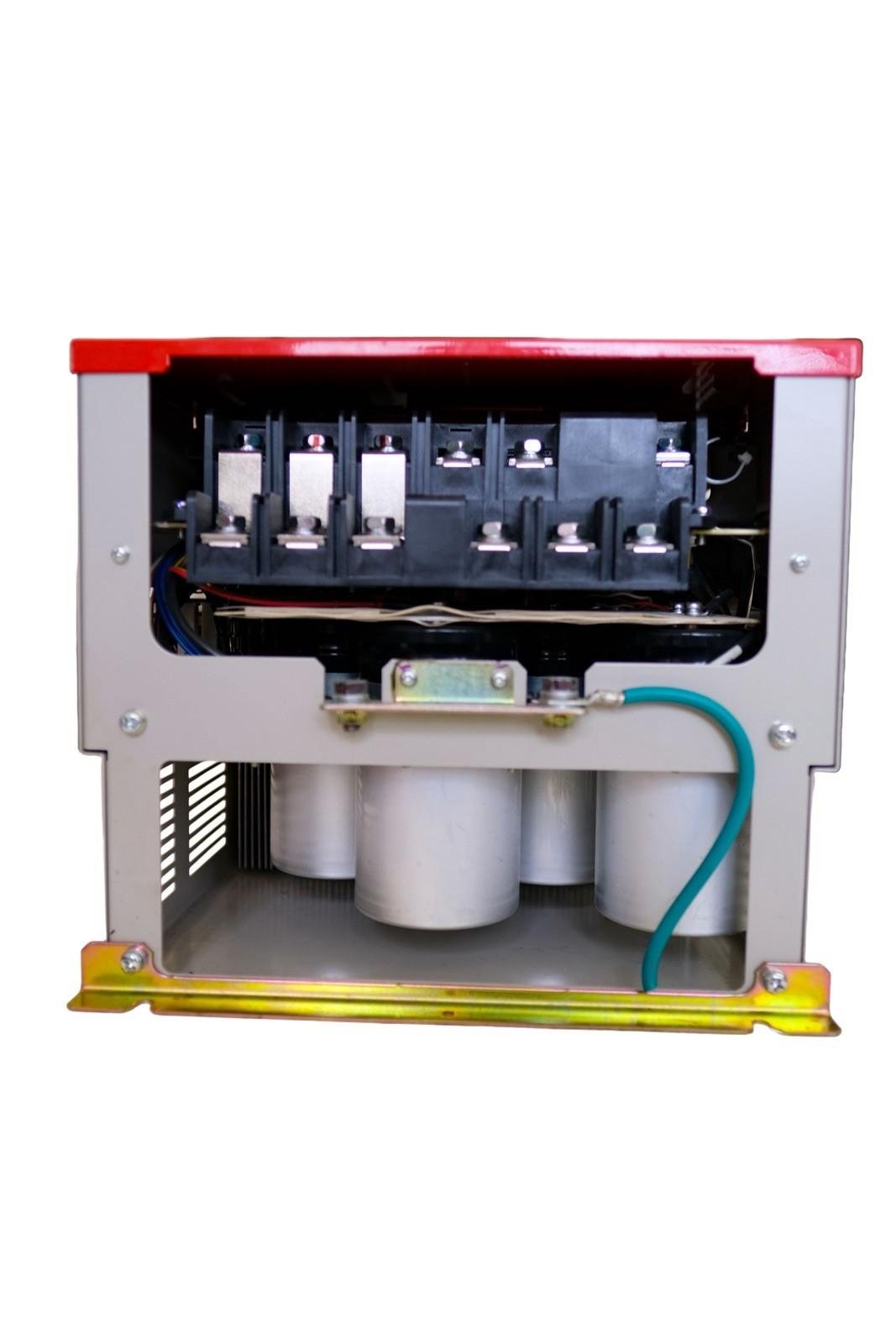

• Heavy-duty electrolytic capacitors in the DC bus for stable power delivery

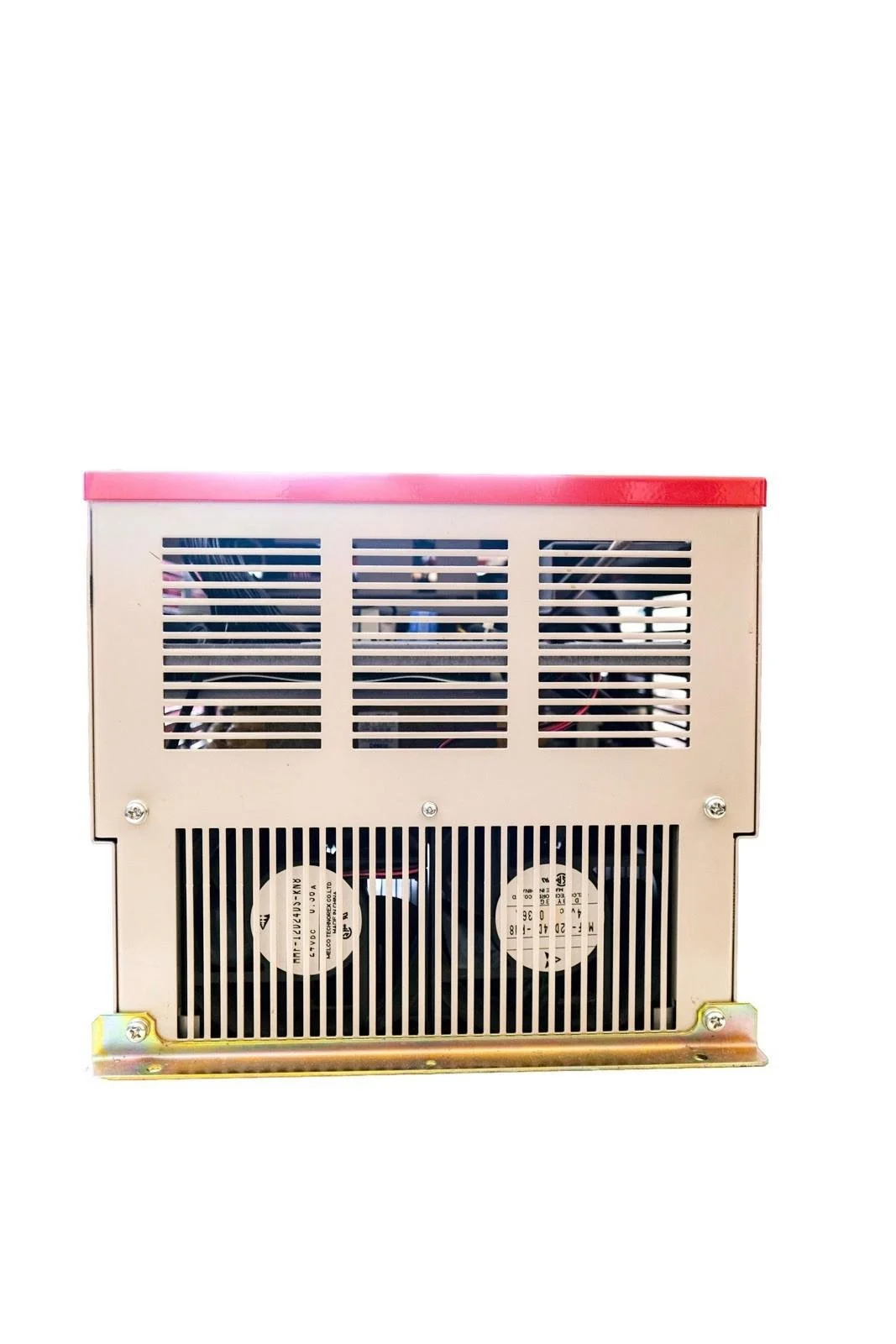

• Built-in dual cooling fans for thermal management
• Multiple speed profiles and hoist-specific parameters pre-configured for crane duty

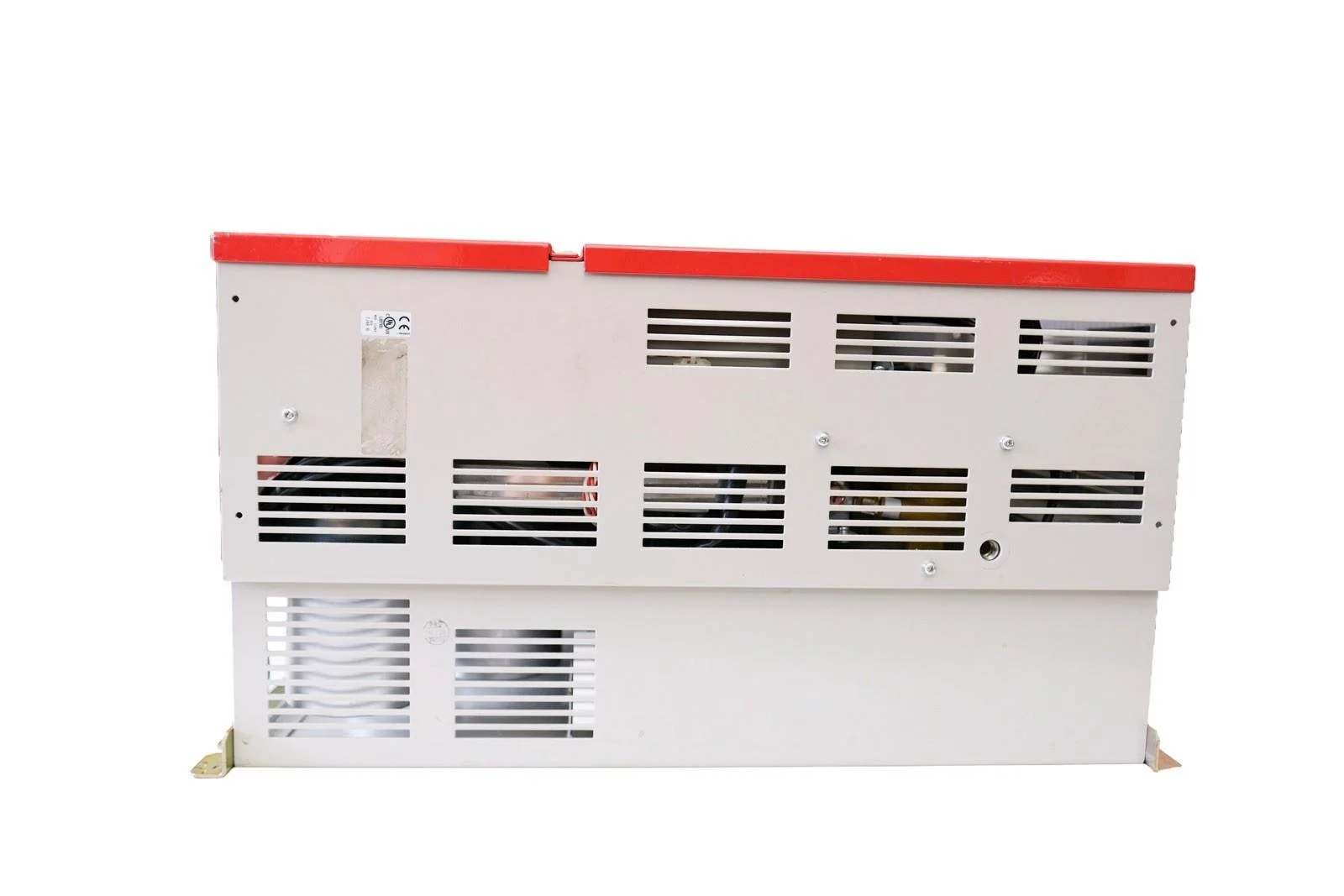

• Rugged industrial enclosure with ventilation slots for reliable operation in harsh environments
Condition:
Good used condition – pulled from a working crane system. Shows normal industrial wear but is very clean, complete, and fully functional as pictured. All components (control panel, capacitors, wiring, fans) are intact with no visible damage or missing parts. Photos show the exact unit you will receive.
Applications:
Overhead bridge cranes, gantry cranes, hoists, trolleys, and any material handling equipment requiring precise vector control and high torque performance.
