Overview
Enhance your industrial automation, IoT, or edge computing setup with this high-performance MOXA V2201-E4-T ultra-compact fanless embedded computer. Powered by an Intel Atom E3845 quad-core processor, this rugged device is built for harsh environments, offering reliable operation in extreme temperatures and vibration-prone settings. Ideal for marine, rail, power utilities, or factory applications requiring compact, low-power computing with extensive I/O options. Manufactured by MOXA, a leader in industrial networking and computing solutions, this new surplus unit comes at a great value for engineers, system integrators, or IT professionals. Keywords: MOXA embedded computer, V2201-E4-T fanless PC, Intel Atom industrial PC, rugged x86 computer, MOXA V2201 series.

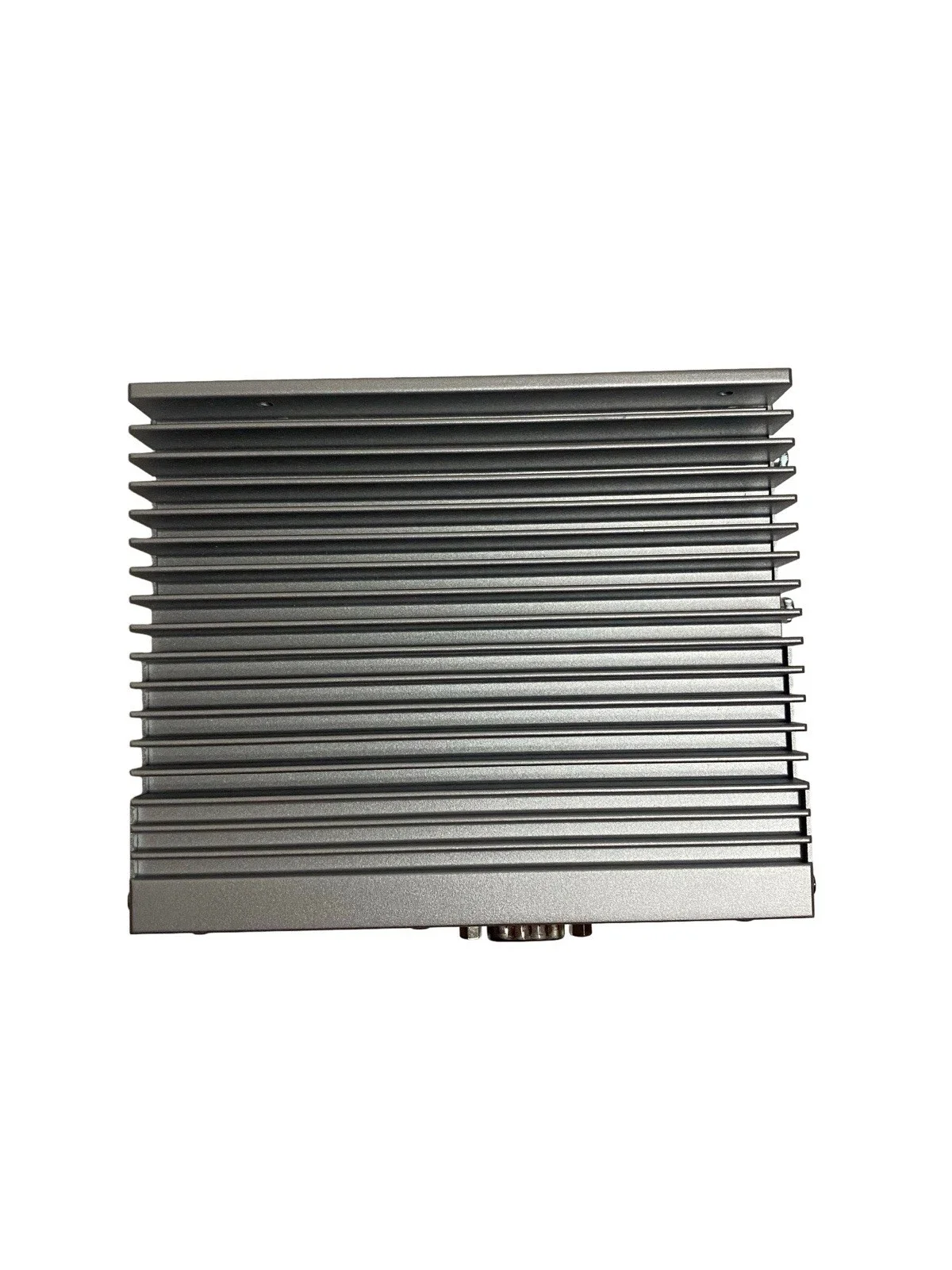

Fanless Rugged Design: Aluminum housing with IP30 protection, operates from -40 to 70°C, perfect for industrial and outdoor use without moving parts for high reliability.
Powerful Processing: Intel Atom E3845 quad-core CPU at 1.91 GHz with 4 GB pre-installed DDR3L RAM, supporting Linux Debian 8 or Windows Embedded Standard 7.
Extensive Connectivity: Dual Gigabit Ethernet ports, 2 software-selectable RS-232/422/485 serial ports, 4 digital inputs/outputs, HDMI video output, USB 3.0/2.0 ports, SD slot, and dual mPCIe slots for Wi-Fi, cellular, or GPS expansion.
Wide Power Input: 9-36 VDC input with low 18W max consumption, suitable for vehicle or remote installations.
Compact and Mountable: DIN-rail or wall-mount options for easy integration in tight spaces.
Brand: MOXA
Model/Catalog No.: V2201-E4-T
Processor: Intel Atom E3845 (Quad-Core, 1.91 GHz, 2MB Cache)
Memory: 4 GB DDR3L (Pre-installed, Expandable via SODIMM Slot)
Storage: mSATA Slot x1, SD/SDHC/SDXC Slot x1

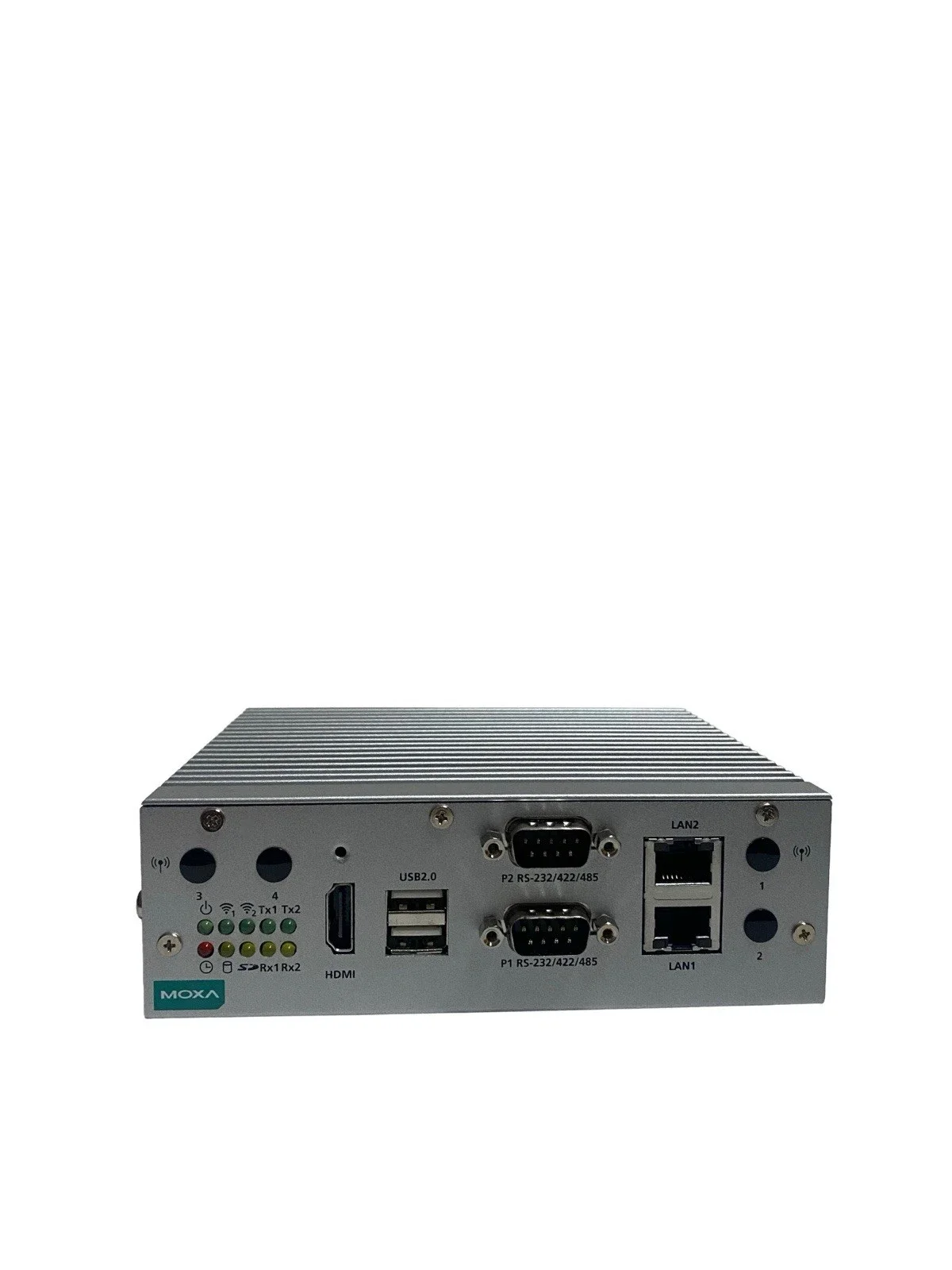

Ethernet Ports: 2 x 10/100/1000 Mbps (RJ45)
Serial Ports: 2 x RS-232/422/485 (DB9 Male, Software-Selectable)

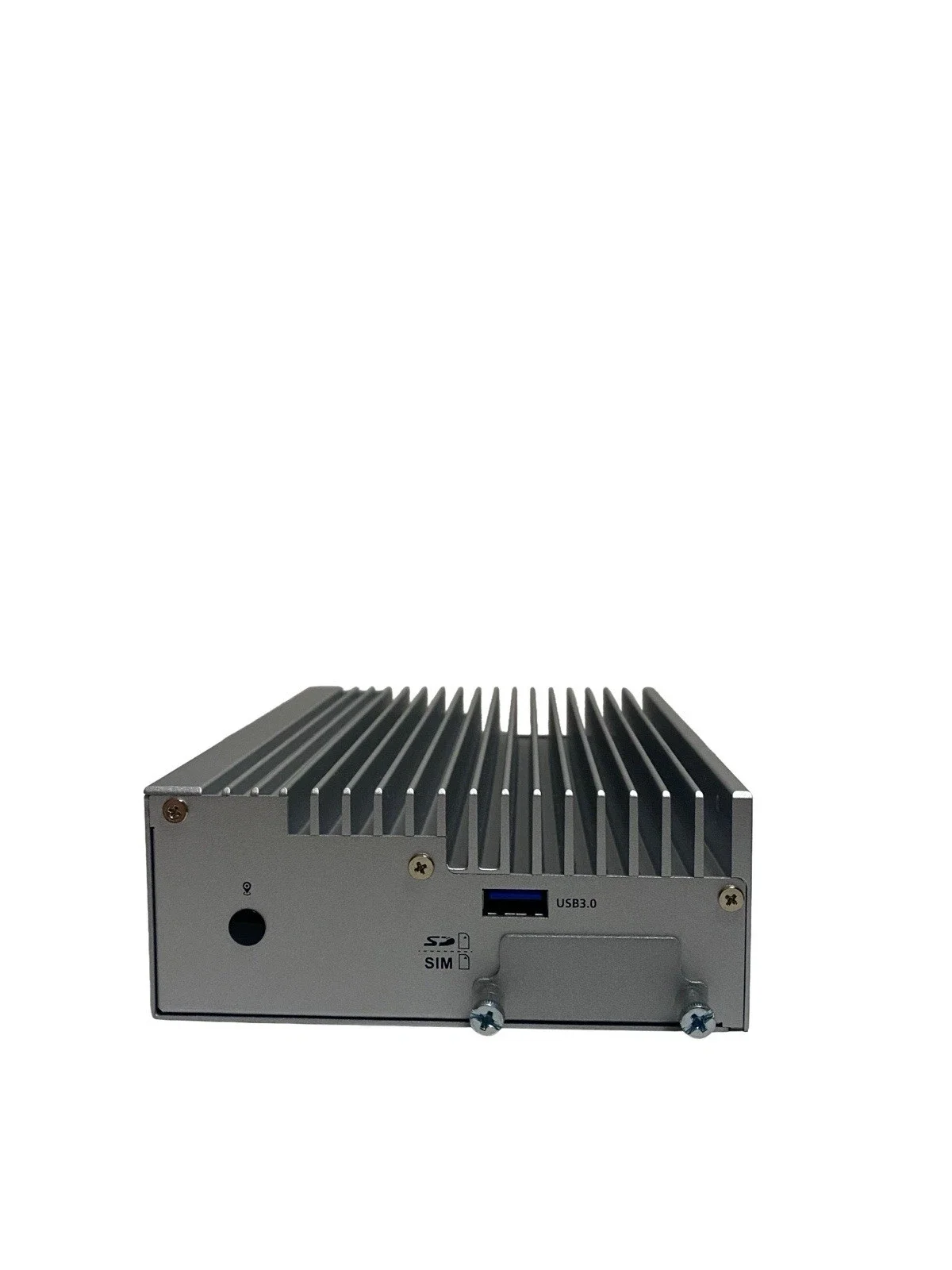

USB Ports: 1 x USB 3.0, 2 x USB 2.0
Video Output: 1 x HDMI
Digital I/O: 4 x DI (Dry/Wet Contact), 4 x DO (Sink Type, 200mA per Channel)
Expansion: 2 x mPCIe Slots (for Wireless Modules), 1 x SIM Slot, Antenna Connectors (2 x RP-SMA Wi-Fi, 2 x SMA Cellular, 1 x SMA GPS)

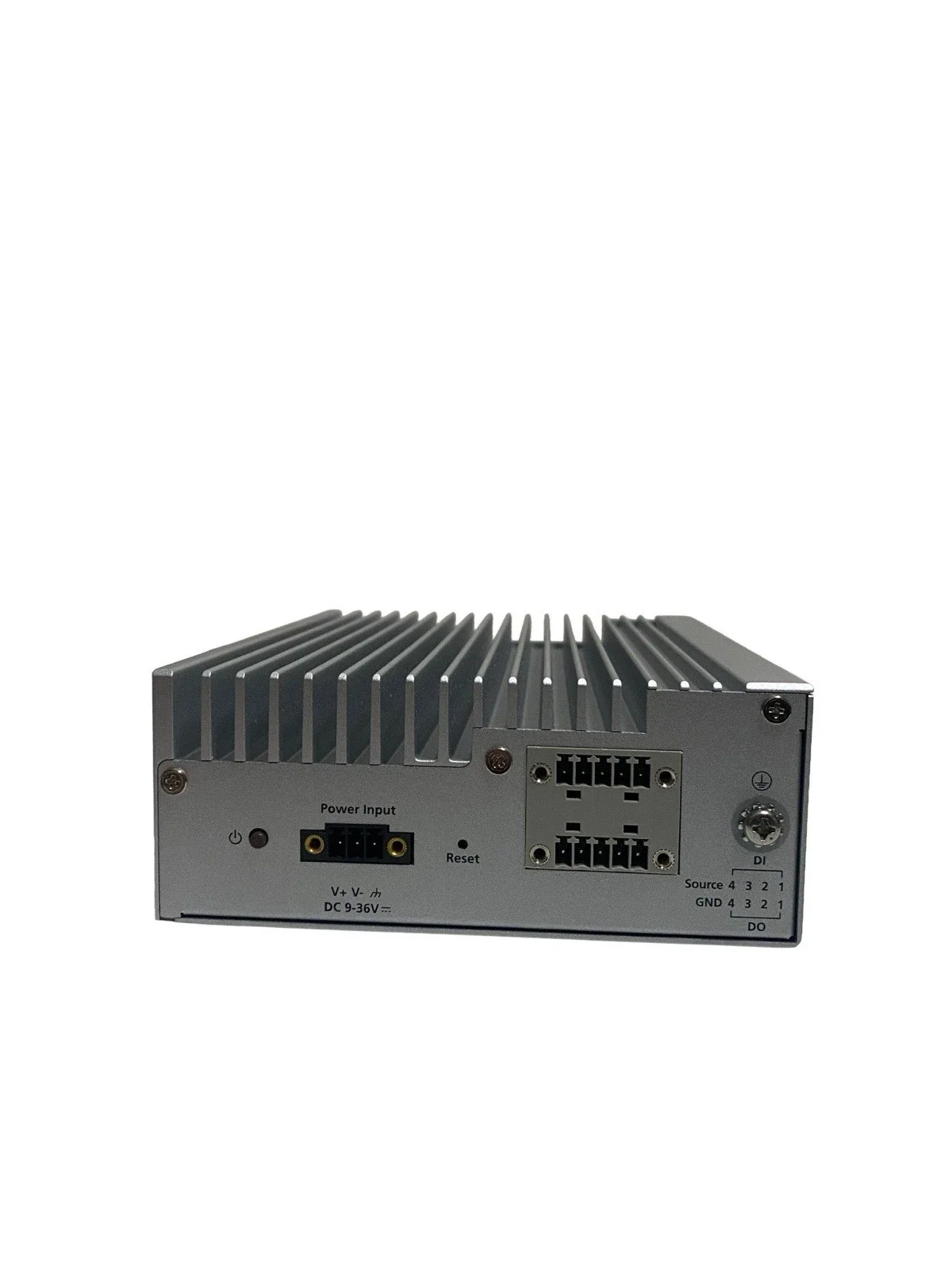

Power Input: 9-36 VDC, Terminal Block
Power Consumption: 18W Max (2000mA @ 9VDC)
Operating Temperature: -40 to 70°C (-40 to 158°F)
Dimensions: 150 x 48.8 x 120.2 mm (Without Ears); 178 x 52.5 x 120.2 mm (With Ears)
Weight: 940 g (2.09 lb)
Mounting: DIN-Rail, Wall-Mount (Optional Kit)
Standards: UL 508, EN 60950-1, IEC 61000 EMC, RoHS, CE, FCC
MTBF: 408,275 Hours

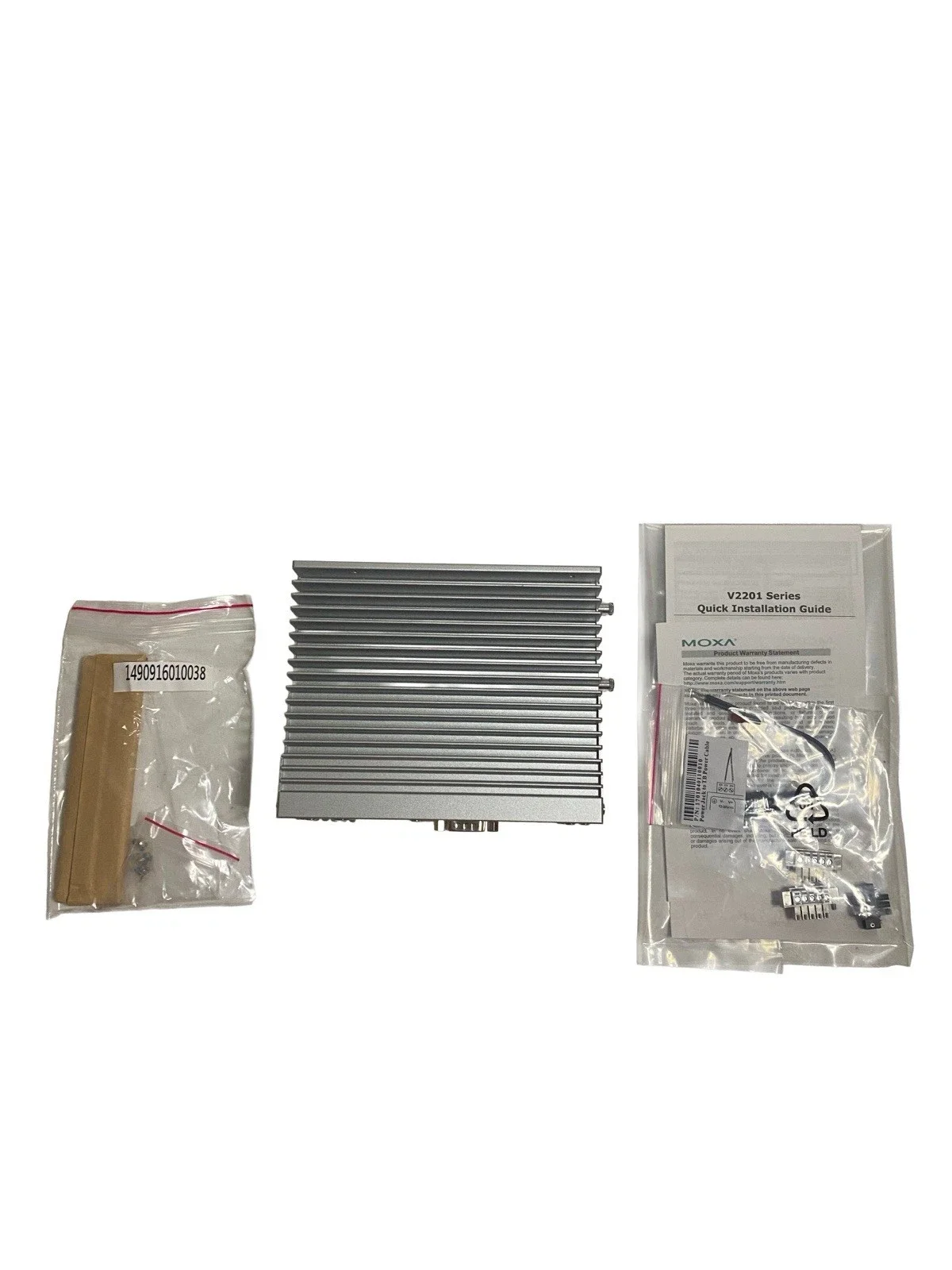

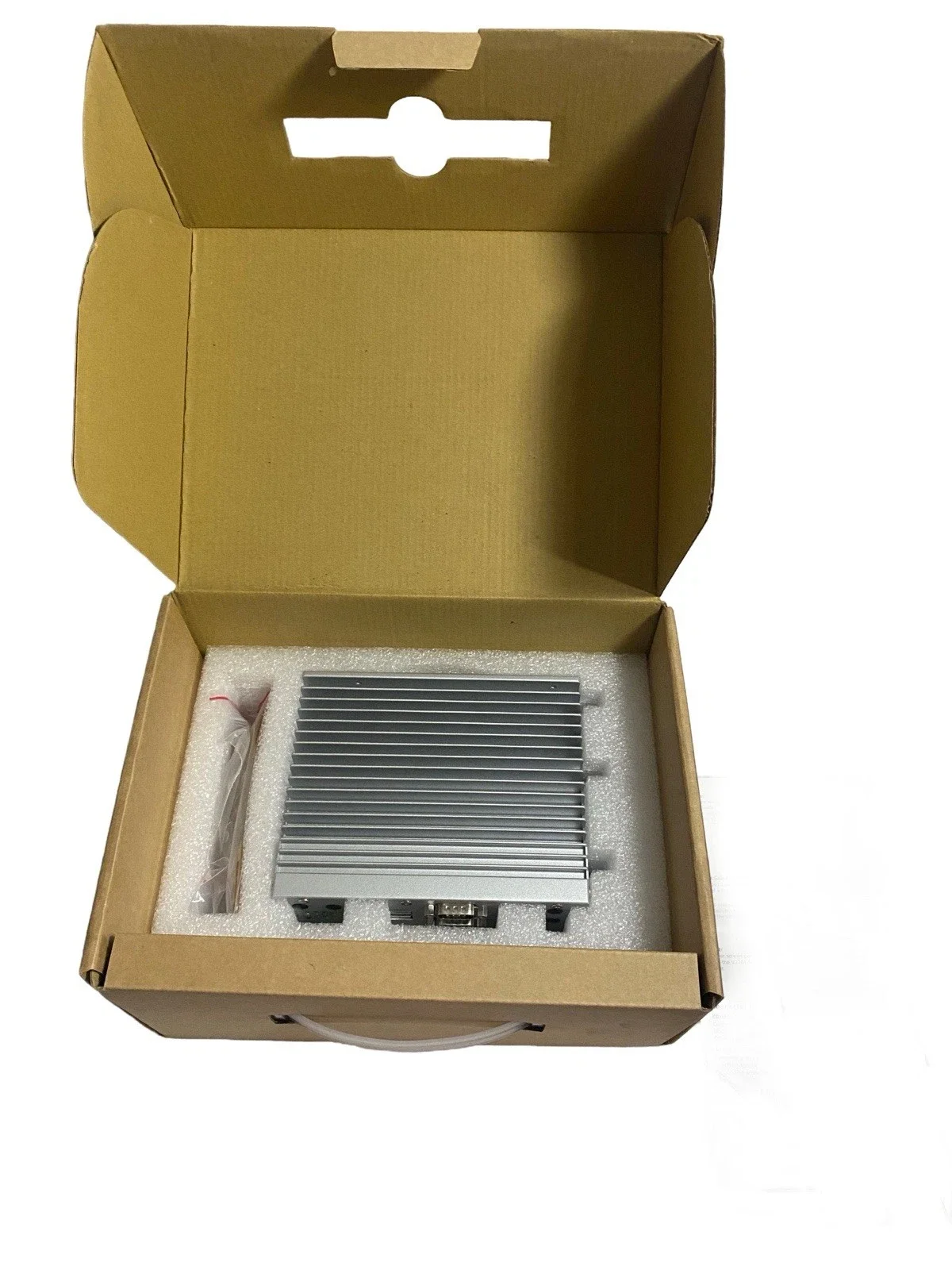

This unit is new surplus, unused, and comes in the original OEM box with foam padding, quick installation guide, warranty statement, and included accessories like a power terminal block cable (as seen in photos). No signs of use; ready for immediate deployment. Sold as-is; we recommend professional installation to ensure compatibility. Accessories shown in photos are included.
Perfect for industrial IoT gateways, remote monitoring, SCADA systems, transportation (rail/marine certified options), or any embedded computing need in demanding environments. Supports wireless expansions for cellular or Wi-Fi connectivity.
Ships securely packaged to prevent damage.
