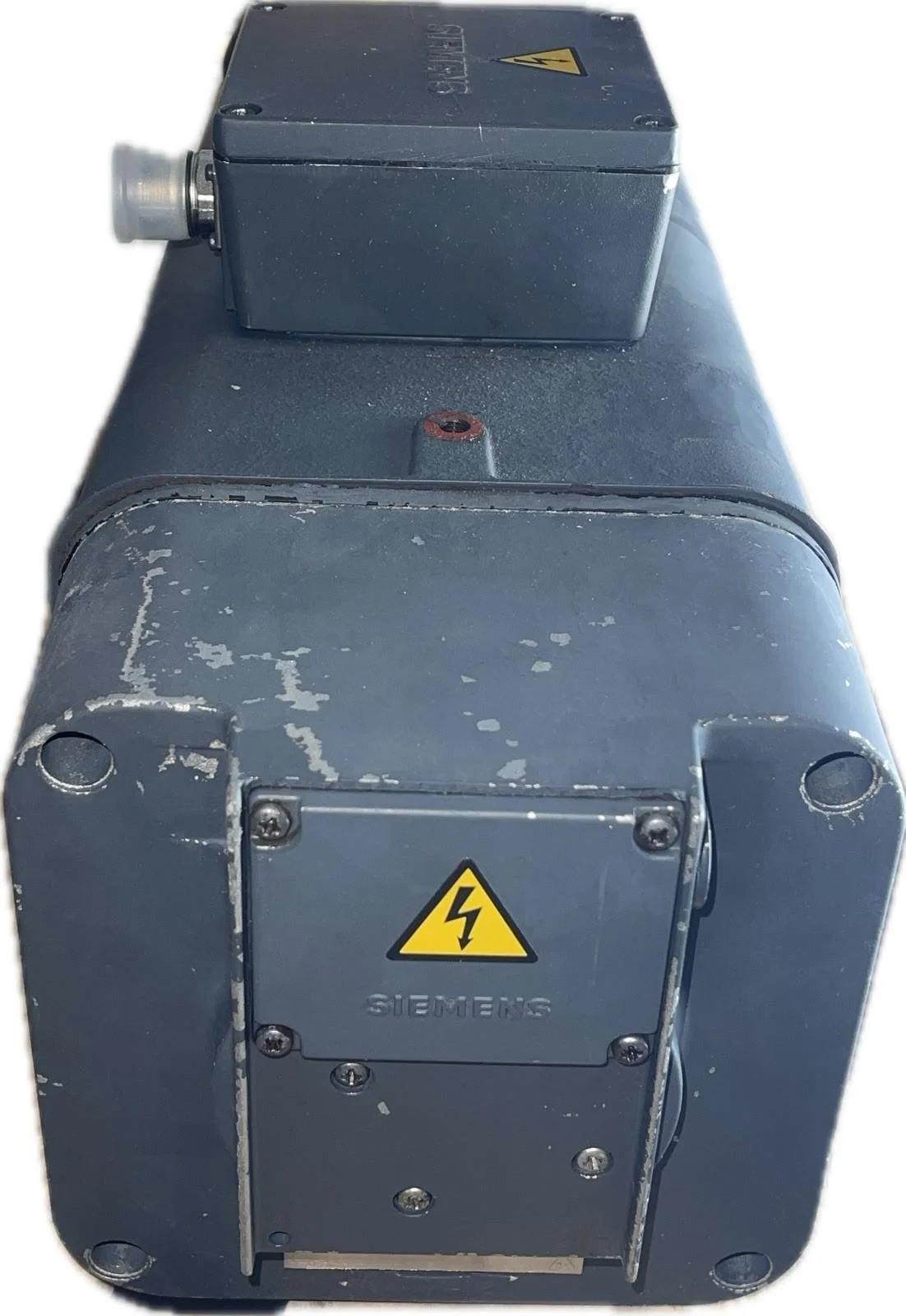

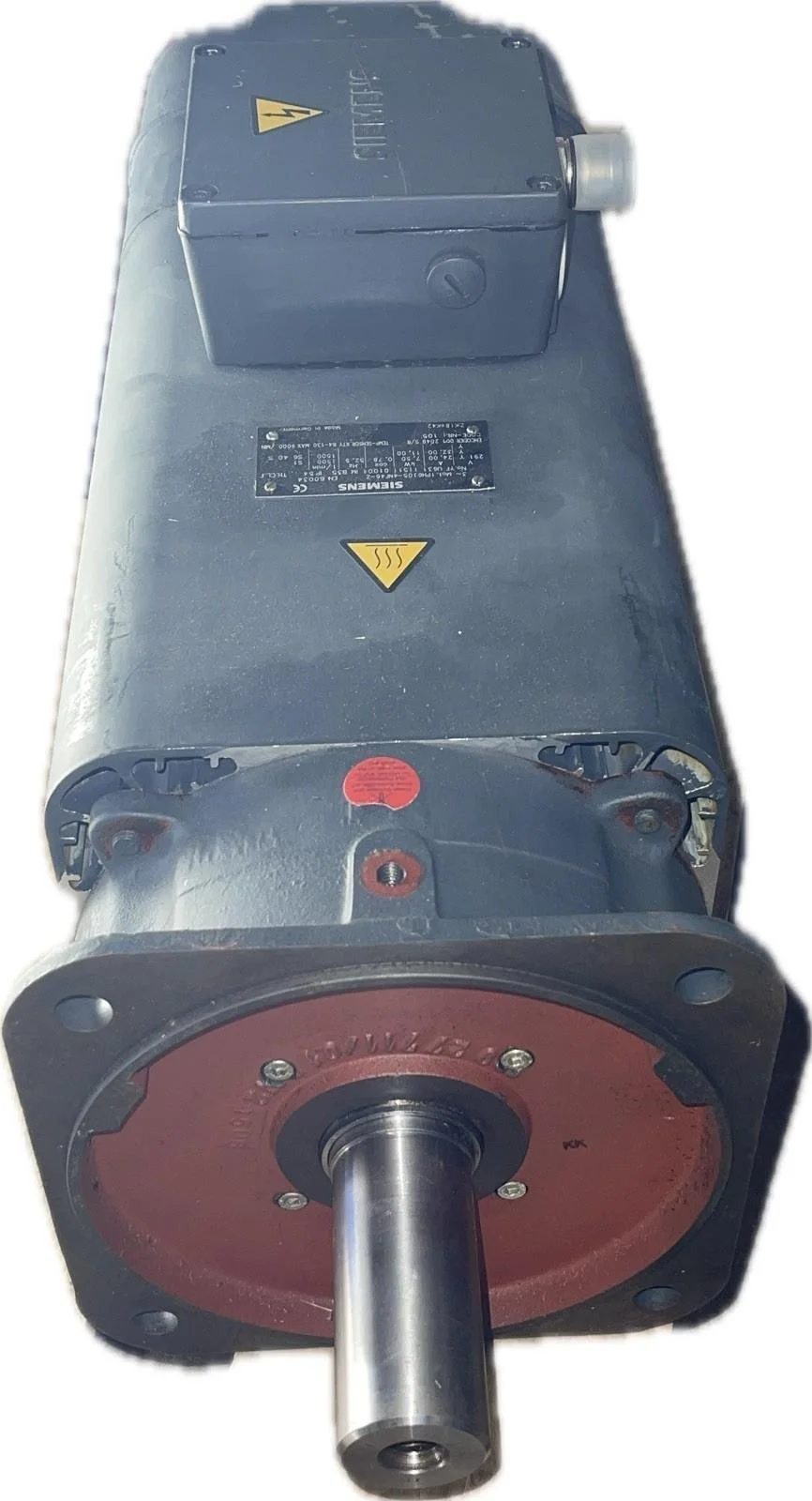

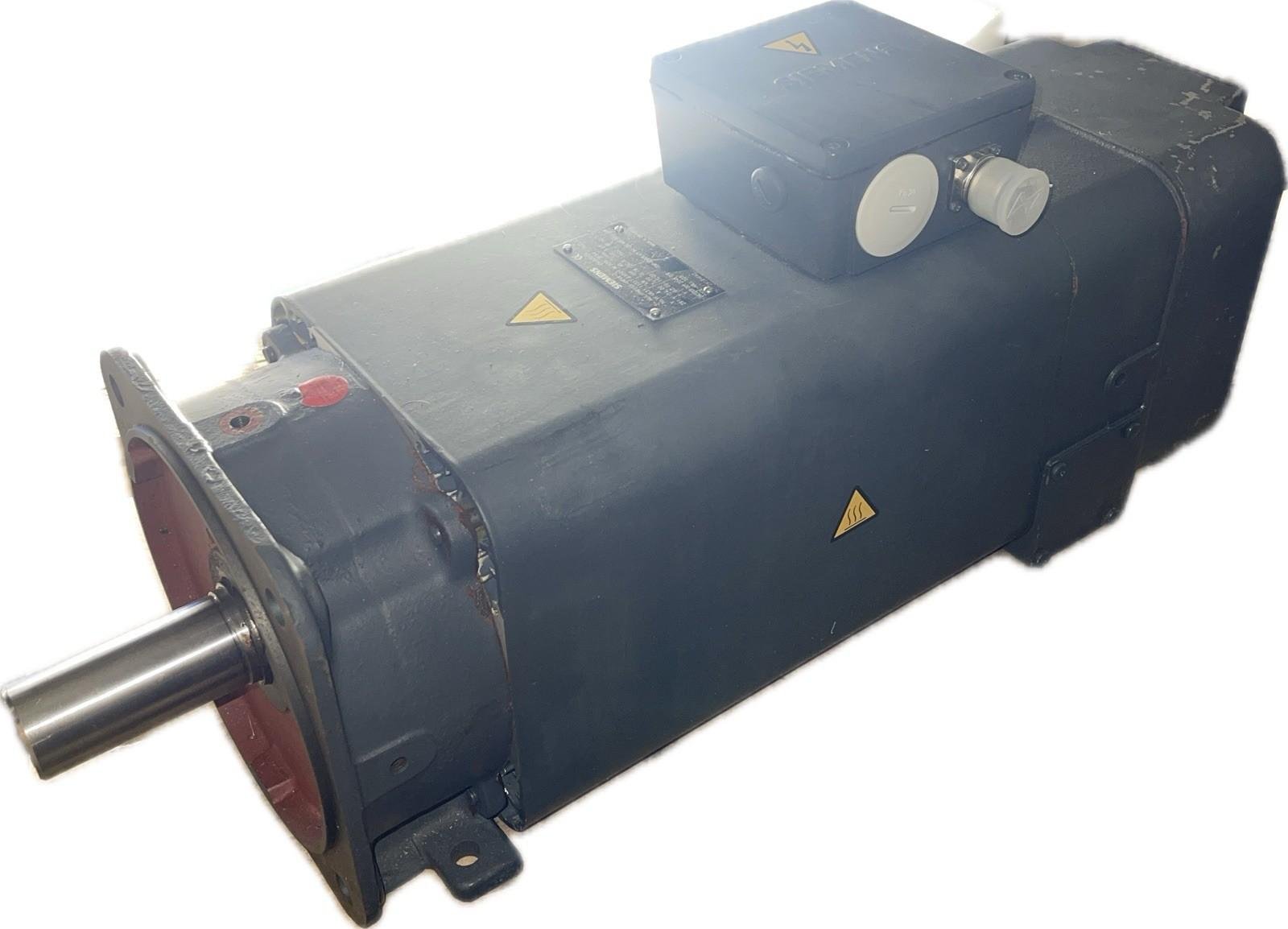

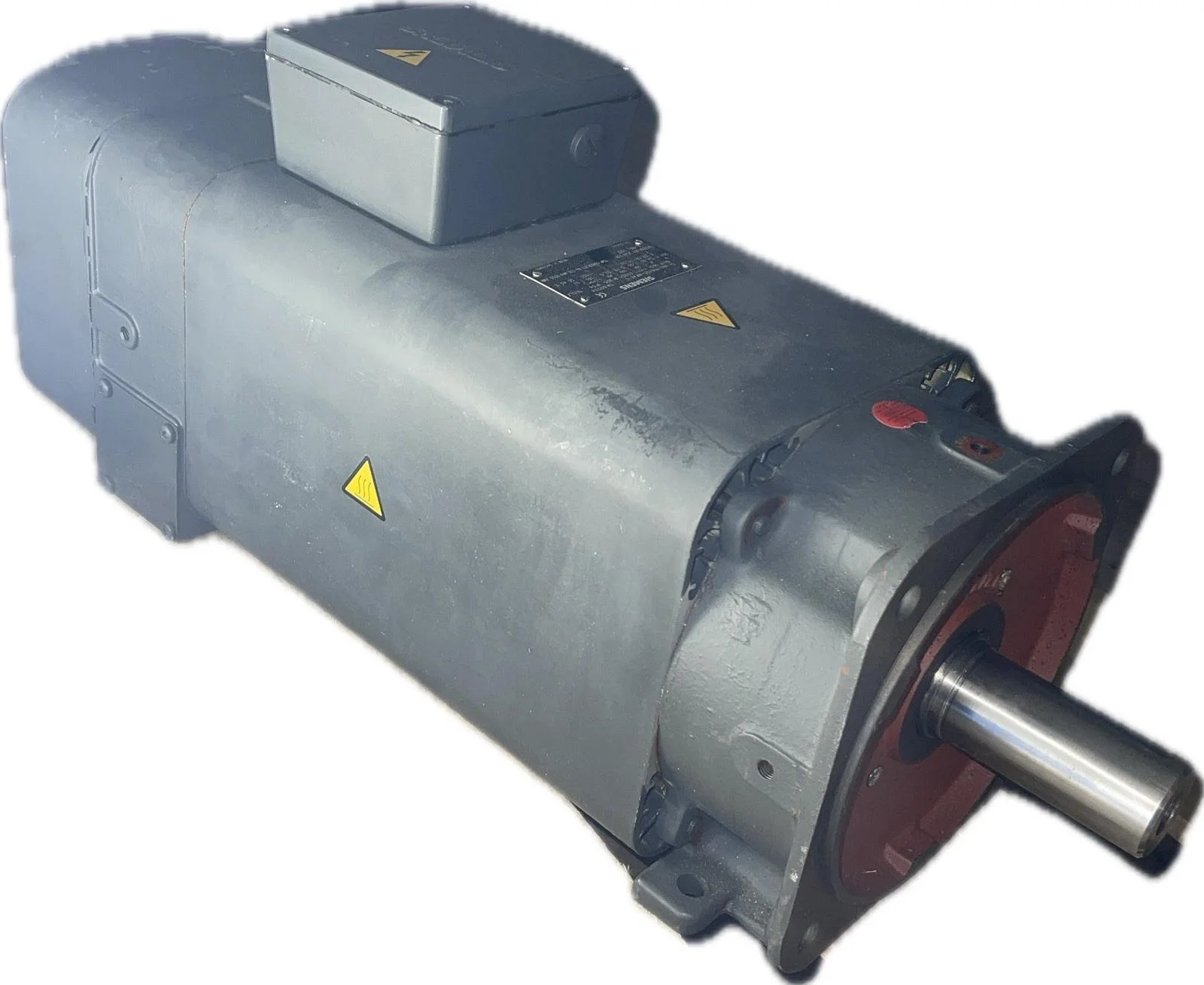

The Siemens 1PH6105-4NF46-Z is a premium 3-phase AC servo motor designed for high-performance industrial automation, motion control, and CNC applications. Built in Germany for precision and durability, it features an integrated 2048 pulse encoder for accurate position feedback and a rugged IM B35 flange mount construction.
This motor is new surplus, never installed, and comes in its original OEM Siemens packaging.
• Manufacturer: Siemens
• Model: 1PH6105-4NF46-Z

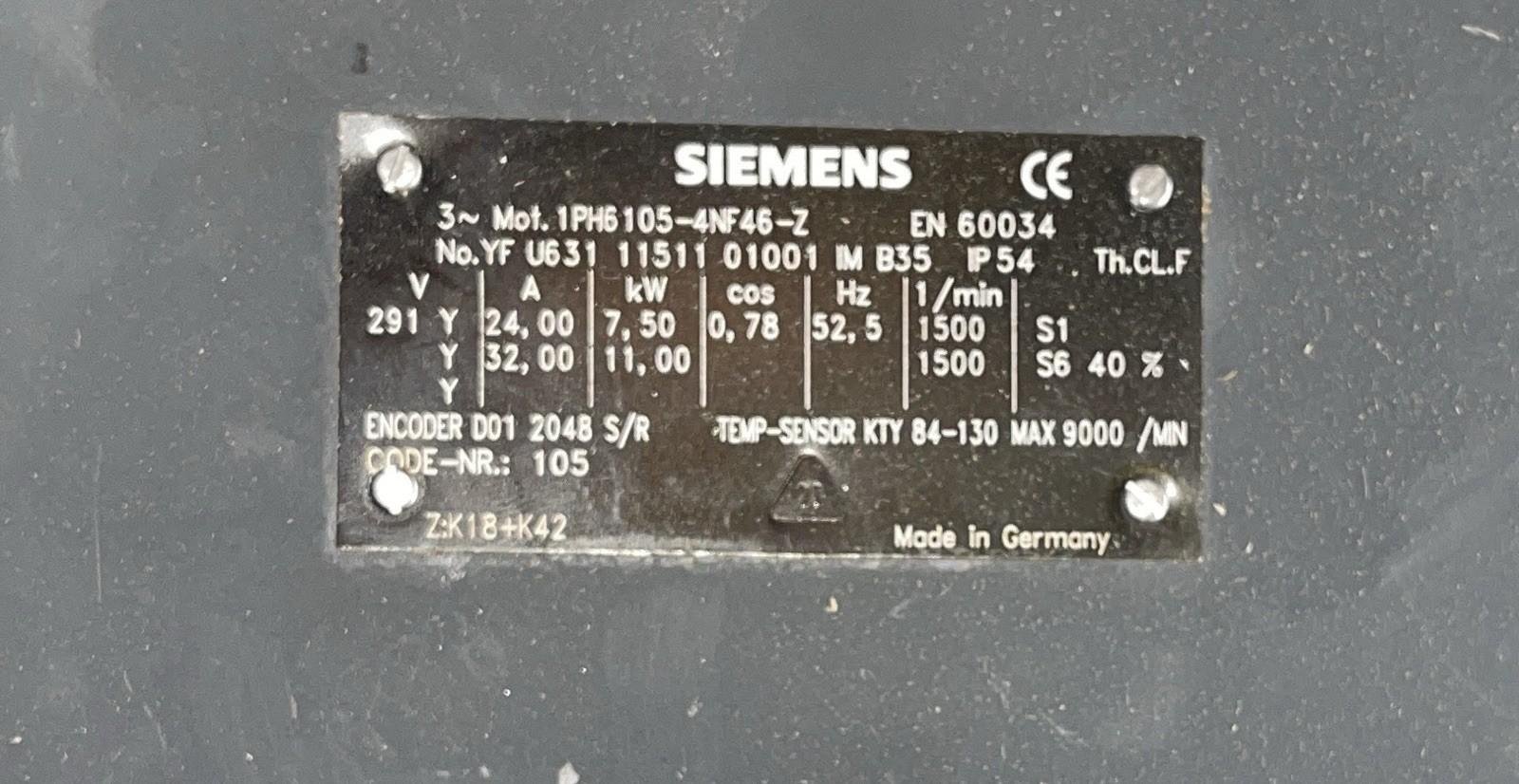

• Voltage: 291 V (Y)
• Power Rating: 7.5 kW (S1) / 11 kW (S6 40%)
• Frequency: 52.5 Hz
• Speed: 1500 RPM
• Current: 24 A / 32 A
• Efficiency Class: IEC 60034 – Th. CL F
• Mounting Type: IM B35 (Flange + Feet)
• Protection: IP54 enclosure
• Encoder: D01 2048 S/R Incremental
• Temp Sensor: KTY 84-130
• Max Speed: 9000 RPM
• Country of Origin: Made in Germany
• Condition: New Surplus – in Original Siemens OEM Box
• CNC and industrial automation drives
• Servo-controlled machinery and spindles
• Robotics and positioning systems
• Replacement for Siemens SINAMICS / SIMODRIVE motor assemblies

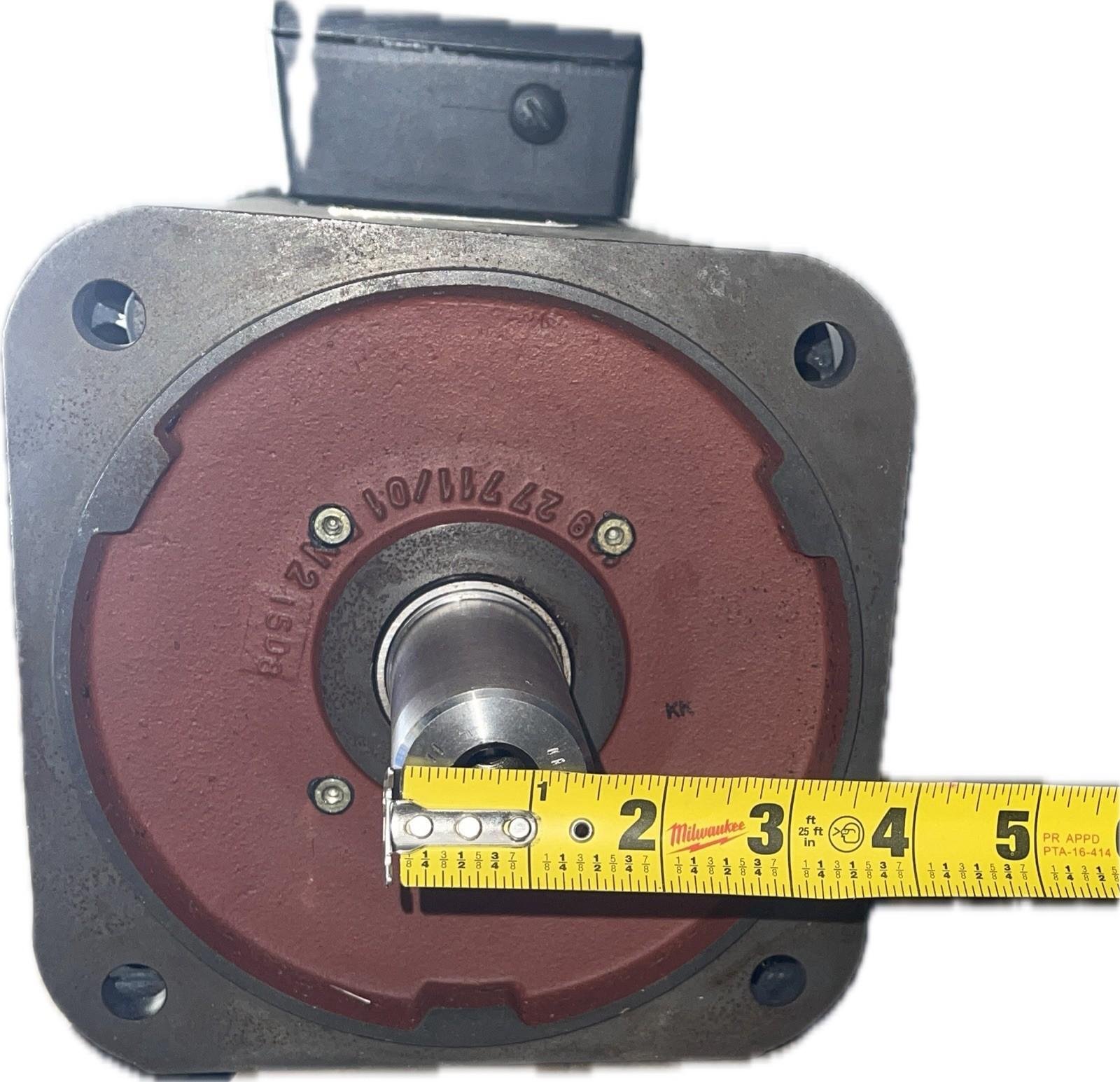

• Approximate shaft diameter: 1.5 in (38 mm)
• Flange OD: ~7 in (178 mm)
• Length: ~30 in (760 mm)
• Ships in original Siemens OEM box
• Professionally packaged and secured for freight
• Ships from Chicago, IL
