Siemens 3VA5460-6EC36-0AA0 3VA5 Molded Case Circuit Breaker 600A 3P TM230 600V

Overview

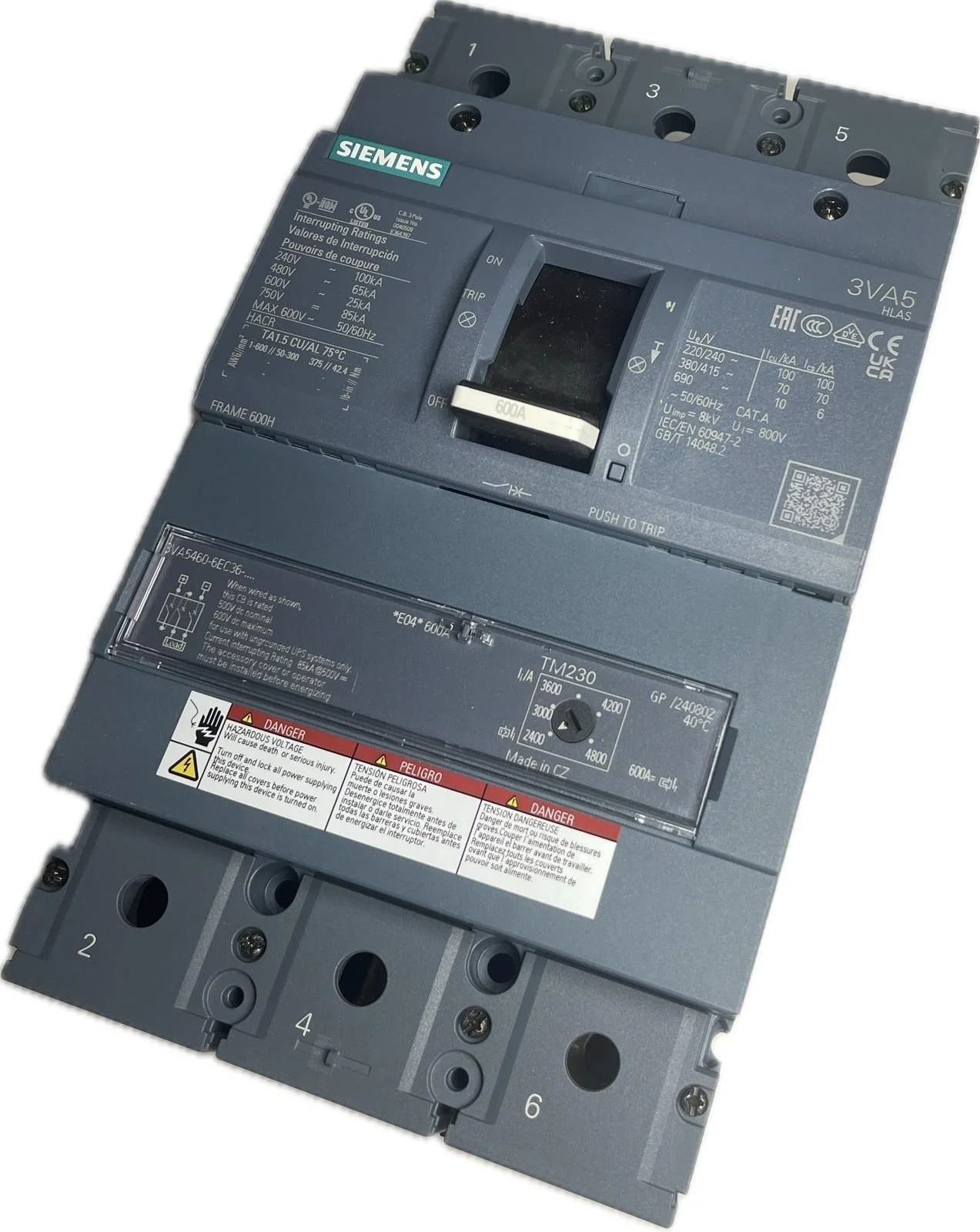

This listing is for a Siemens 3VA5 Molded Case Circuit Breaker, model 3VA54600-6EC36-0AA0.
It’s a premium industrial breaker designed for reliable protection of electrical distribution systems up to 600A and 600VAC.
The breaker is equipped with a TM230 adjustable trip unit providing long-time and short-time overcurrent protection for commercial and industrial power panels.

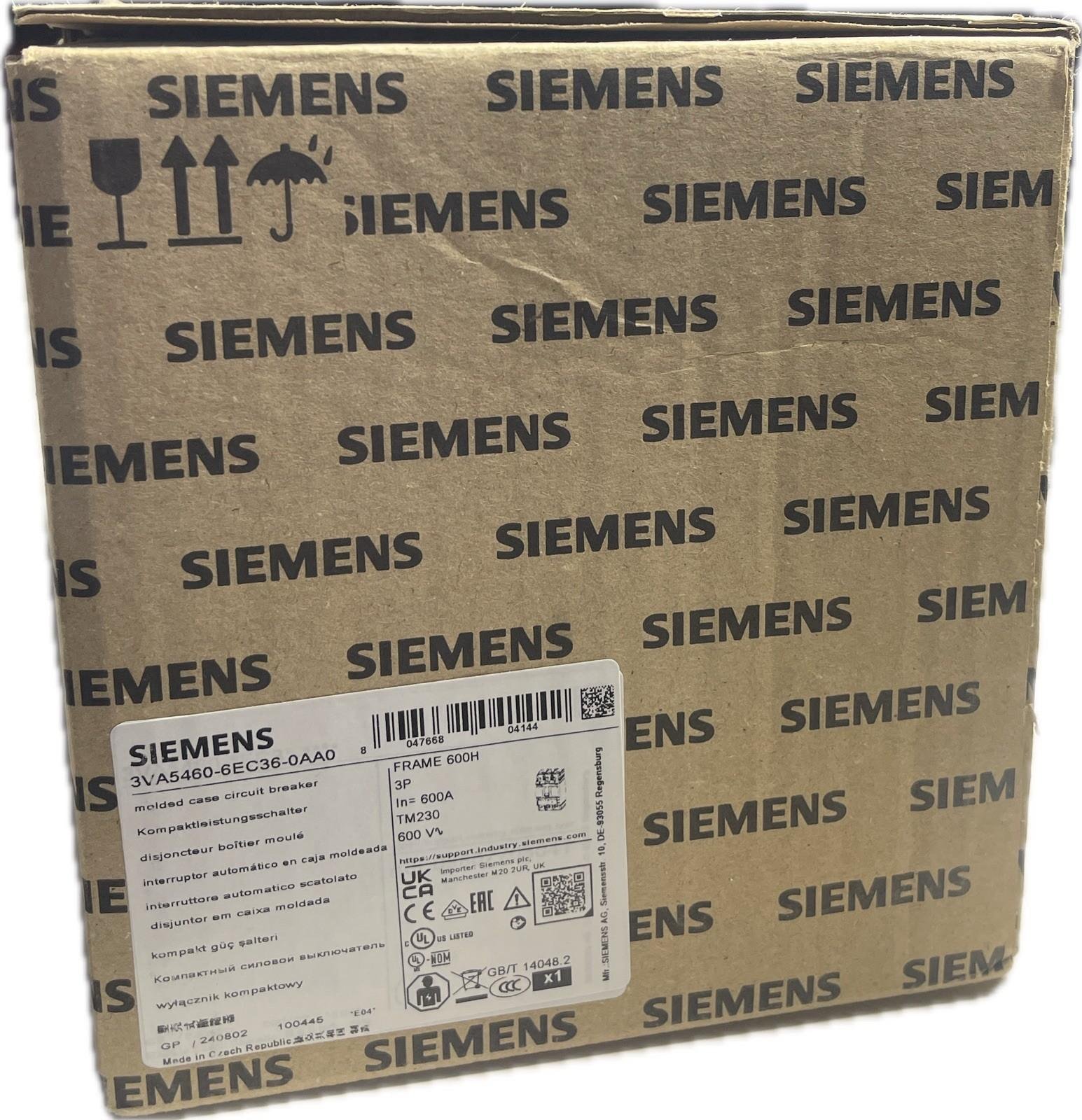

Factory sealed in the original Siemens box — never installed.

Key Features

Manufacturer: Siemens
Series: 3VA5
Model / Part No.: 3VA54600-6EC36-0AA0
Type: Molded Case Circuit Breaker (MCCB)

Amperage Rating: 600A
Voltage Rating: 600VAC
Phase / Poles: 3-Pole
Trip Unit: TM230 — Adjustable
Interrupt Rating (AIC):
• 100kA @ 240V AC
• 65kA @ 480V AC
• 50kA @ 600V AC

Mounting: Bolt-on style
Standards: UL489 • CSA • CE compliant
Condition: Brand New — Factory Sealed Box

Applications

• Industrial power distribution systems
• Manufacturing & process facilities
• Commercial building main/feeder circuits
• Switchgear modernization / panel upgrades
• Service contractors & MRO operations

Shipping & Handling

• Ships within 1 business day from Chicago, IL
• FedEx Ground or UPS available
