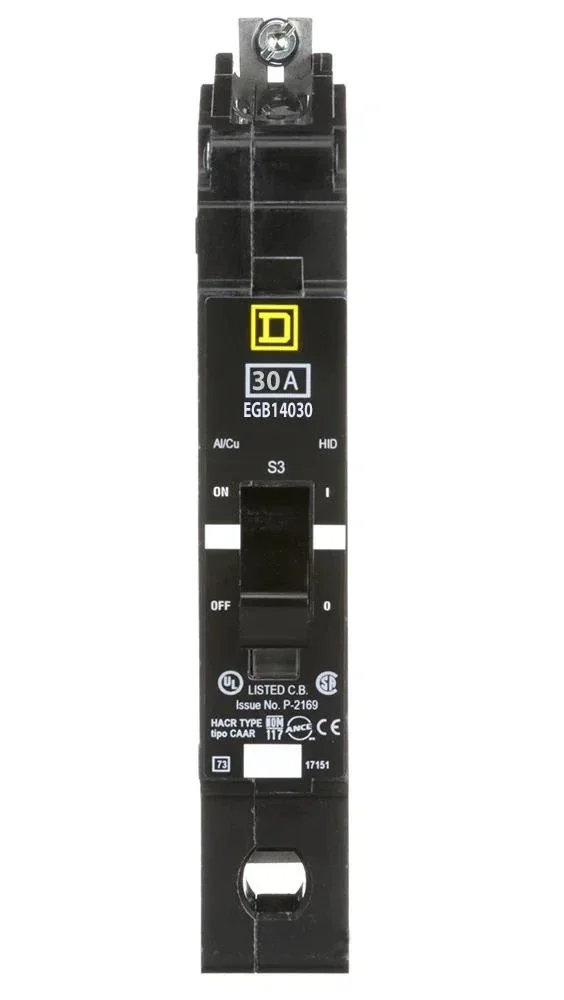

This listing is for a genuine Square D / Schneider Electric EGB14030 Molded Case Circuit Breaker (E-Frame series). Provides reliable thermal-magnetic overcurrent protection at 30A, 1 pole, rated for 277 VAC systems (ideal for lighting, commercial branch circuits, and 277/480Y applications). Compact bolt-on design for easy installation in Square D NF panelboards or compatible enclosures. Unit is brand new, unused — sourced as new surplus stock (never installed, in original packaging).
Manufacturer: Square D / Schneider Electric
Model / Part No.: EGB14030
Series / Family: E-Frame (PowerPact E series)
Amperage Rating: 30A
Poles: 1-Pole
Voltage Rating: 277 VAC (suitable for 120/240/277V systems)
Interrupt Rating (AIC): 65kA @ 120 VAC / 35kA @ 277 VAC / 35kA @ 480Y/277 VAC
Trip Unit: Fixed thermal-magnetic
Mounting: Bolt-on (for NF panelboards and similar)
Wire Range: AWG 14-6 Cu / AWG 12-6 Al
Standards / Certifications: UL 489 listed, CSA, CE marked
Condition: New — surplus (original factory box, pristine)
Additional Ratings: HACR rated, SWD capable (switch duty), 40°C calibrated'
Commercial lighting circuits (277V common)
Branch circuit protection in panelboards
Industrial control panels and OEM equipment
MRO (maintenance, repair, operations) replacements
Upgrades in offices, retail, warehouses, or multifamily buildings
Ships 1 business day from Chicago, IL
Secure packaging to prevent damage
