Square D HOM225 25A 2-Pole Plug-On Homeline Circuit Breaker 120/240V 10kA - New

$6.75

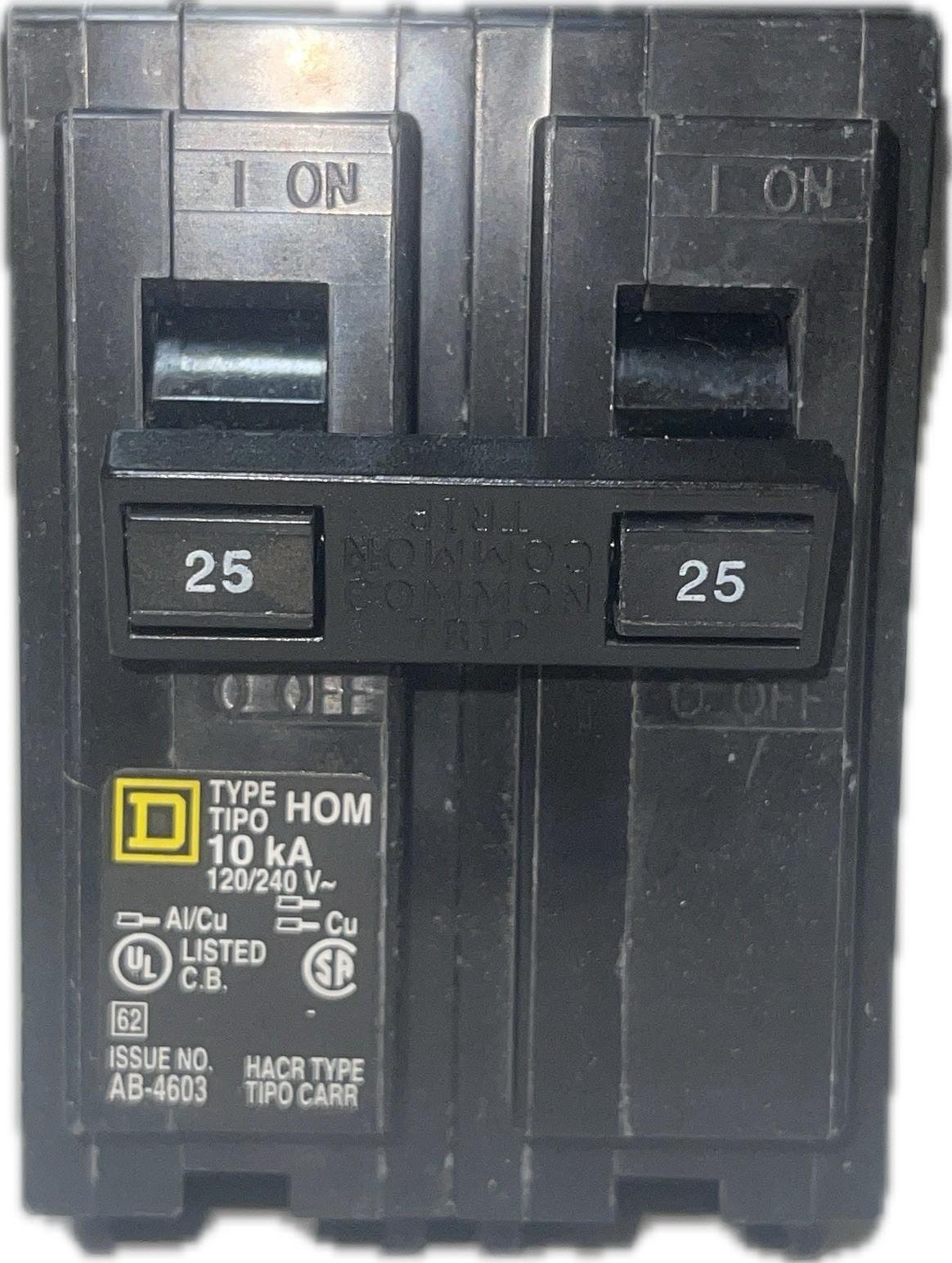

This is a Square D HOM225 25 Amp 2-pole plug-on circuit breaker from the Homeline series. 120/240V, 10kA interrupting rating.

Specifications:

  • Brand: Square D
  • Model / Catalog No.: HOM225
  • Series: Homeline
  • Amperage: 25 A
  • Voltage: 120/240 V AC, 50/60 Hz
  • Number of Poles: 2
  • Interrupting Rating: 10 kA @ 240V
  • Type: Plug-on Circuit Breaker
  • Special Ratings: HACR Type
  • Wire Size: See label for Cu/Al ratings
  • Certifications: UL Listed, CSA

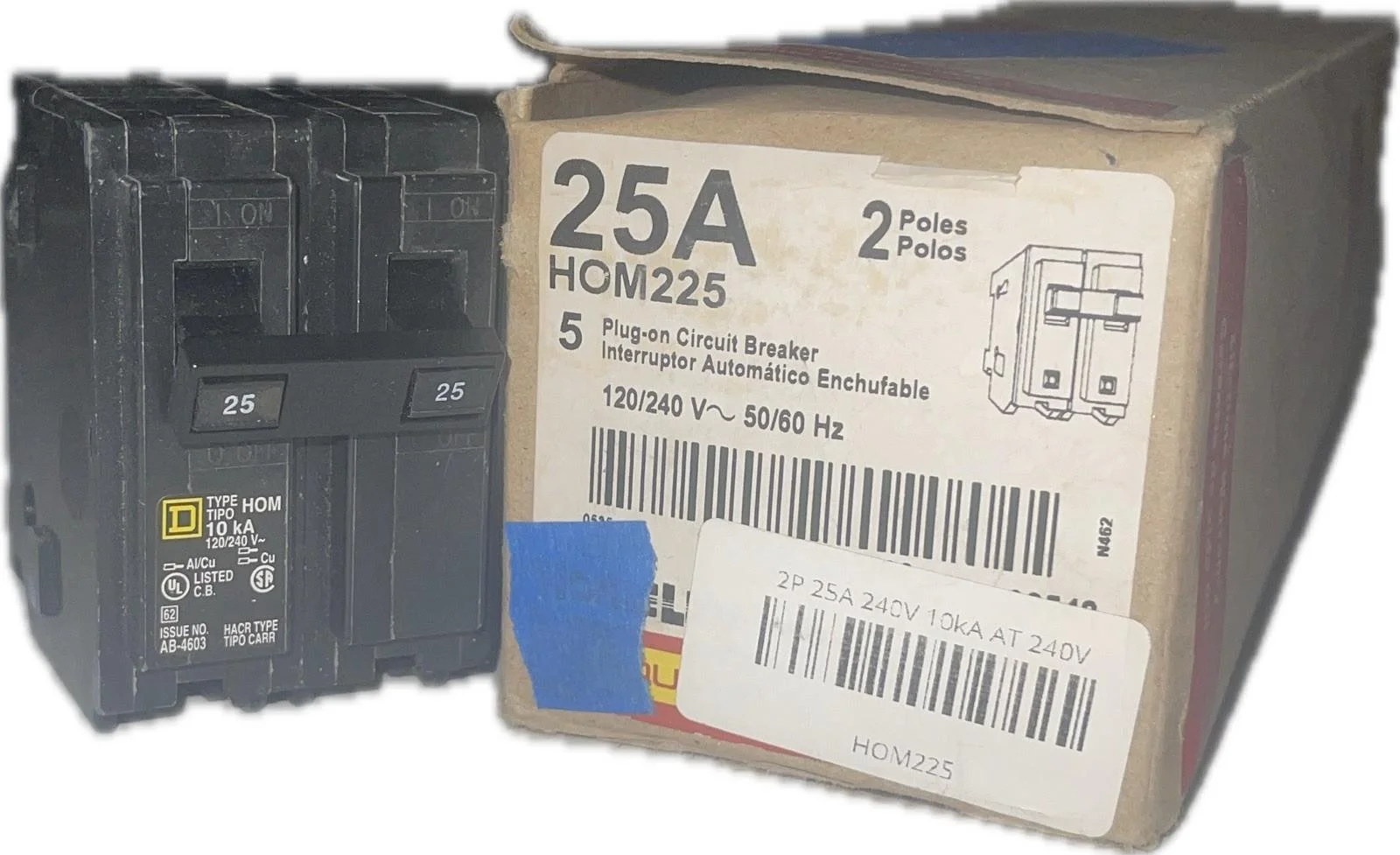

Condition: New / Surplus. In excellent condition with original packaging elements as shown.

Applications: Commonly used in Square D Homeline load centers for residential and light commercial electrical panels. Suitable for general lighting, appliance, and branch circuit protection. HACR rated for HVAC equipment.

Shipping & Handling:

  • Shipped securely packaged.
  • Local pickup available in Chicago, IL area.
  • 30-day returns if not as described.

Contact us with any questions.
