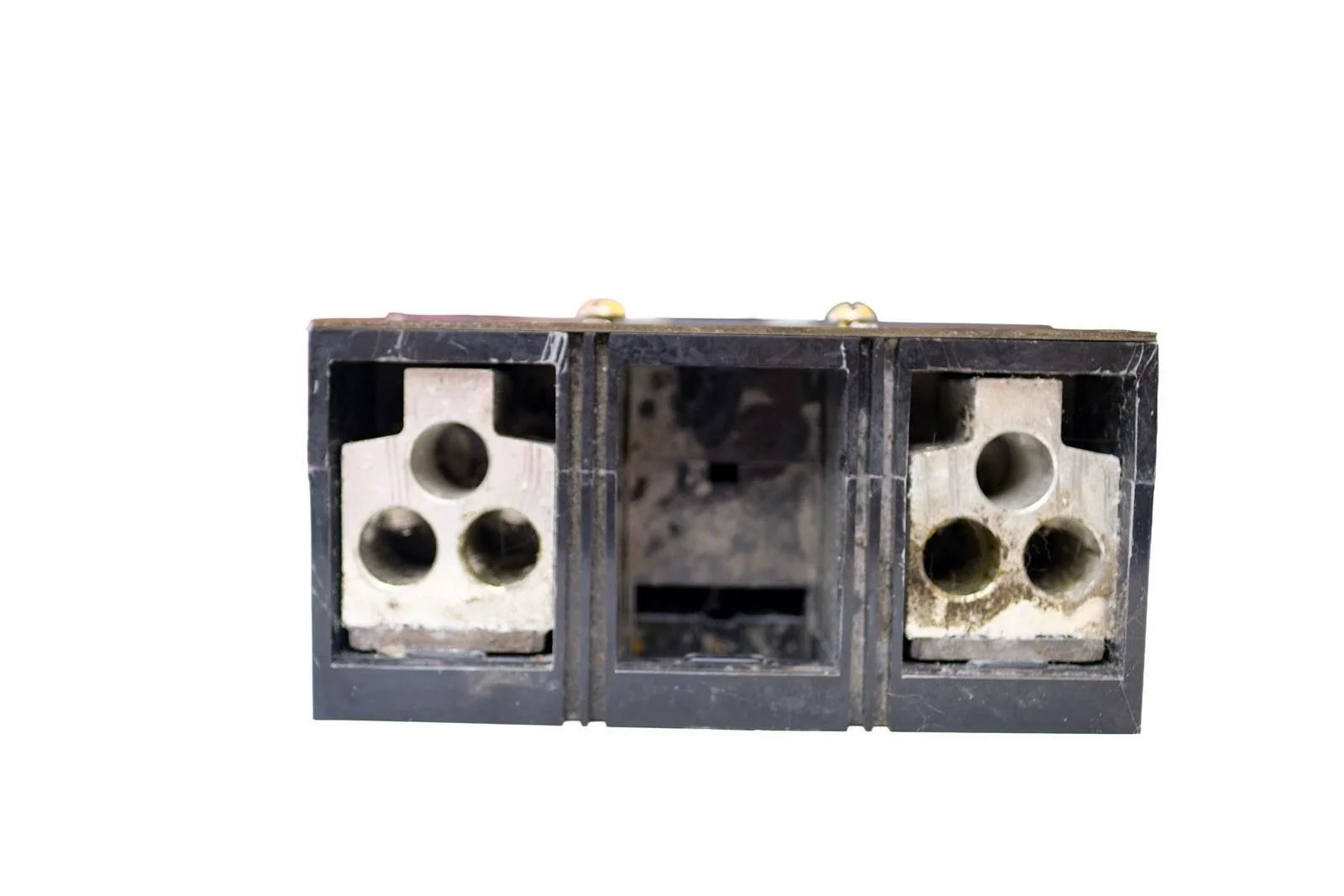

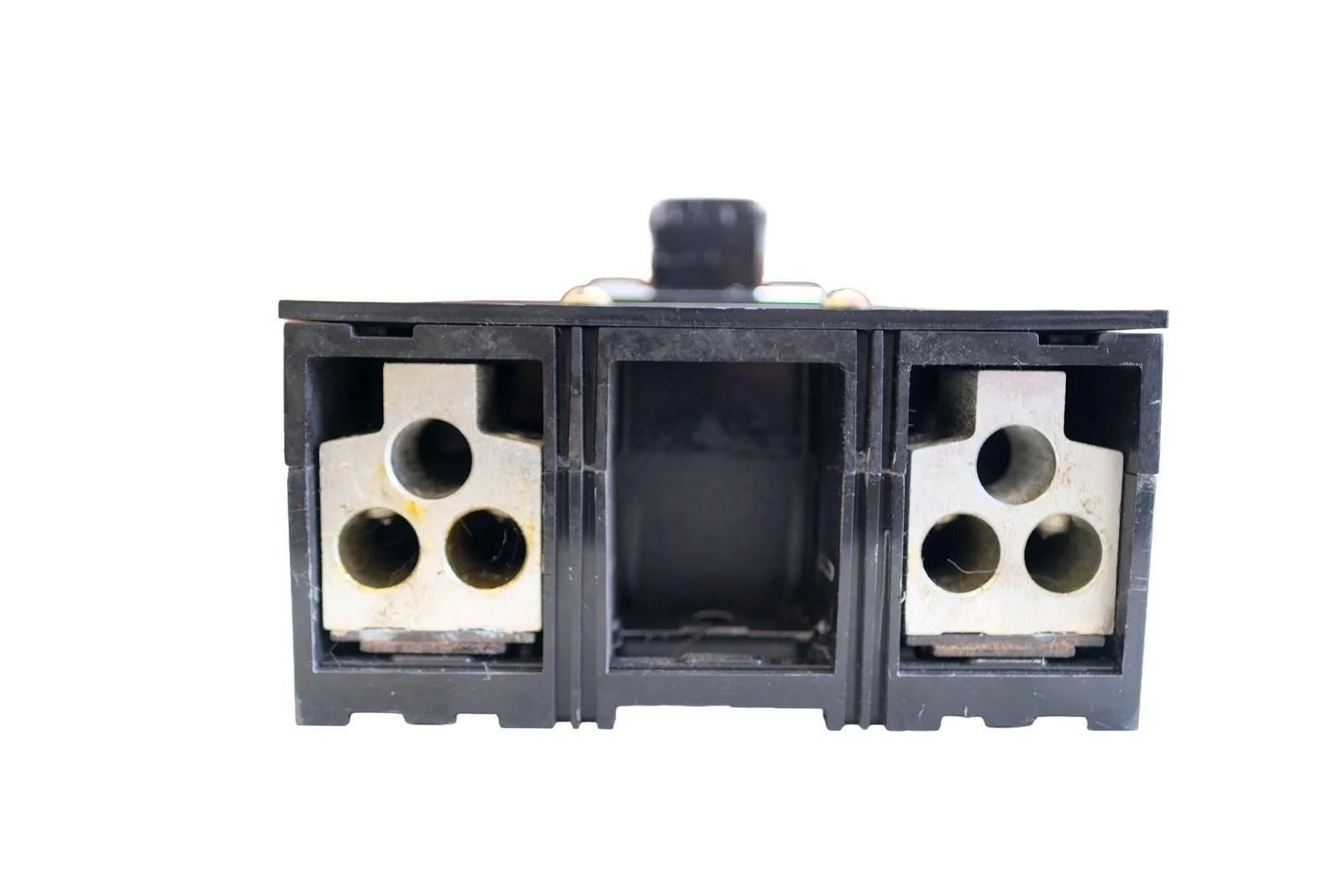

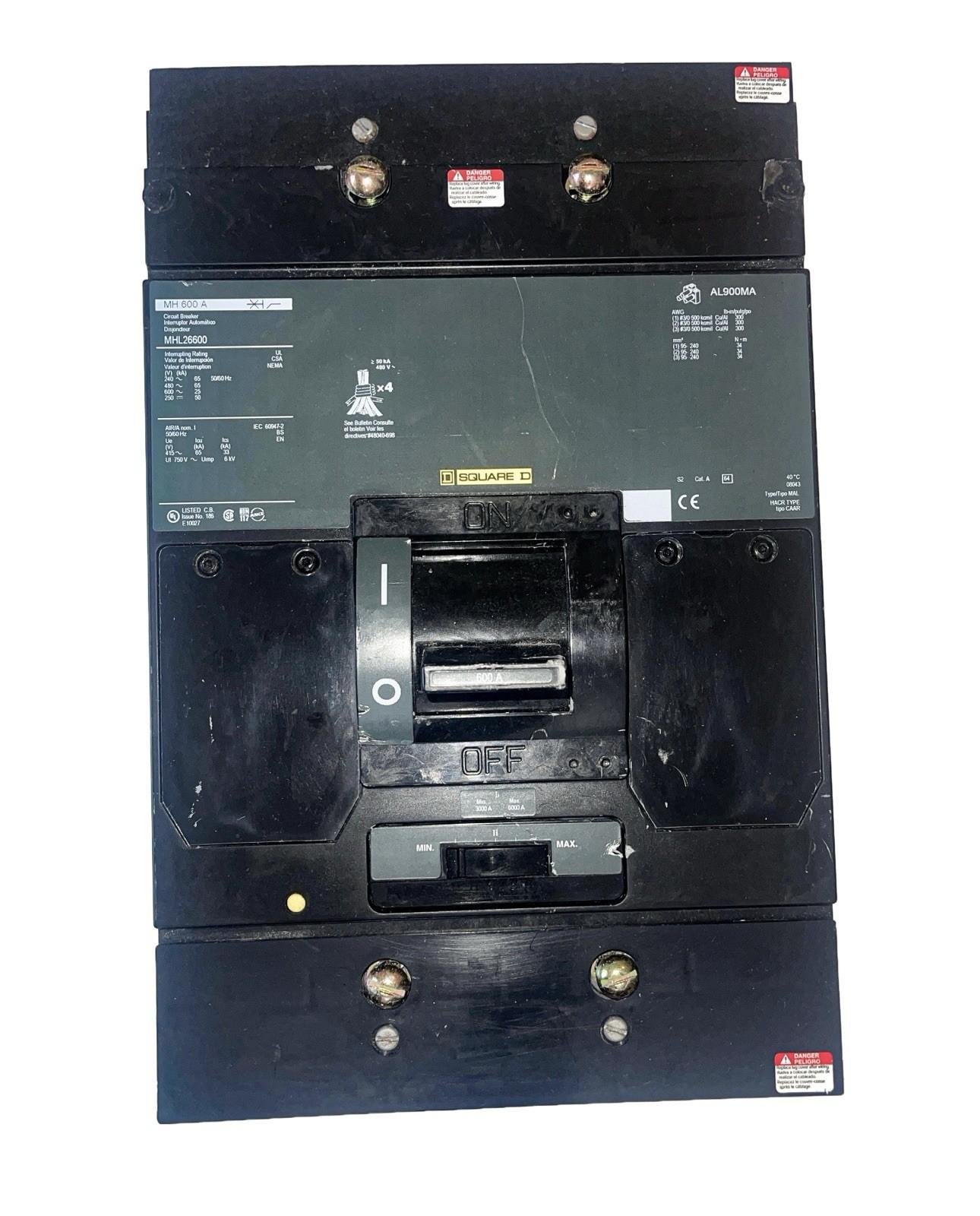

This is a heavy-duty, used surplus Square D PowerPact M-Frame molded case circuit breaker (MCCB) from Schneider Electric, model MHL26600, rated at 600 Amps, 3-Pole, with high interrupting capacity for robust protection in industrial, commercial, or high-power electrical systems. Suitable for panelboards, switchboards, or motor control centers managing substantial loads. The unit exhibits signs of previous use (scratches, dust on surfaces and terminals) but was obtained as surplus inventory—no testing conducted. Features adjustable min/max trip settings and AL900MA lug kit for versatile wiring (supports multiple conductors per phase).

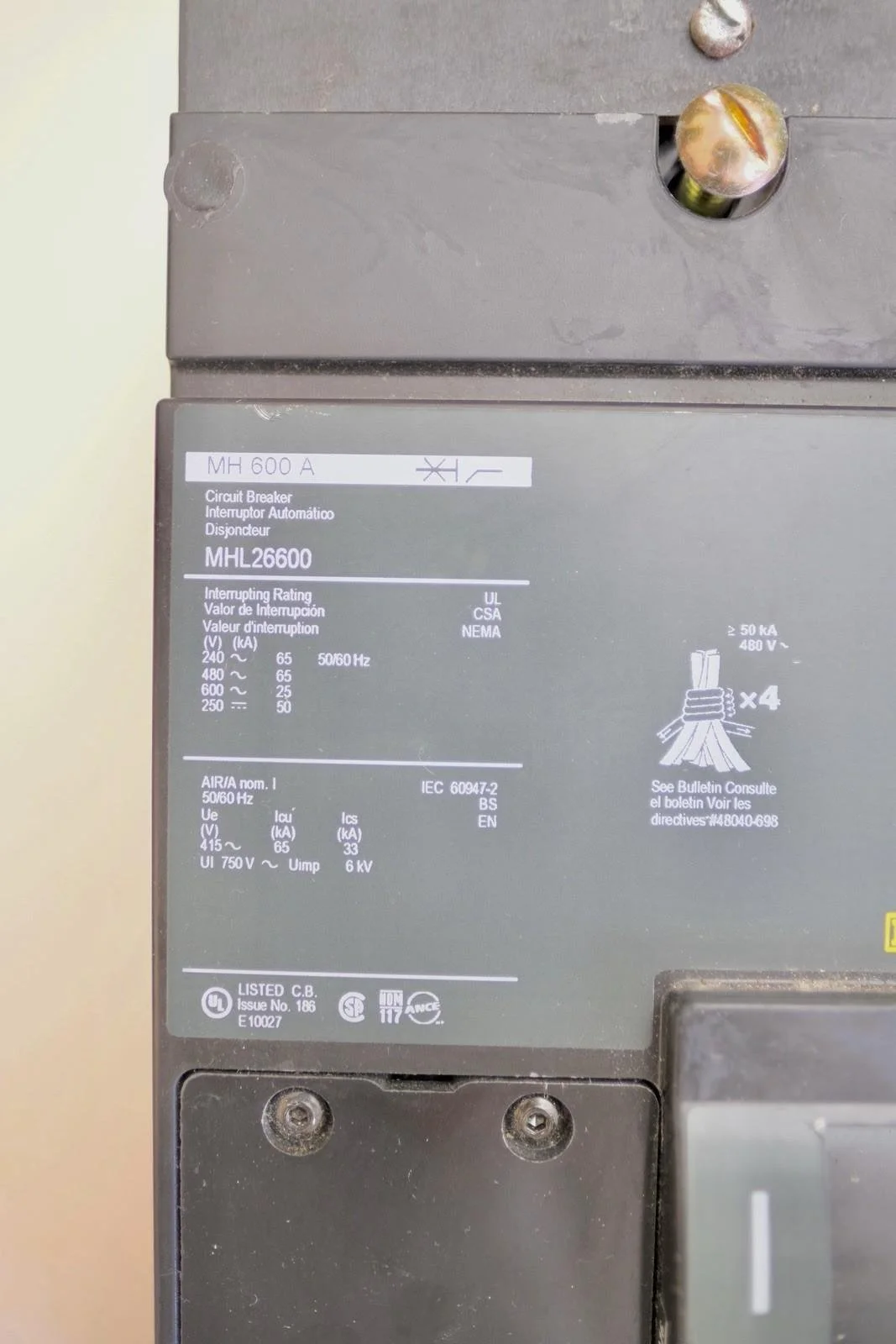

Key Specifications from Label:
• Manufacturer: Square D (Schneider Electric)
• Type: MH 600A / MHL26600
• Amperage: 600A
• Poles: 3
• Voltage: Up to 600V AC (interrupting ratings: 240V/100kA, 480V/65kA, 600V/25kA; DC ratings available)
• Frequency: 50/60 Hz
• AIR: Various kA ratings per voltage
• Wire Size: 1/0-750 kcmil Al/Cu (multi-hole lugs)

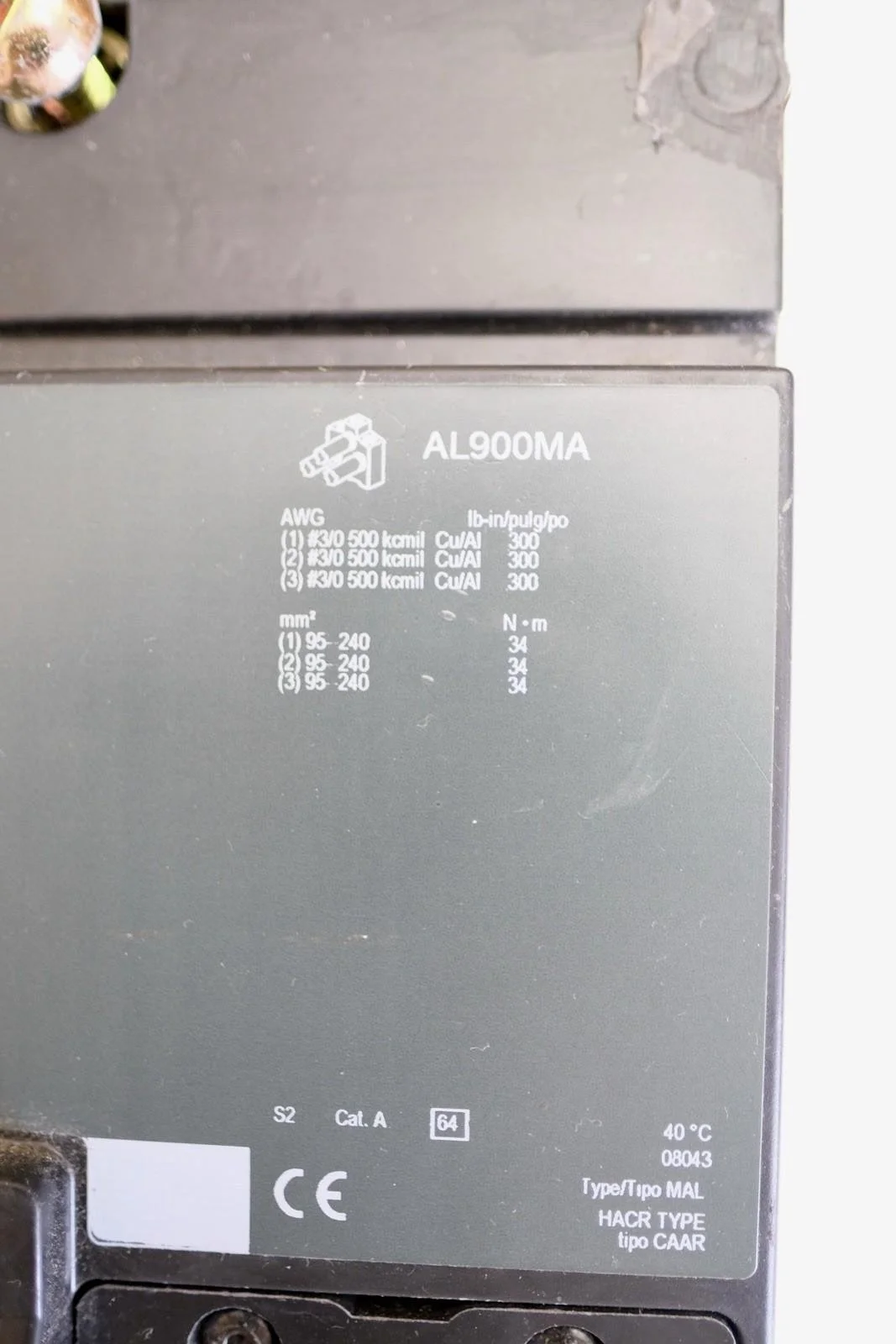

• Accessories: AL900MA (aluminum lugs)
• Standards: UL Listed, CSA, IEC 60947-2, NEMA, CE Marked
• HACR Type for HVAC applications
• Ambient Temp: -5 to +40°C (Type HACR)
• Made in USA
Features:
• Thermal-magnetic trip unit for overload and short-circuit protection
• Plug-in or bolt-on mounting (I-Line compatible)
• Compact M-Frame design for efficient installations
• High breaking capacity for demanding circuits
• Adjustable trip settings with min/max dial
Applications:
• Industrial power distribution and control
• Commercial building electrical panels
• Large motor starters and feeders
• Backup and renewable energy systems
• High-amperage circuit protection
Condition & Inclusions: Used surplus—visible wear from prior handling/installation, including dirt and minor cosmetic marks, but structurally sound. Includes breaker with integrated AL900MA lugs as shown. Sold as-is, untested (recommend professional verification). No original packaging.
- Shipping: Ships from Chicago, IL
