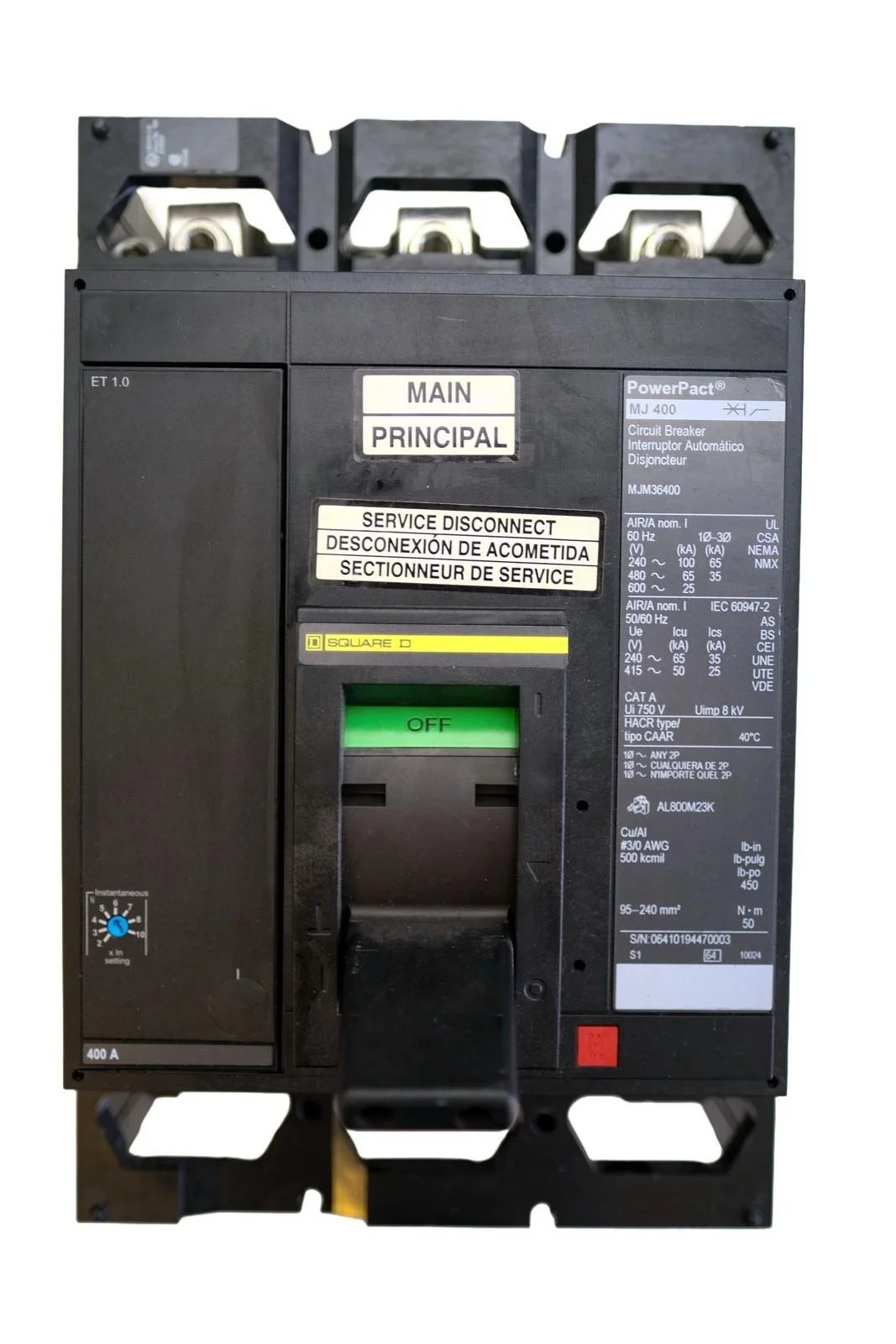

Genuine Square D / Schneider Electric PowerPact molded case circuit breaker rated 400 Amps, 3 Pole, with ET 1.0 trip unit. Suitable for industrial and commercial distribution equipment including switchboards, panelboards, MCCs, and service disconnect applications.
Specifications
• Manufacturer: Square D / Schneider Electric
• Series: PowerPact

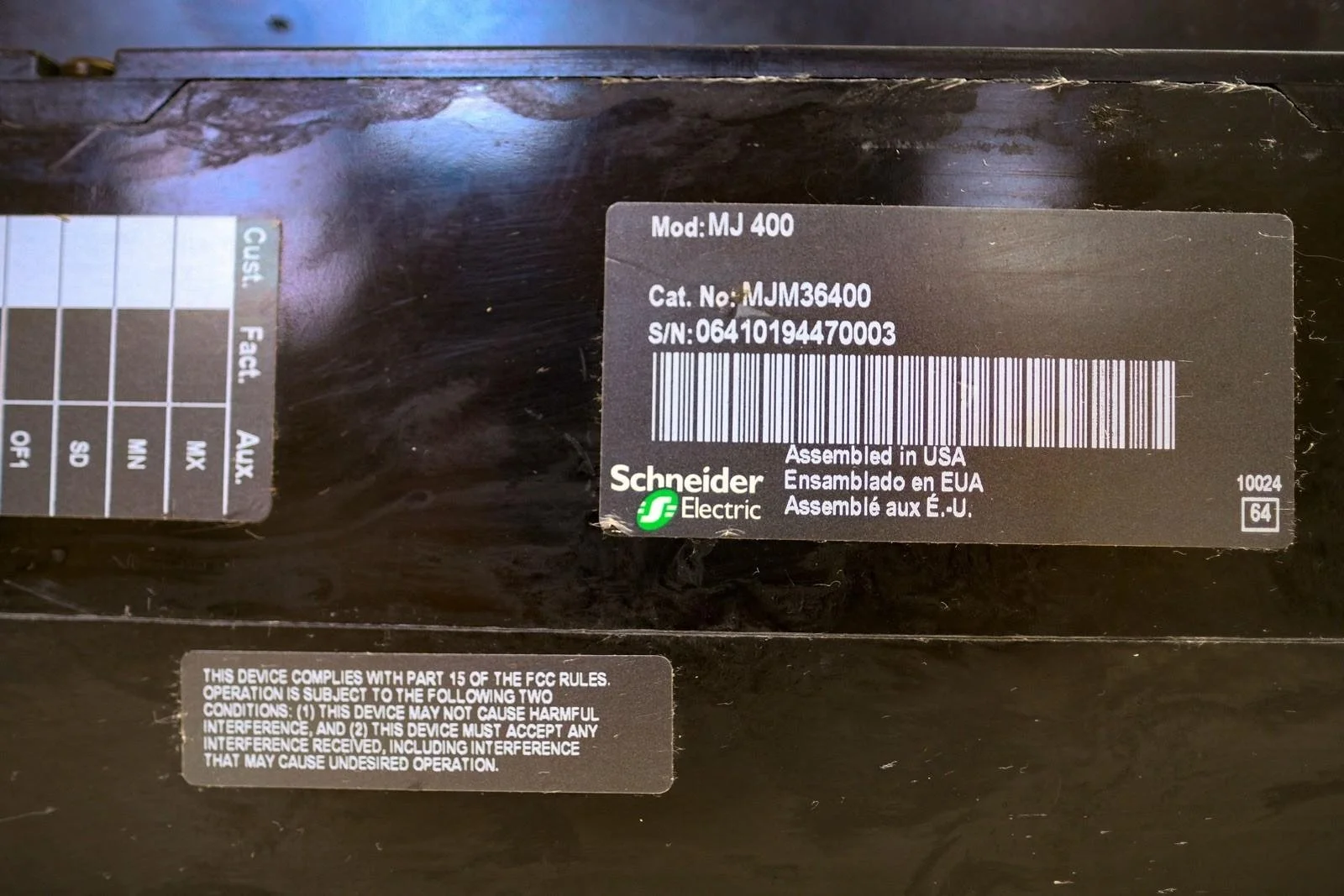

• Model: MJM36400
• Frame: MJ 400
• Trip Unit: ET 1.0
• Amp Rating: 400A
• Poles: 3 Pole
• Voltage Rating: 600V AC
• Interrupting Capacity:
• 100kA @ 240V
• 65kA @ 480V
• 25kA @ 600V

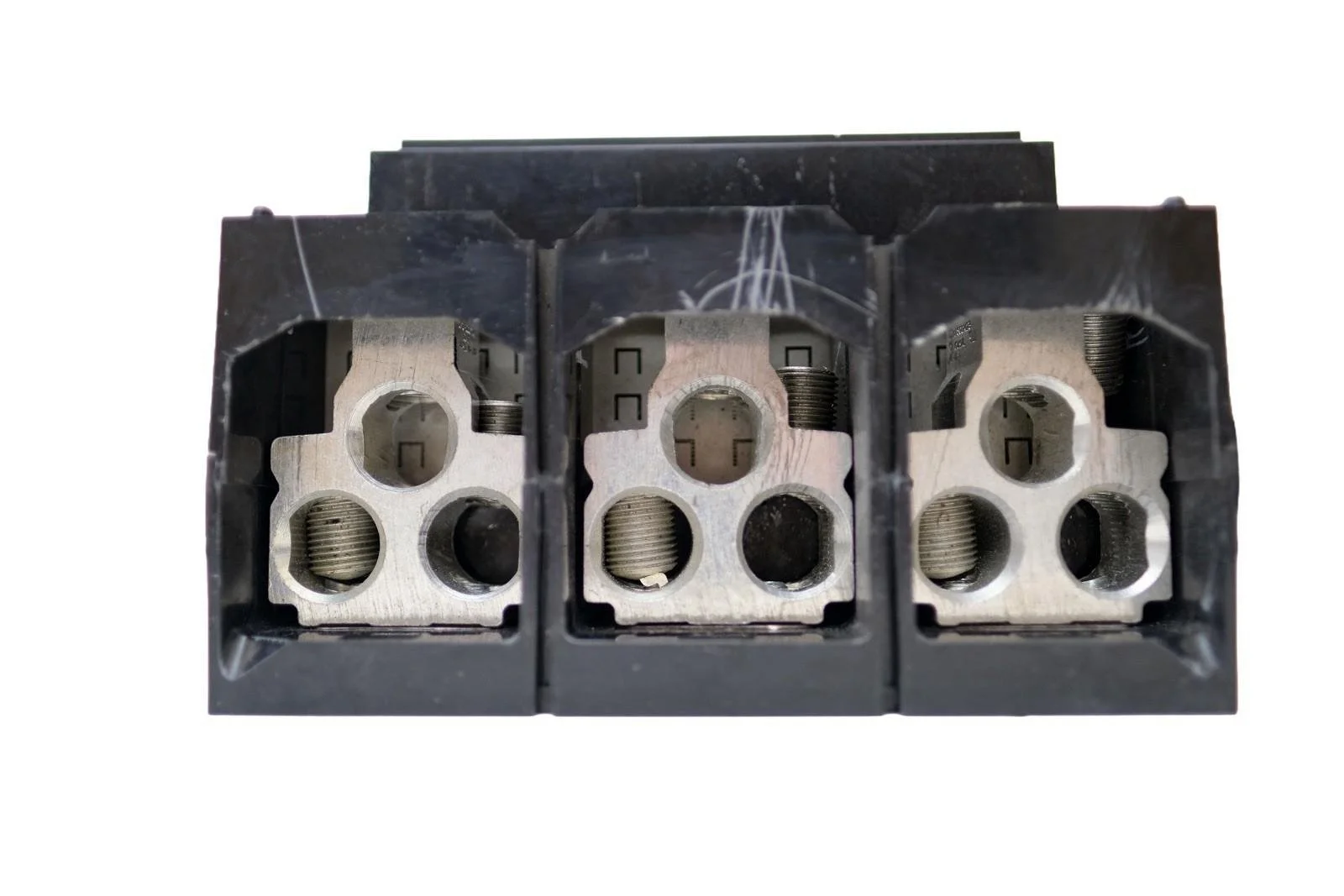

Lug Information
• Lug Kit: AL800M23K
• Conductor Range:
• #3/0 AWG to 500 kcmil Cu/Al
• 95–240 mm²
• Torque: 450 lb-in / 50 N·m
Applications
Commonly used in:
• Main breakers
• Service disconnects
• Industrial switchgear
• Commercial distribution panels
• Motor control centers
• Feeder protection
Condition

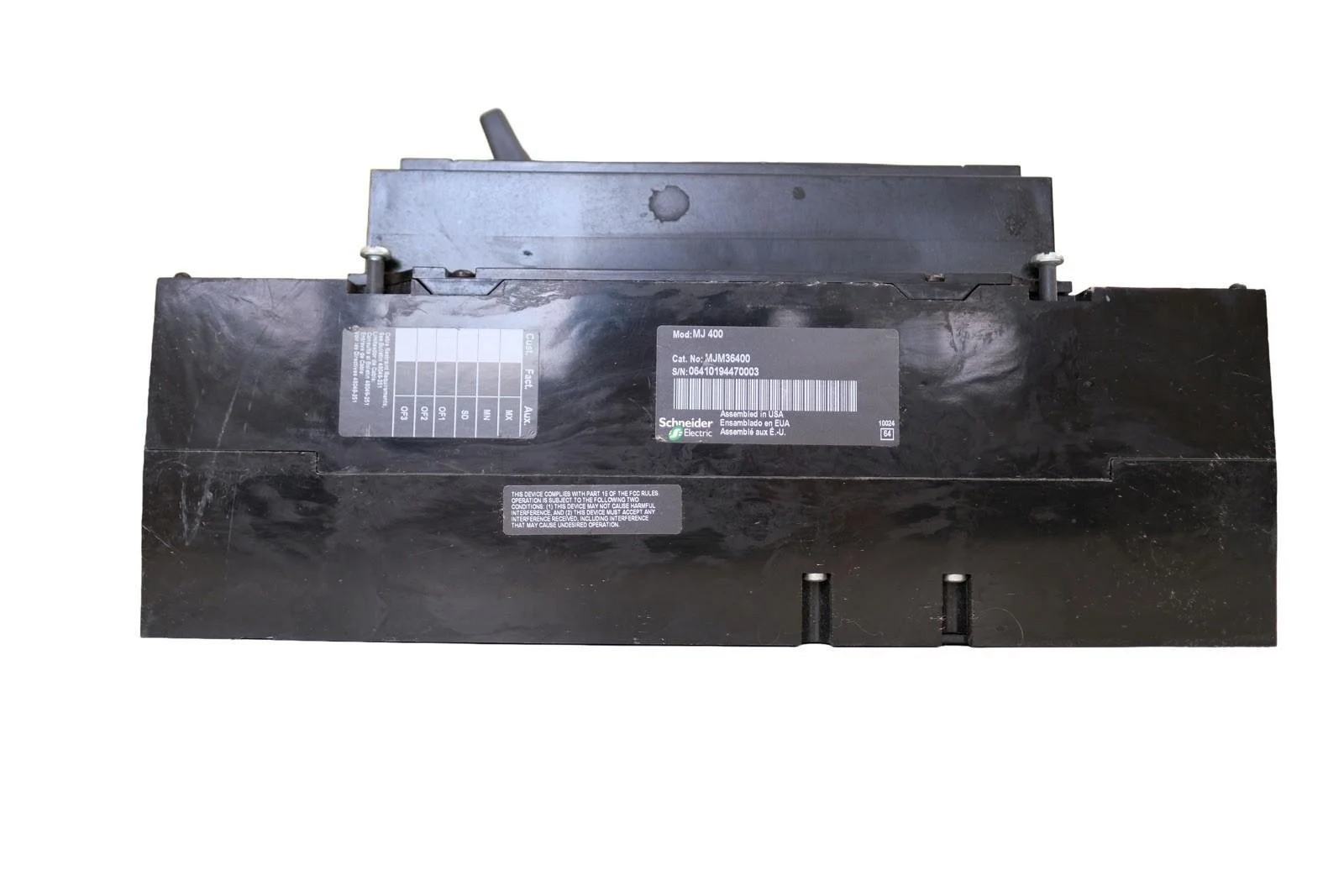

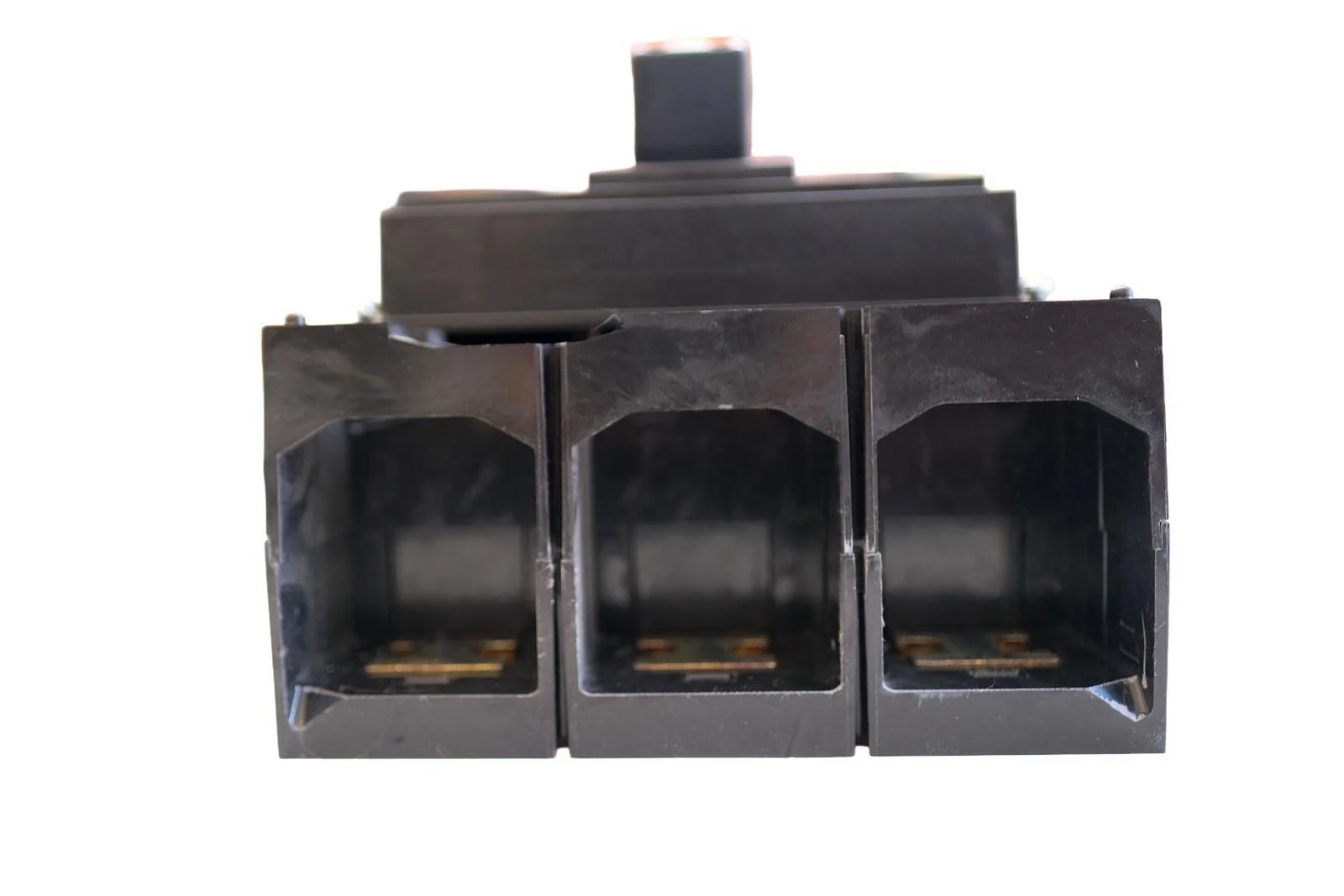

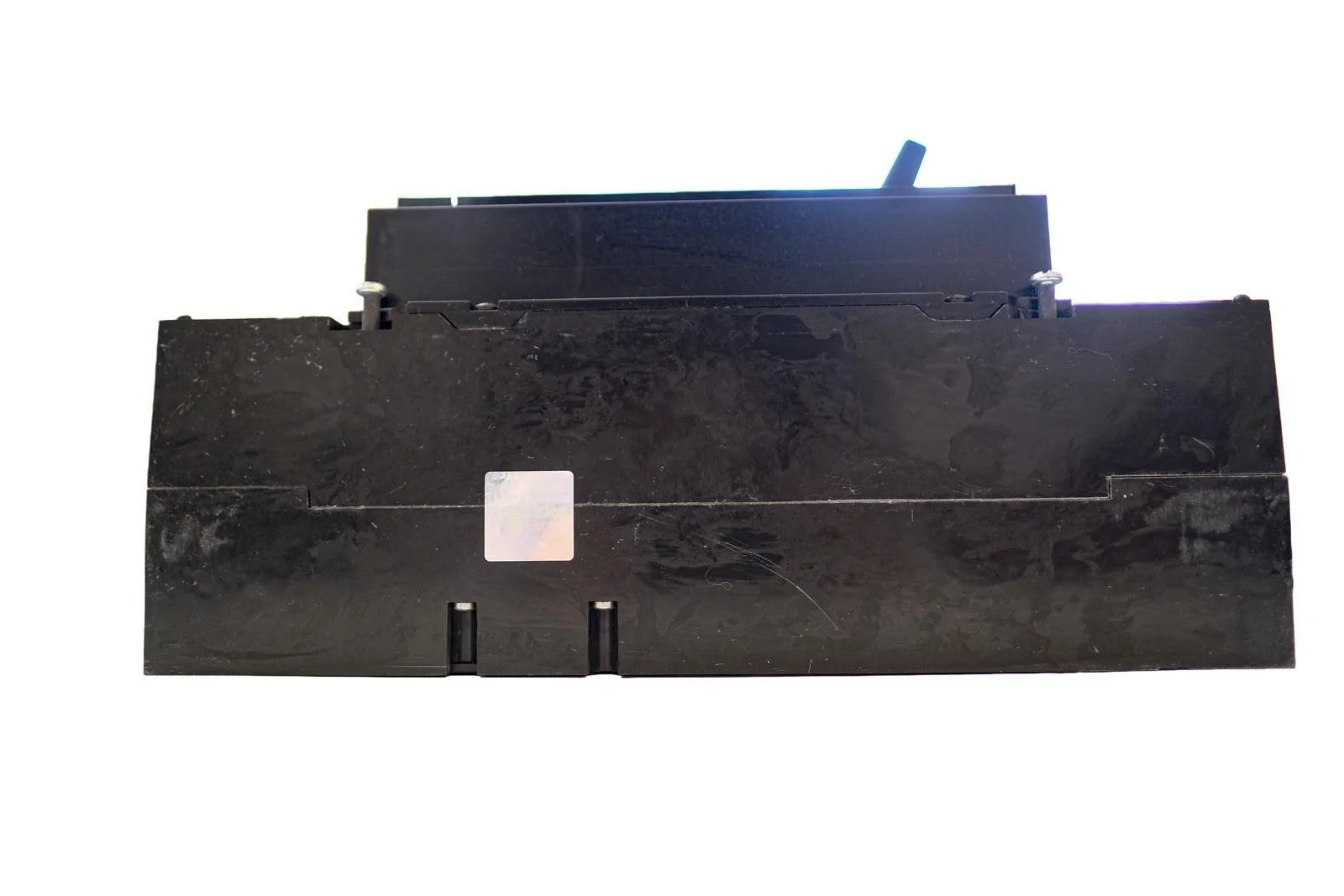

Used breaker in good physical condition with normal cosmetic wear from service/storage. Terminals, housing, and handle area shown in photos.
Shipping
Ships securely packaged. Local pickup available in Chicago, IL.
