Overview

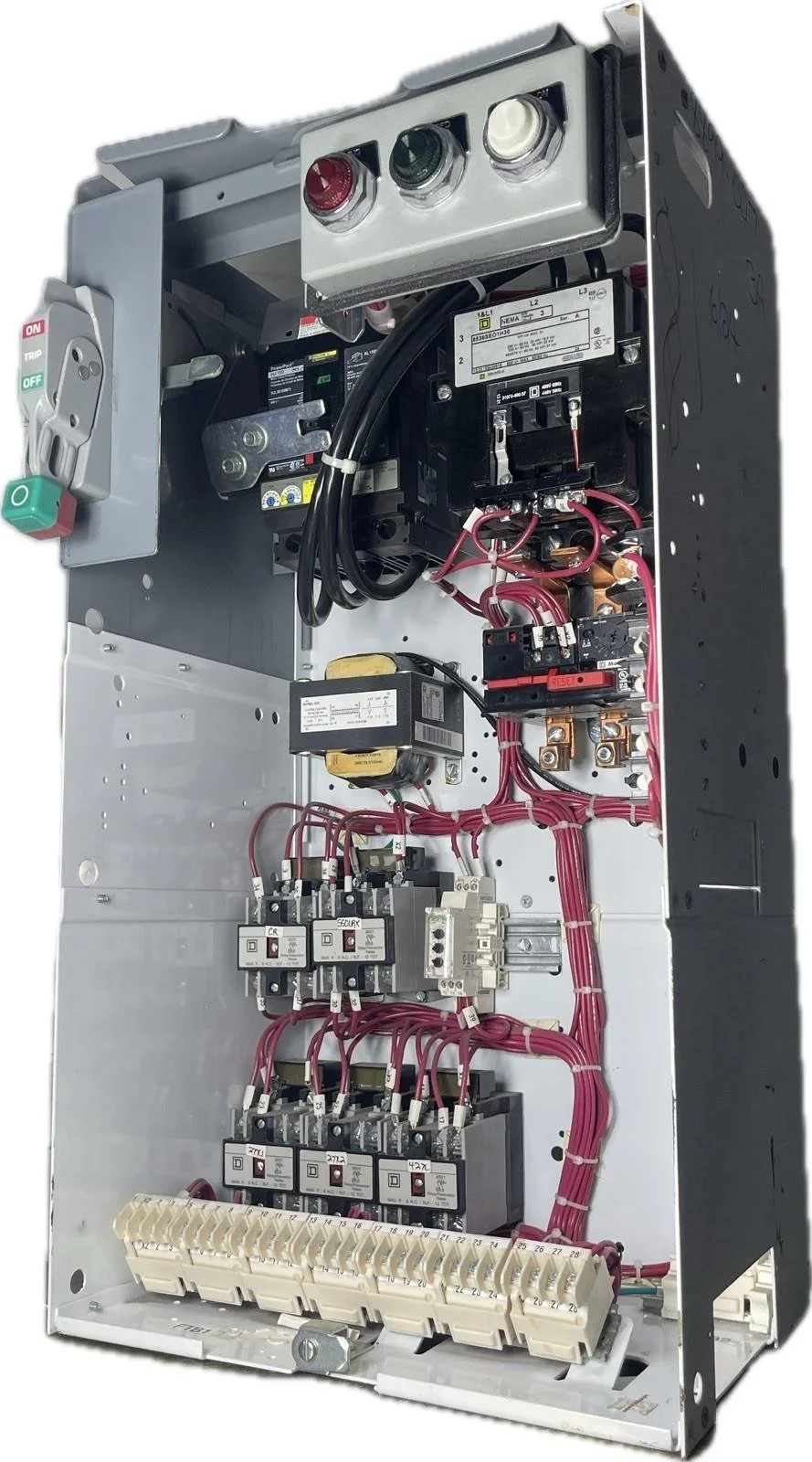

This Square D Model 6 Motor Control Center (MCC) bucket is a fully equipped Size 3 combination starter — far beyond a standard empty or lightly outfitted bucket. It includes a 100A Square D PowerPact HJ36100M73 3-pole breaker, a multi-tap control power transformer (240/480V to 120V), Motor Logic solid-state overload relay, and multiple Square D 8501 control relays with pre-wired pilot lights and pushbuttons. It’s an ideal drop-in for MCC expansions or upgrades where you want a prewired, fully featured section.
Key Features
Manufacturer: Square D / Schneider Electric
MCC Type: Model 6 Combination Motor Starter Bucket

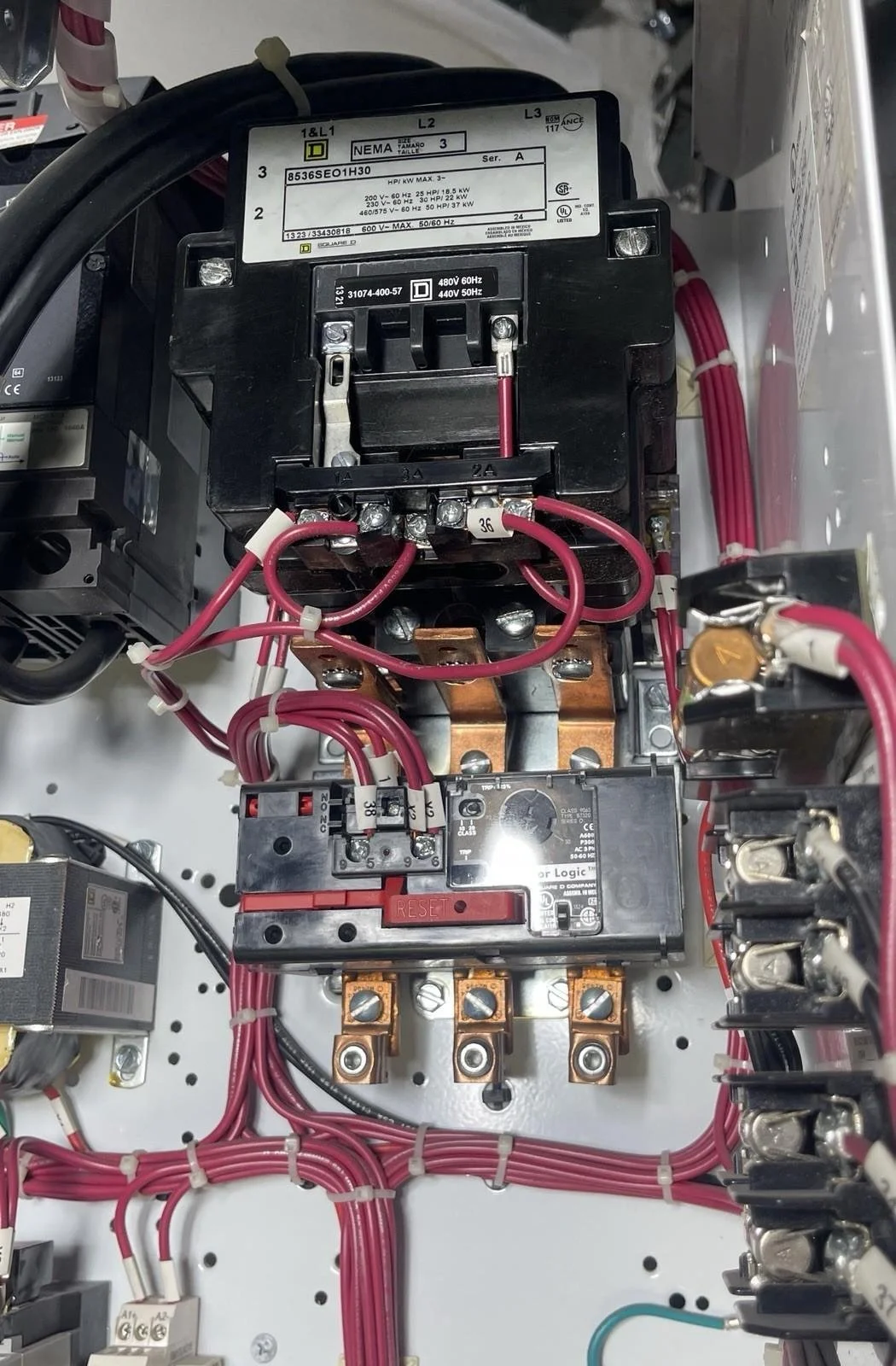

Starter: 8536SEO1H30 — NEMA Size 3 (supports 40 HP @ 230V or 50 HP @ 460V)

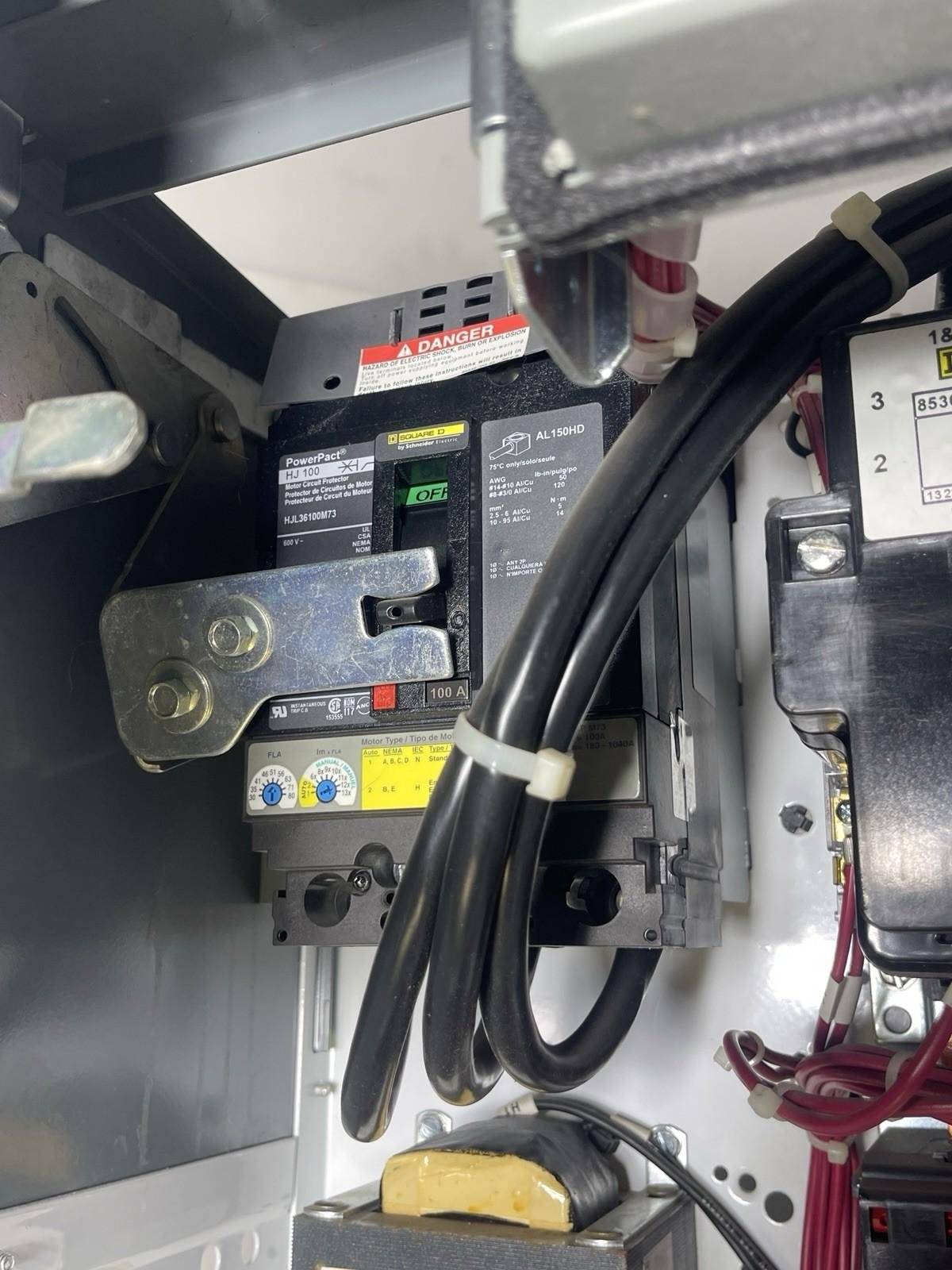

Circuit Breaker: PowerPact HJ36100M73, 100 Amp, 3-Pole, 600 VAC
Overload Protection: Motor Logic adjustable solid-state overload relay
Control Power: Multi-tap transformer (240/480V primary → 120V secondary)

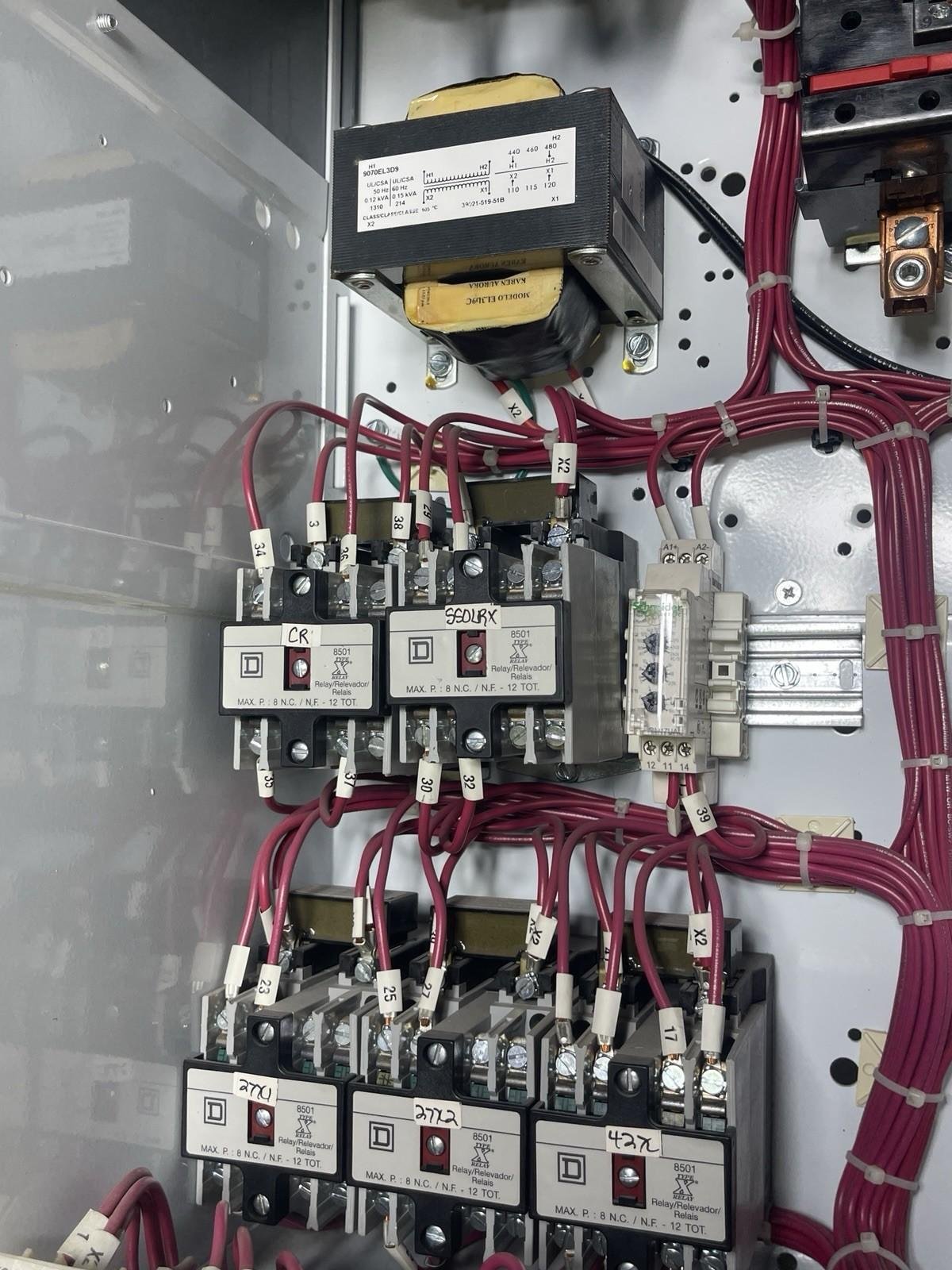

Auxiliary Control: Square D 8501 control relays and RM17UAS15 voltage/phase monitoring relay
Door Components: ON/TRIP/OFF handle, pilot lights, and pushbuttons prewired
Dimensions: L 11" x W 14" x 26 5/16" approx.
Condition: Used — clean, pulled from working service and visually inspected
Applications
Industrial MCC expansions or retrofits
Pumps, compressors, conveyors, HVAC, and process equipment
Facilities looking for complete prewired motor starter sections
