Overview

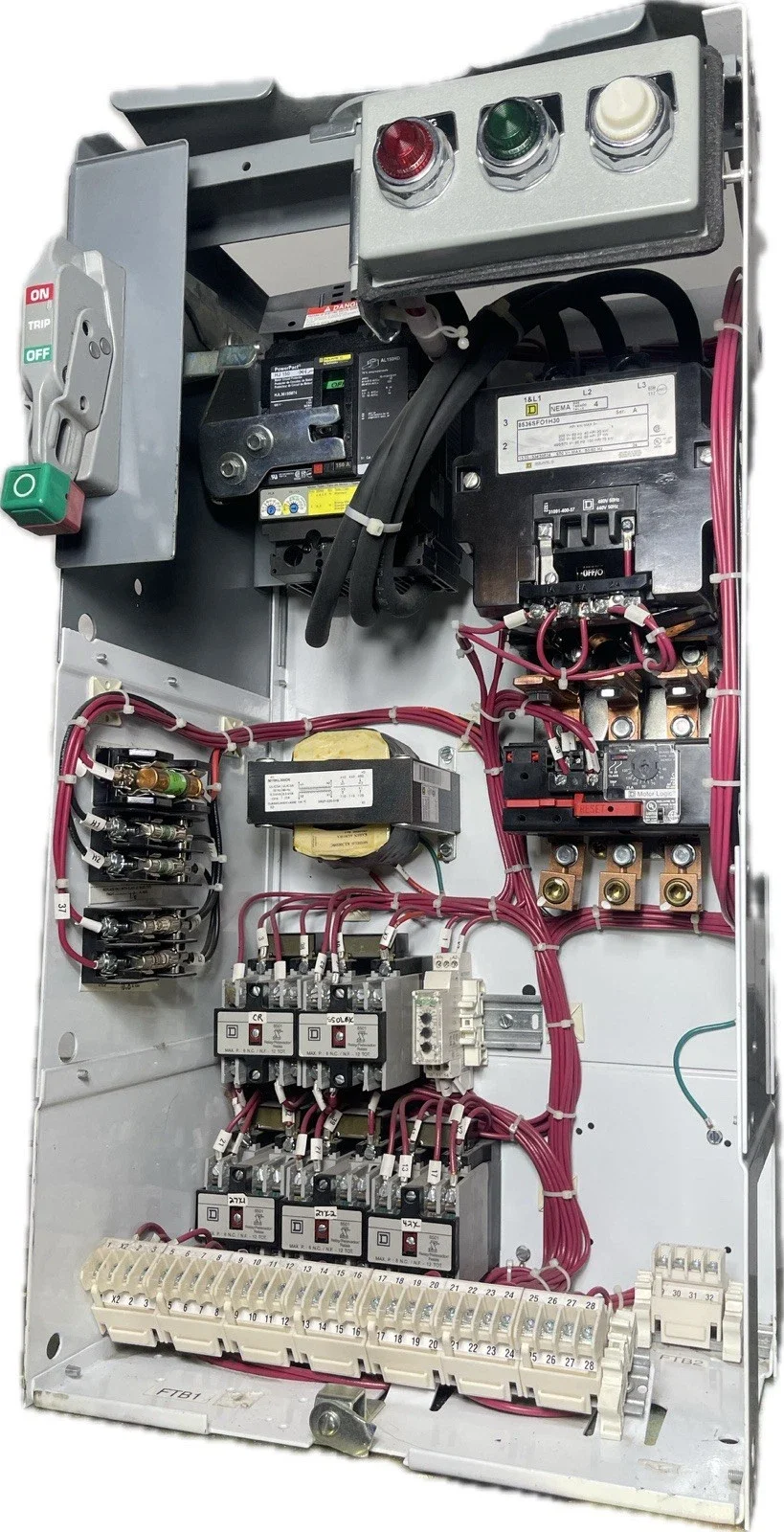

This listing is for a used surplus Square D Model 6 Motor Control Center bucket. The bucket contains a PowerPact breaker catalog HJL36150M74 (150 A, 3-pole, 600 V), NEMA Size 4 contactor catalog 8536SFO1H30, Motor Logic overload relay class 9065, control transformer, red/green/white pilot lights, push buttons, terminal blocks labeled X1–X32 (FTB1 & FTB2), and associated relays/auxiliaries. Pulled from industrial service. The bucket retains the original plug-on jaws (with joint compound caution label), handle mechanism (ON/OFF/TRIP), and internal wiring. All major components are present and intact with no visible arc damage or heavy corrosion.
Key Features
Manufacturer: Square D / Schneider Electric
MCC Series: Model 6

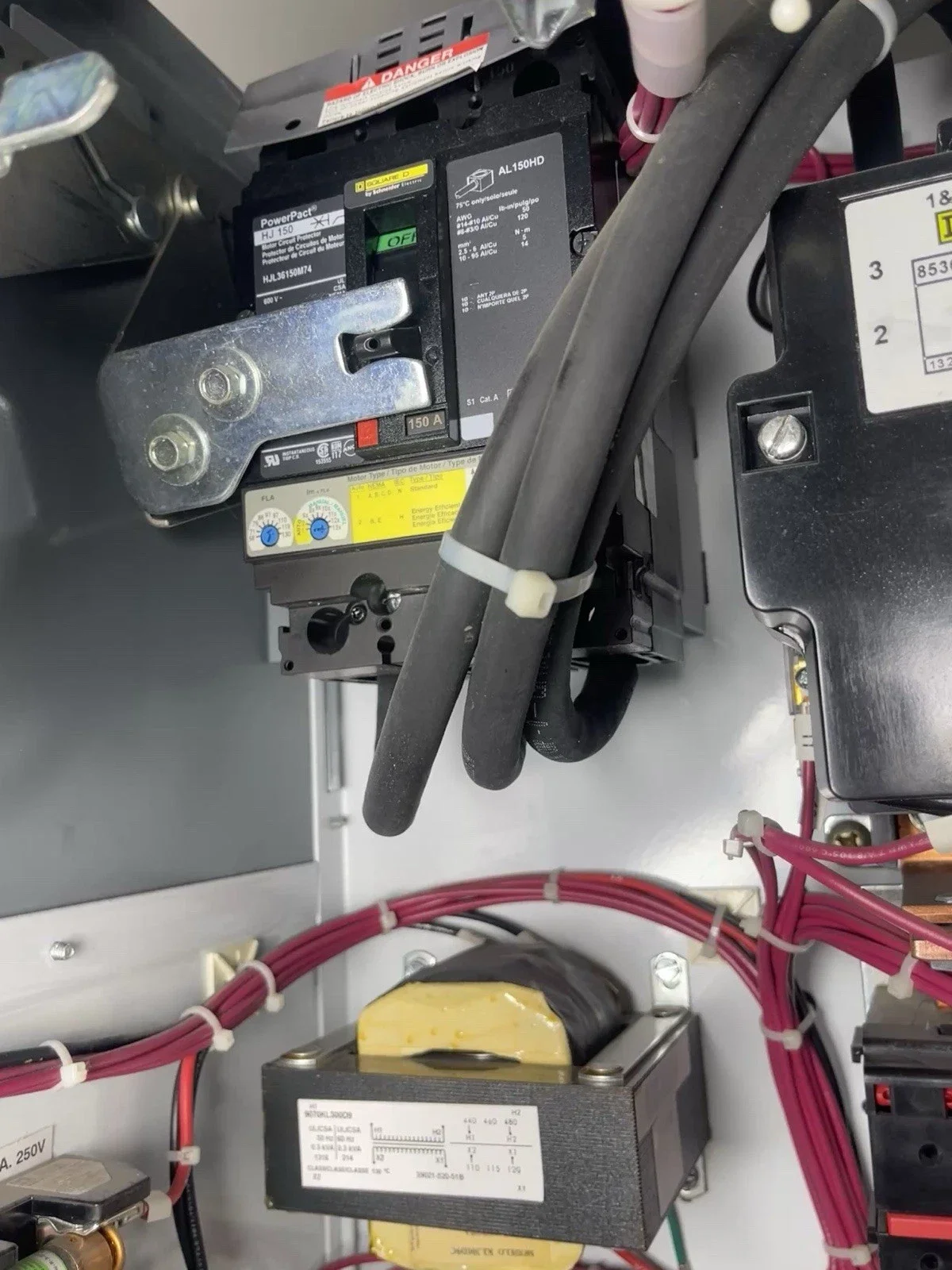

Breaker: PowerPact H-Frame HJL36150M74

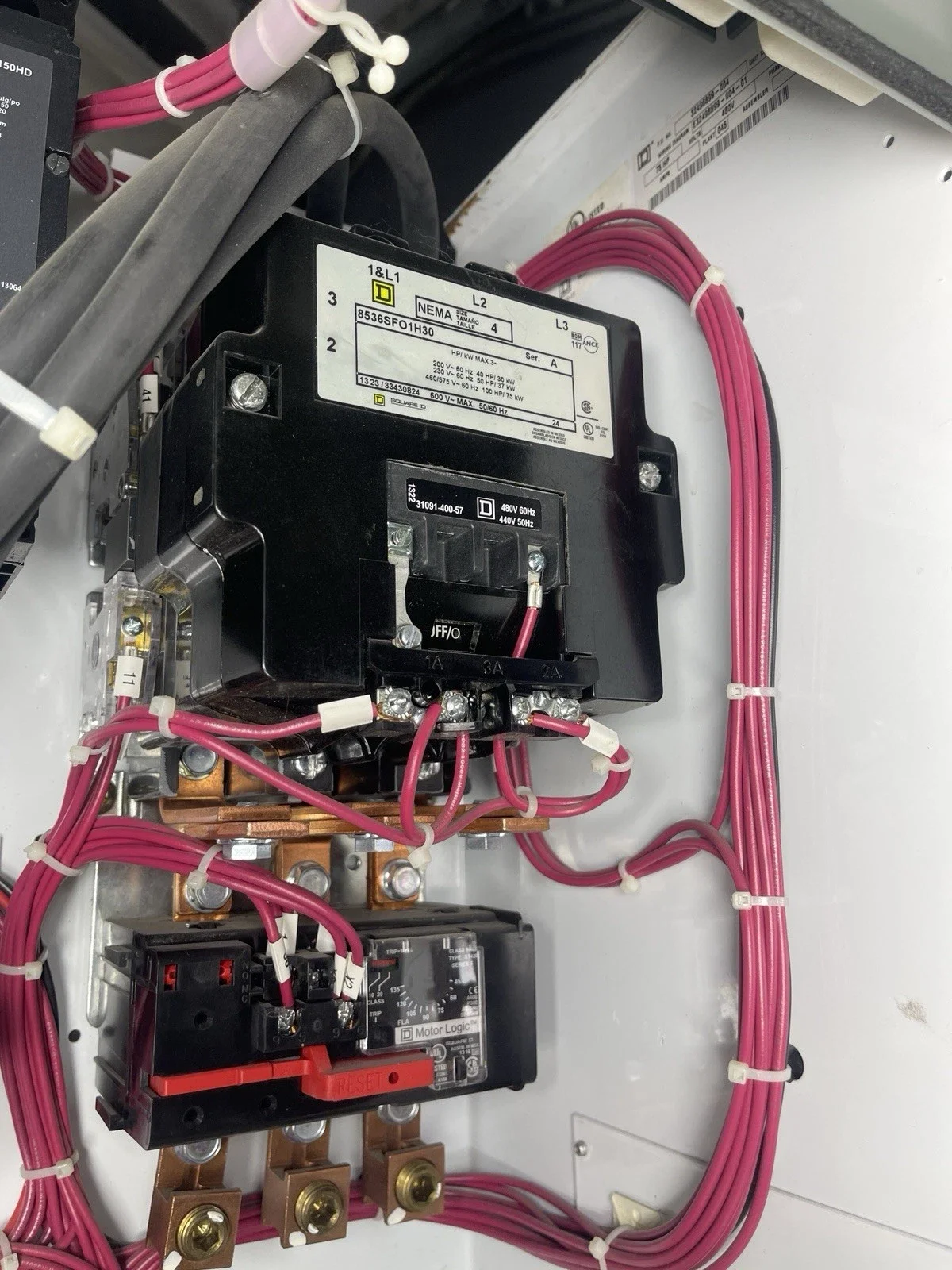

Contactor: 8536SFO1H30
Overload Relay: Motor Logic class 9065 (solid-state electronic)
Control Transformer: Present (primary 480 V)
Pilot Devices: Red, green, white lights + push buttons

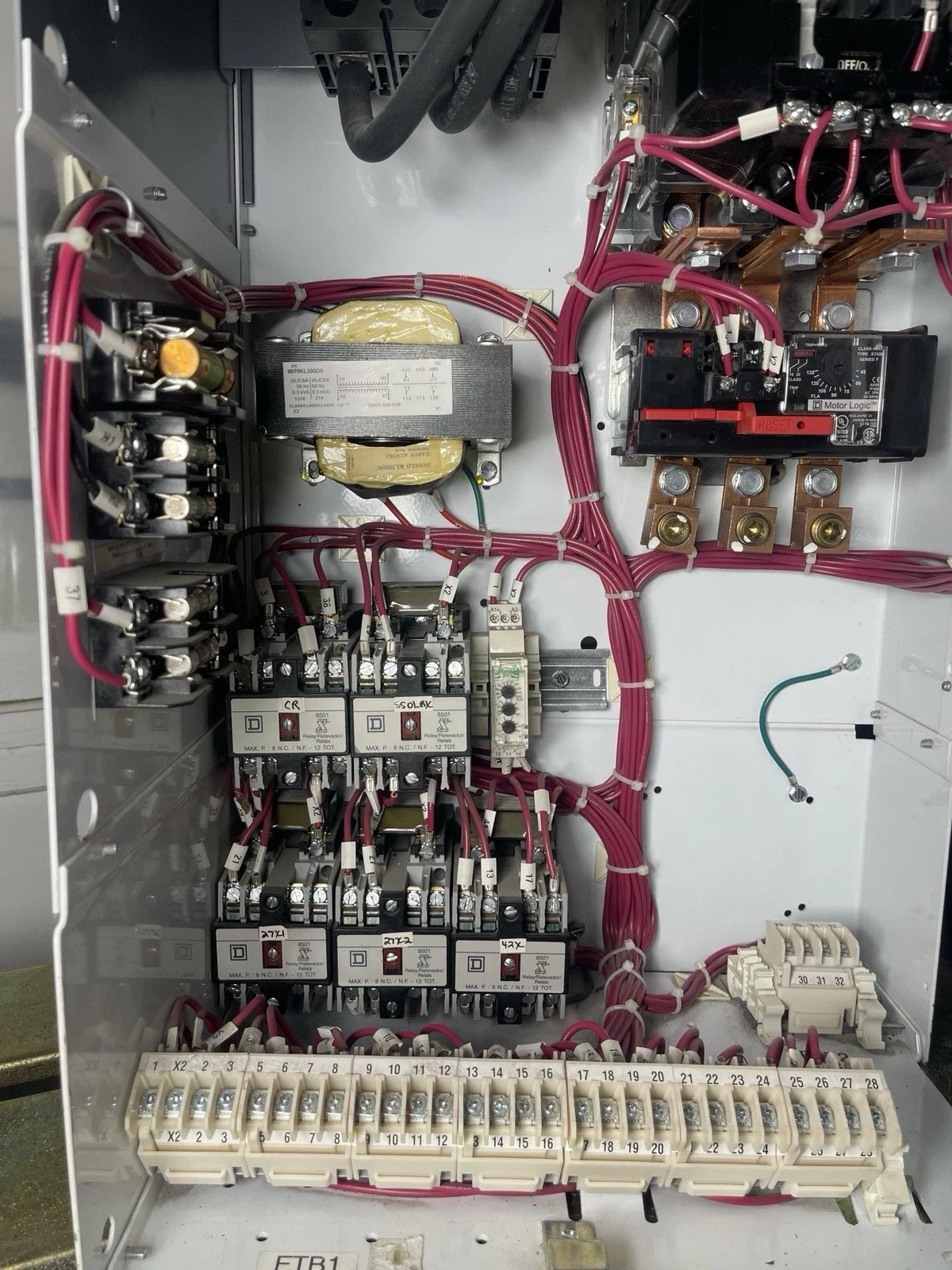

Terminals: Labeled terminal blocks X1–X32 (FTB1 & FTB2), multiple relay bases (CR, 9070, etc.)
Voltage: 480 V, 3-phase (per labels and wiring)

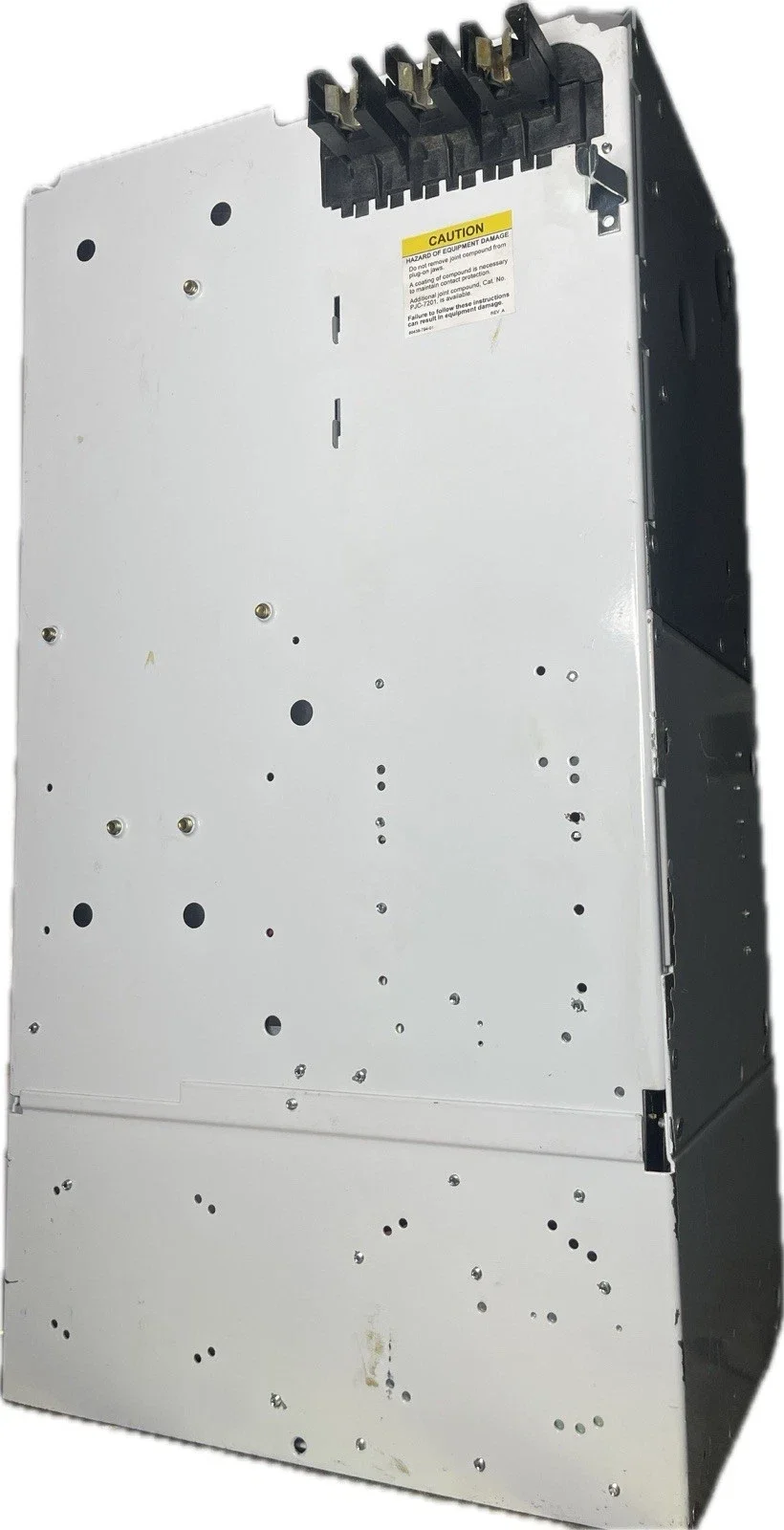

Enclosure: Gray plug-in bucket with plug-on jaws and caution label for joint compound (Cat. No. PJC-7201)
NEMA Size 4 Horsepower Ratings (for the 8536SFO1H30 contactor):
200 V: 40 HP
230 V: 50 HP
460 V / 480 V: 100 HP
575 V: 100 HP
Condition: Used surplus – good cosmetic condition, functional per prior service, wiring and tags intact, minor dust and storage marks present. Recommend full electrical testing, contact cleaning, and insulation resistance checks before installation.
Applications
Motor starting and control in existing Square D Model 6 MCC sections
Replacement unit for NEMA Size 4 starters (up to 100 HP at 480 V)
MRO spares or upgrades in industrial facilities
