Square D Model 6 Combo NEMA Size 2 MCC Bucket w HJL36050M72 Breaker 20” Used

$1,300.00

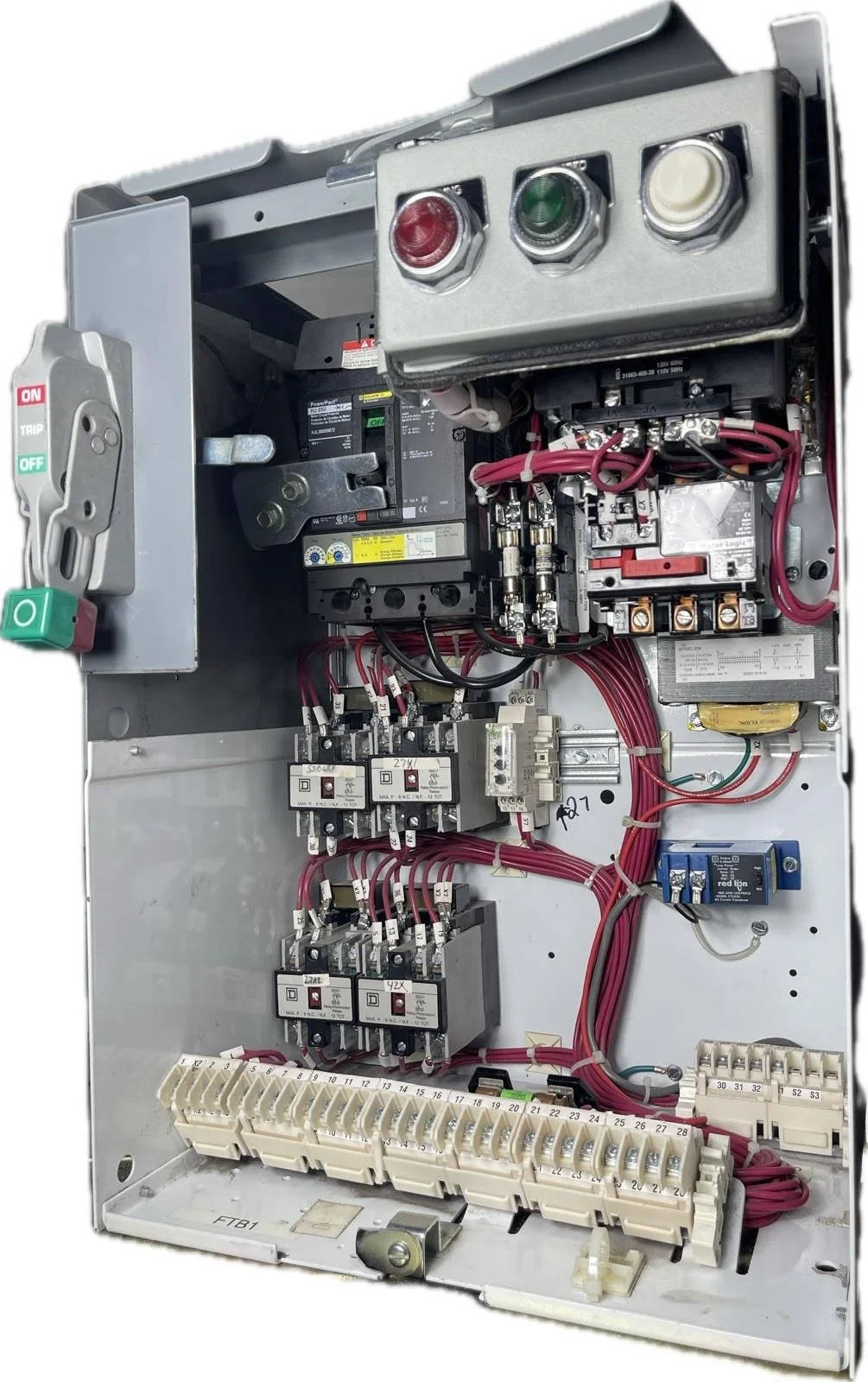

This Square D Model 6 Motor Control Center (MCC) Bucket is a fully equipped Size 2 combination starter assembly rated for up to 25 HP at 480 V.

Built for industrial reliability, it features a PowerPact H-frame breaker 50 A, NEMA Size 2 contactor, Motor Logic overload relay, control transformer, and pre-wired terminal blocks for plug-and-play integration into a Model 6 MCC lineup.

This particular unit is factory-wired with auxiliary control relays, pilot lights, and labeled wiring, ideal for replacements or upgrades in manufacturing, HVAC, or process-control systems.

Key Features

  • Manufacturer: Square D / Schneider Electric

  • Model Series: Model 6 MCC – Combination Starter

  • NEMA Size: 2 (≈ 15–25 HP @ 480 V)

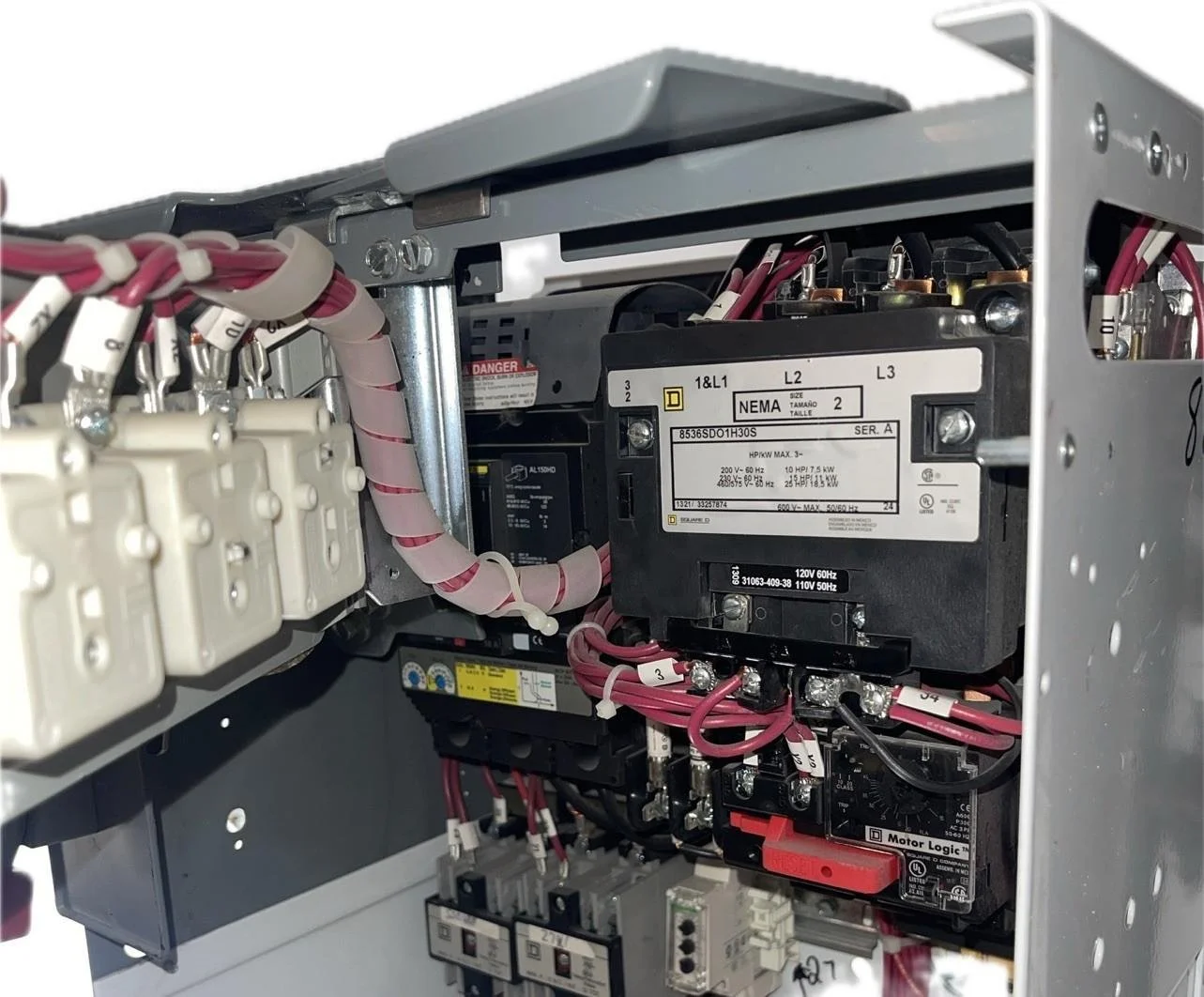

  • Contactor: 8536SD01H30 – NEMA Size 2

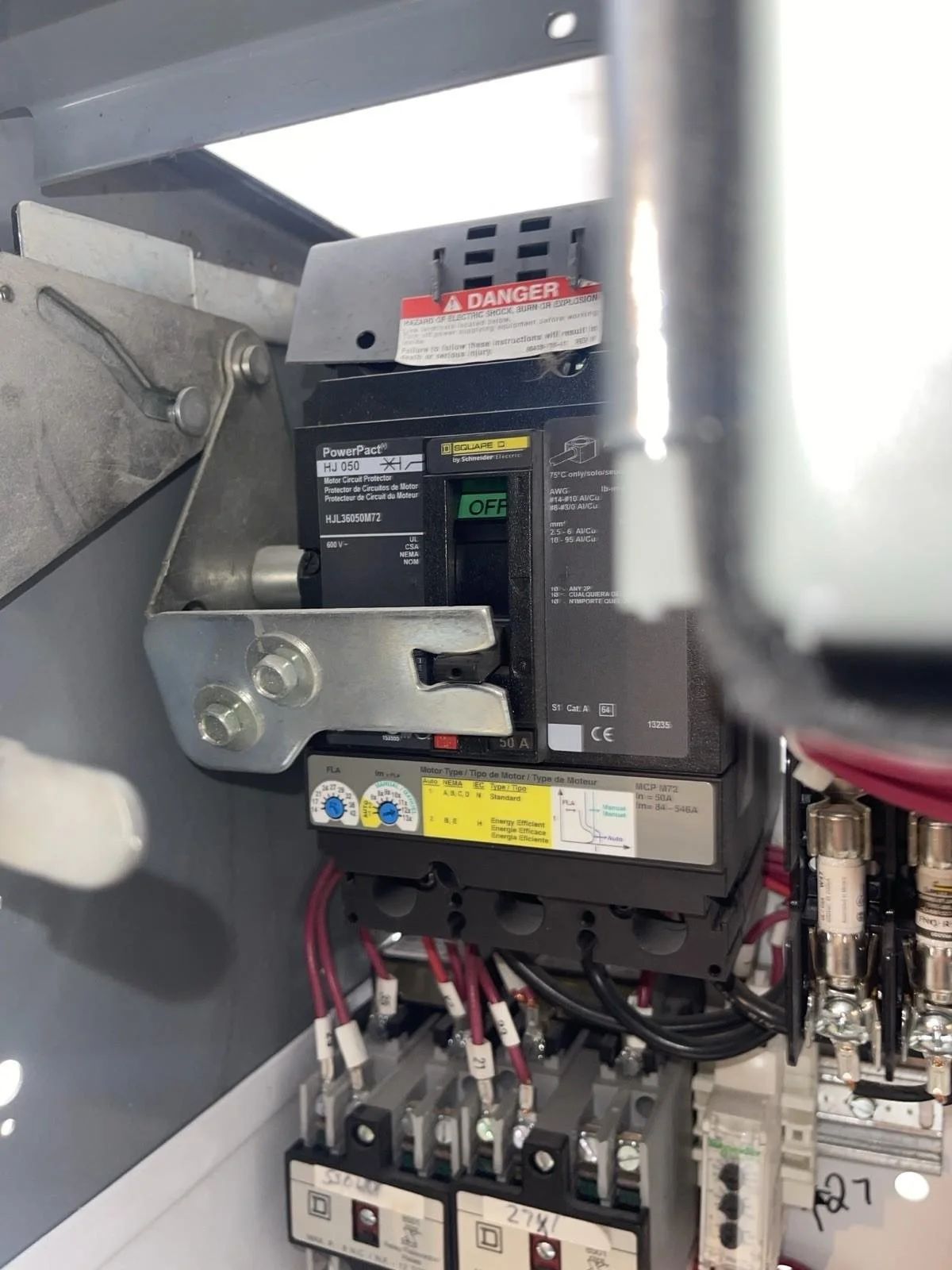

  • Breaker: PowerPact H Frame HJ 050 HJL36050M72 50 A

  • Overload Relay: Motor Logic Solid State, Adjustable FLC

  • Control Transformer: Square D 9070 Series, 480 → 120 V Control Power

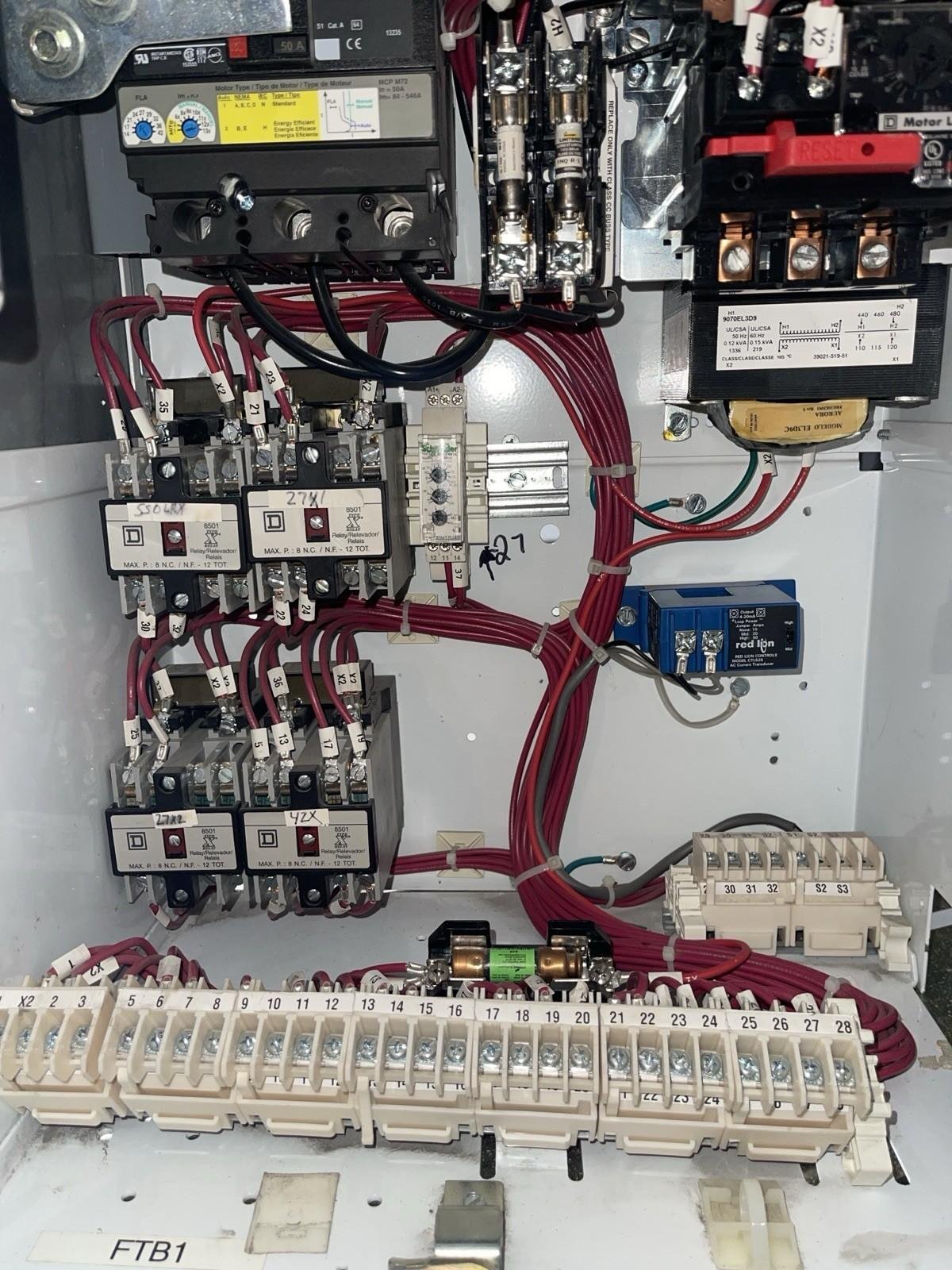

  • Auxiliary Components: (3) Square D 8501 Relays, Pilot Lights (Red/Green/White), Terminal Strip FTB1

  • Voltage Rating: 600 V max AC

  • Dimensions: L 11" x W 14" x H 20 1/2"

  • Condition: Used – Clean, inspected; removed from working environment

Applications

  • Industrial motor control systems

  • Pump or fan control panels

  • Process equipment or HVAC MCC lineups

  • Manufacturing or water-treatment facilities
