Overview

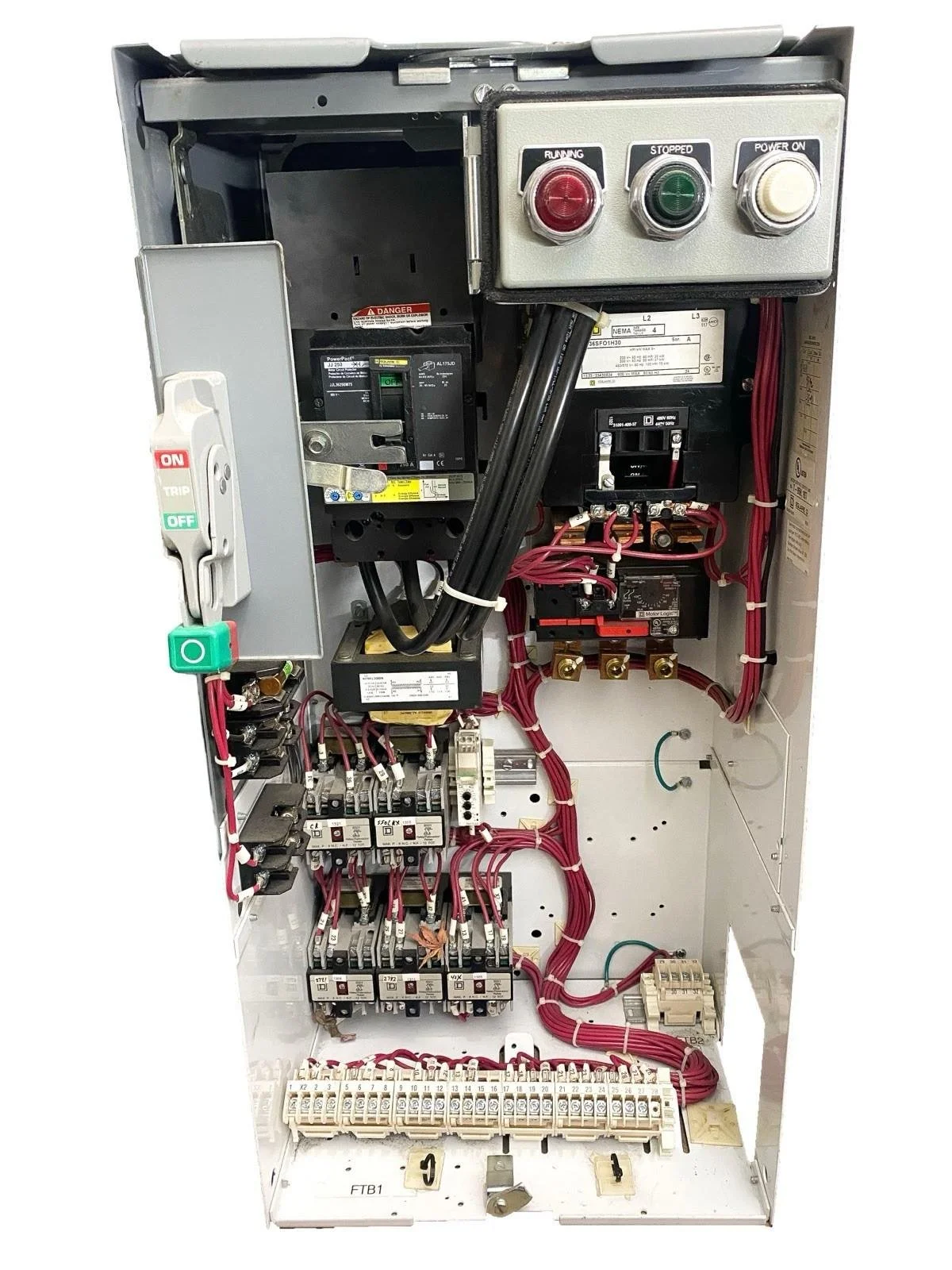

This listing is for a Square D / Schneider Electric Motor Control Center (MCC) Motor Starter Bucket equipped with a Square D PowerPact JJ250 Motor Circuit Protector (250A) and a Square D NEMA Size 4 motor starter. This is a complete bucket assembly with pilot lights, control transformer, overload protection, terminal blocks, and wiring as shown.
Removed from an industrial environment and sold as a ready-to-use replacement/spare MCC bucket (please confirm lineup compatibility before purchase).
⸻
Key Specifications
• Manufacturer: Square D / Schneider Electric
• MCC Bucket Type: Motor Starter Bucket
• Main Protection: Motor Circuit Protector (MCP)

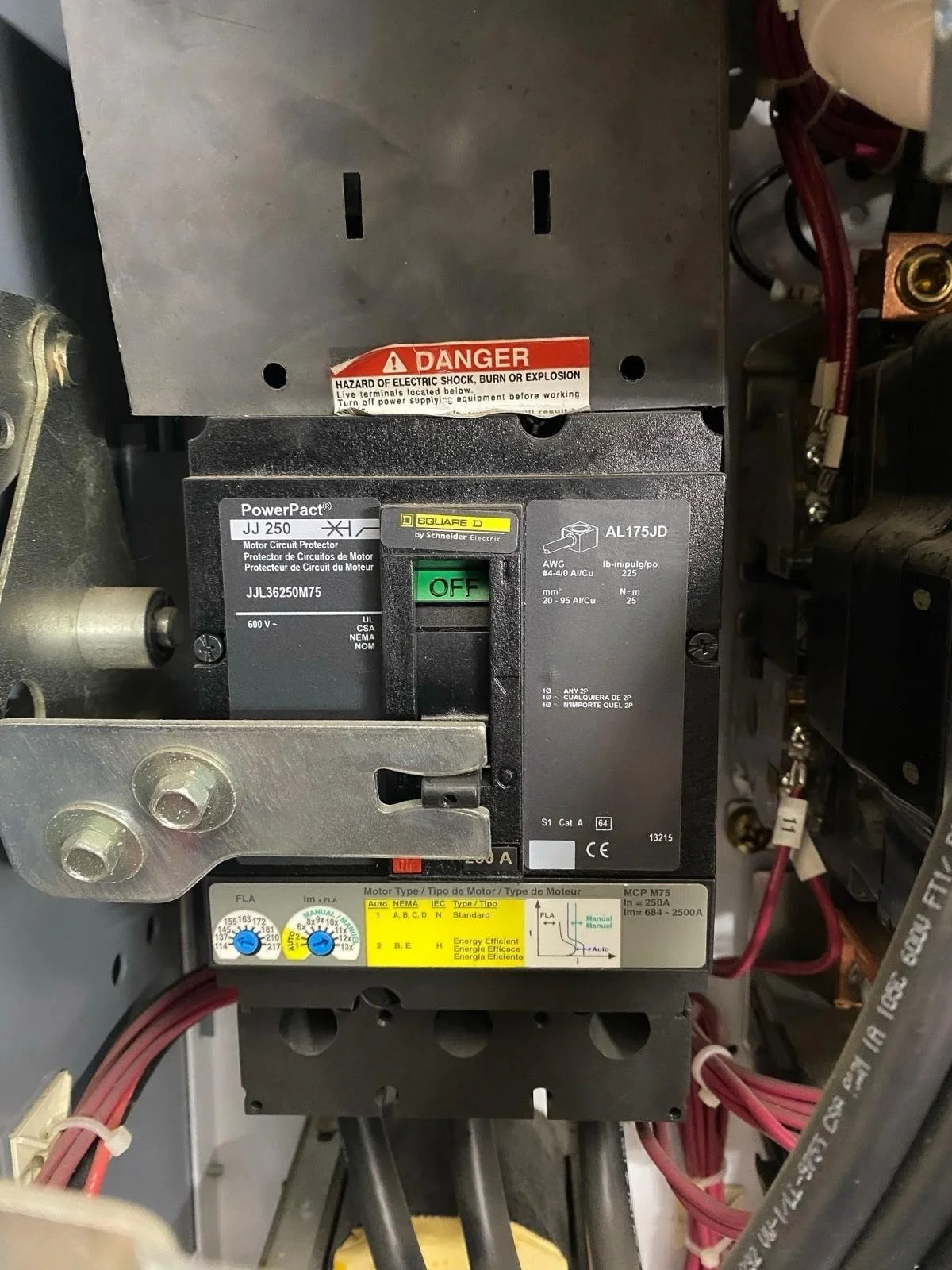

• Breaker Series: Square D PowerPact JJ250
• MCP Model: JJL36250M75
• Amps: 250A
• Lug Kit: AL175JD
• Starter Size: NEMA Size 4
• Starter Model: 8536SFO1H30 (Ser. A)
• Frequency: 50/60 Hz
• Pilot Lights / Station: “Running / Stopped / Power On” indicators (as shown)
Dimensions: L 11" x W 14" x 29 3/8" approx.
⸻

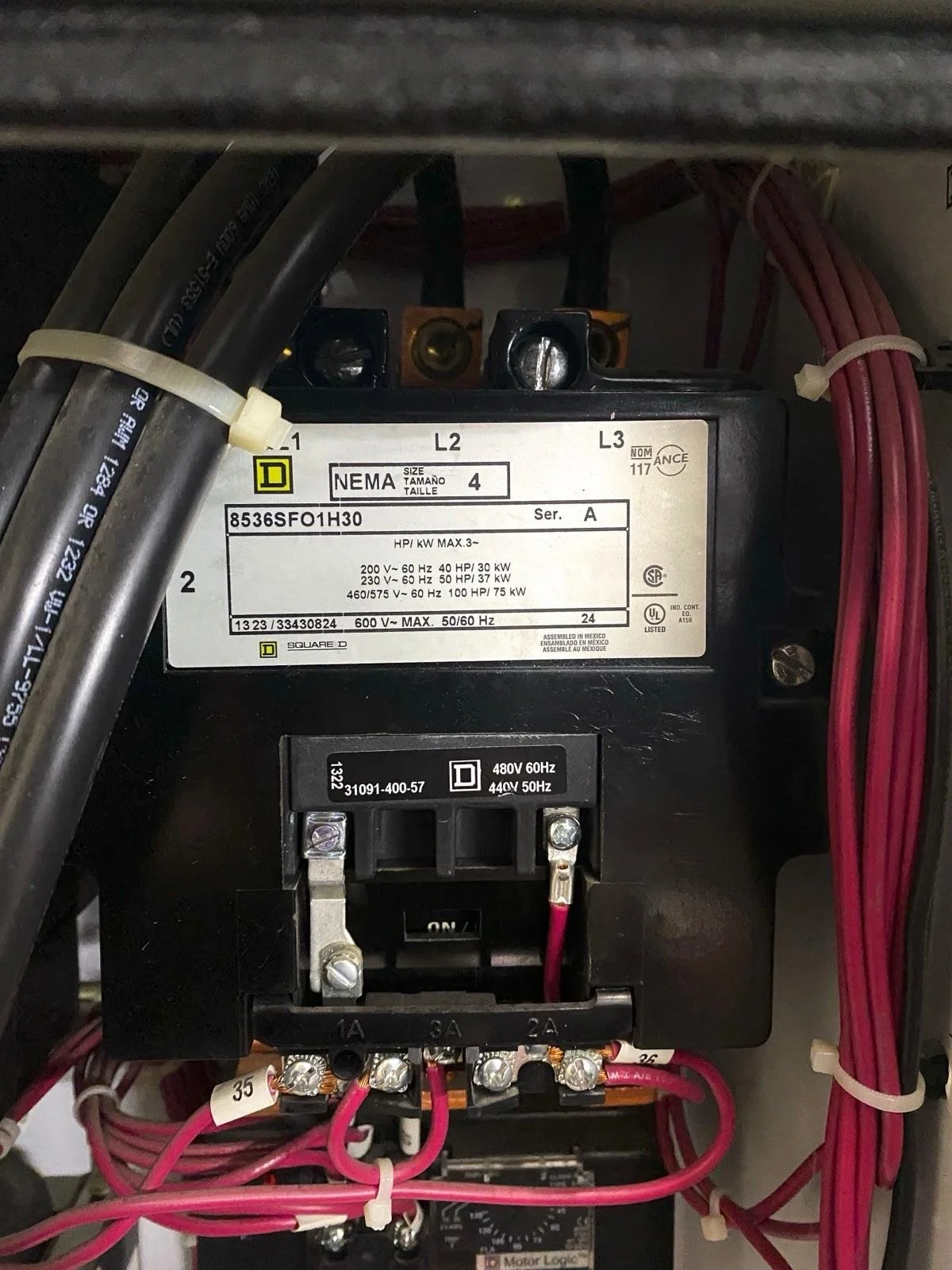

Motor Starter Ratings (Per Nameplate)
• 200V ~ 60Hz: 40 HP / 30 kW
• 230V ~ 60Hz: 50 HP / 37 kW
• 460/575V ~ 60Hz: 100 HP / 75 kW
⸻

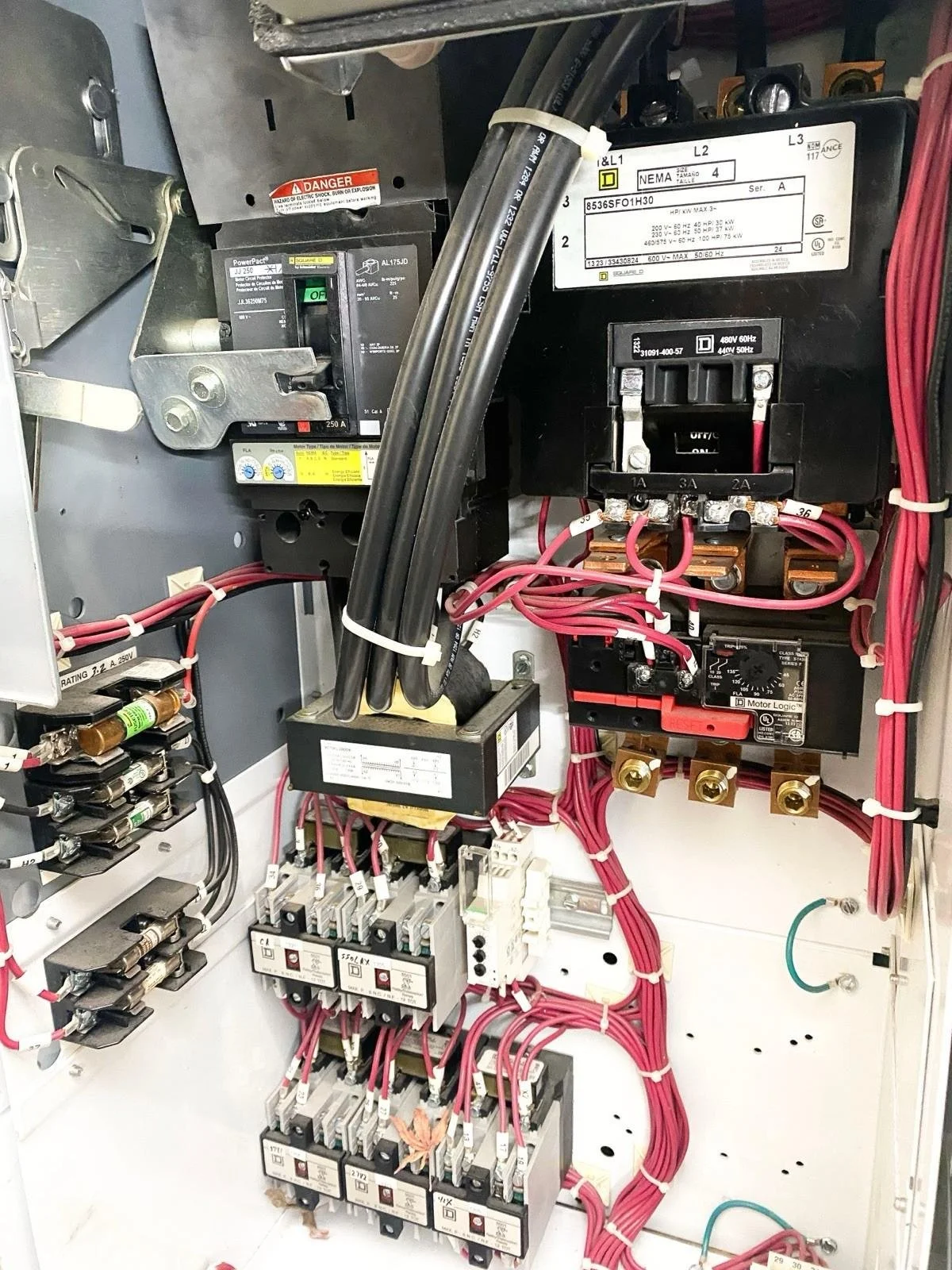

Internal Components
Includes major MCC starter components as pictured:
• Square D NEMA Size 4 starter / contactor
• Overload / protection module (Motor Logic unit installed)
• Control transformer
• Terminal blocks / field wiring terminals
• Factory-labeled control wiring
• Pilot lights / control station
⸻
Condition
• Used
• Pulled from working environment
• Not tested after removal
• Cosmetic wear consistent with industrial service
• No visible burn marks, melting, or missing major components
Sold as-is, exactly as shown in photos.
⸻
What’s Included
• Square D MCC motor starter bucket assembly
• PowerPact JJ250 MCP installed (JJL36250M75)
• NEMA Size 4 starter installed (8536SFO1H30)
• All internal components and wiring shown
No manuals, extra parts, or accessories included unless pictured.
